About the product

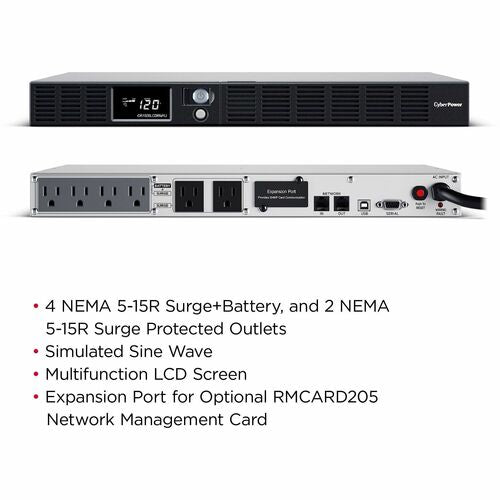

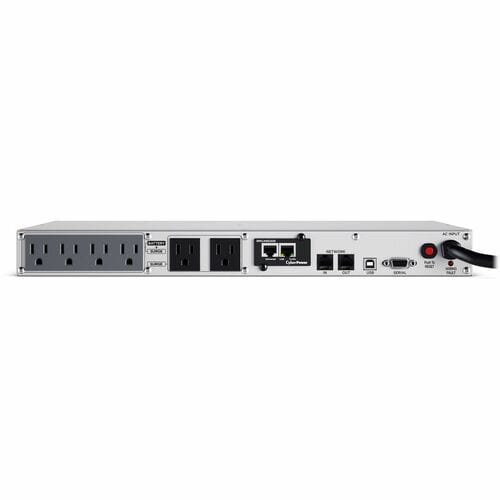

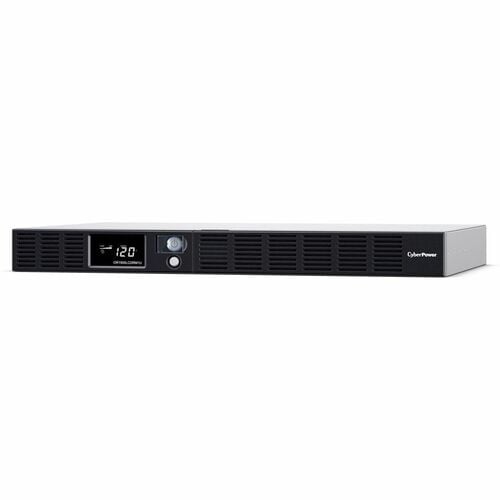

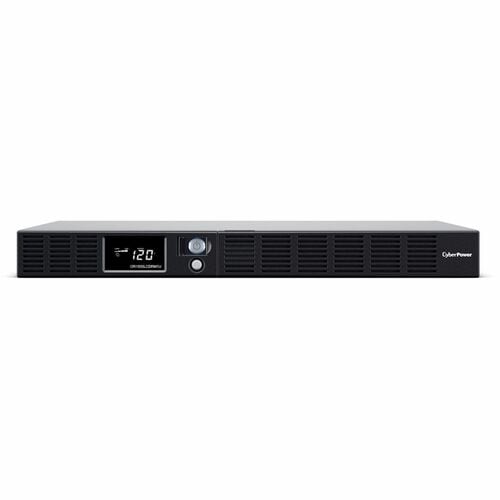

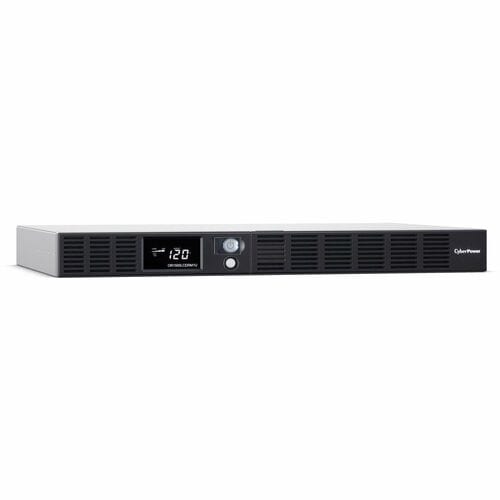

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- Capacity: 1500 VA / 900 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 6 × NEMA 5-15R
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
Technical Specifications
| Controls/Indicators | |
| Status Indicators |
|
| Management | |
| Network Management | SNMP Manageable |
| Alarm | Battery Mode |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| Additional Information |
|
| Software Included | PowerPanel® Business |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 33 lb (14968.55 g) |
| Form Factor | Rack-mountable |

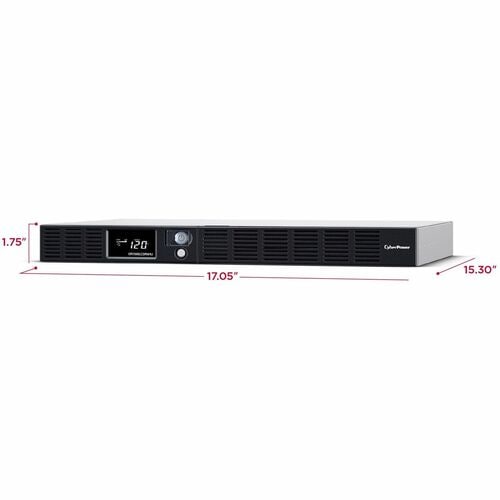

| Length | 15.30" (388.62 mm) |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.05" (433.07 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OR1500LCDRM1U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OR1500LCDRM1U |
| Product Name | Smart App OR1500LCDRM1U 1500VA UPS |
| Product Series | Smart App LCD UPS |
| Brand Name | CyberPower |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1150 J |
| Waveform Type | Simulated Sine Wave |
| Input Voltage Range | 90 V AC - 140 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 1.50 kVA |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |

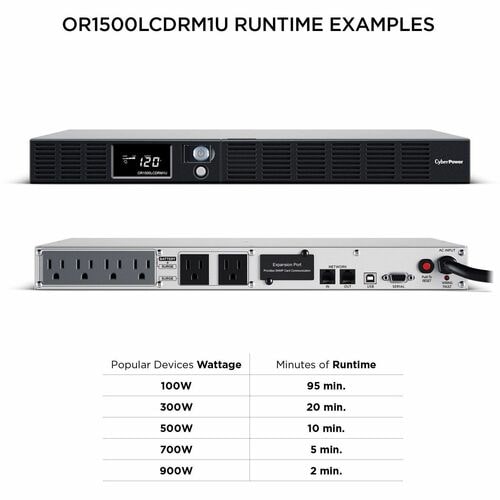

| Backup/Run Time (Half Load) | 11 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 6 V DC |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Dataline Protection | RJ-11 |
| RJ-45 | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Design |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 8 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
