About the product

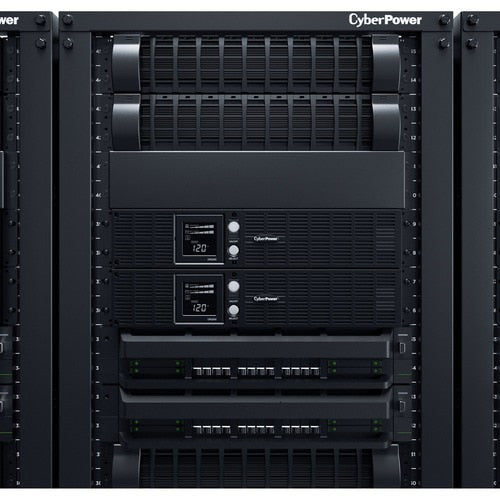

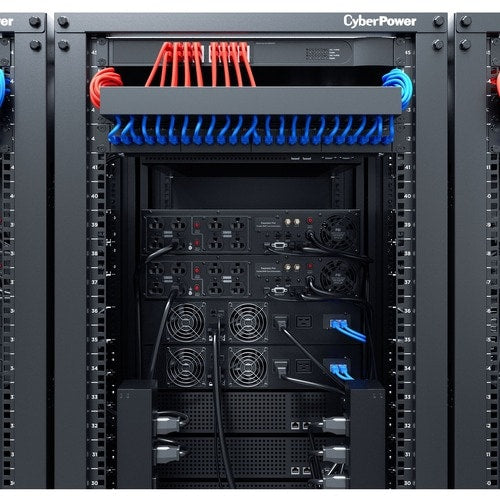

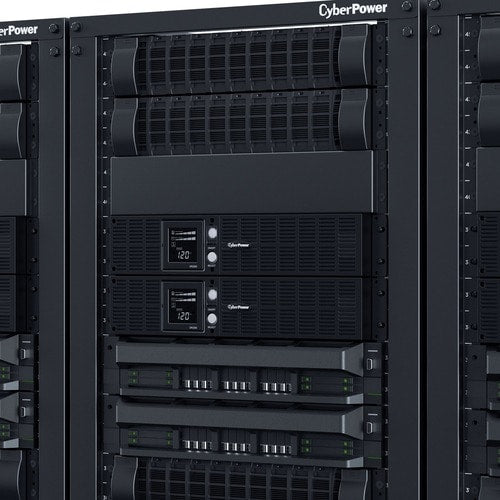

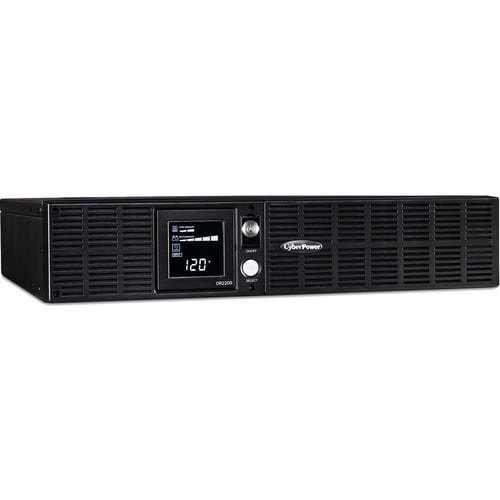

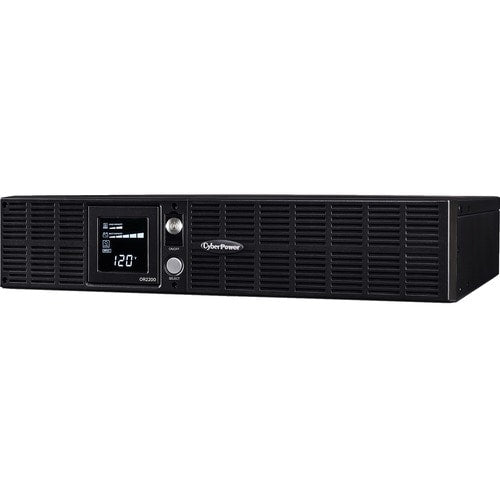

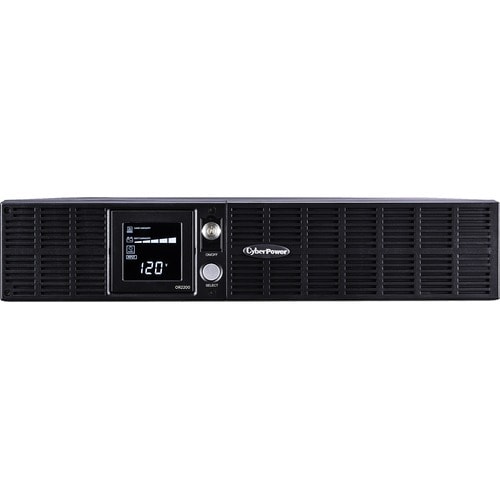

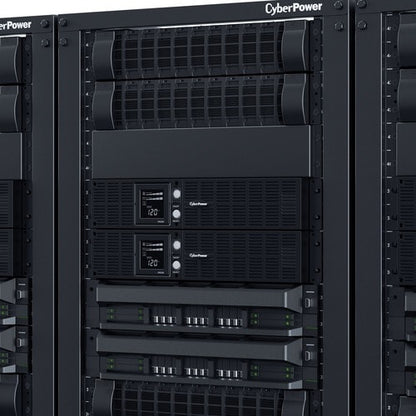

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App LCD OR2200LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for office servers, corporate and department networks, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200LCDRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- Capacity: 2000 VA / 1320 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%

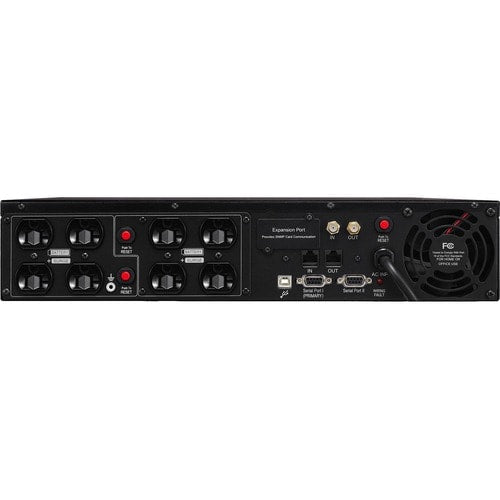

- Plug type & cord: NEMA 5-20P (right angle), 10 ft. cord
- Outlet types: 8 × NEMA 5-20R
- Communication: USB, Serial, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LCD : Multifunction LCD |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | Battery Mode |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1840 J |
| Waveform Type | Simulated Sine Wave |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 2 kVA |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 13 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OR2200LCDRT2U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OR2200LCDRT2U |
| Product Name | Smart App Intelligent LCD OR2200LCDRT2U 2200VA UPS LCD RT |
| Product Series | Smart App LCD UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel Business Edition UPS Management |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 52.70 lb (23904.32 g) |

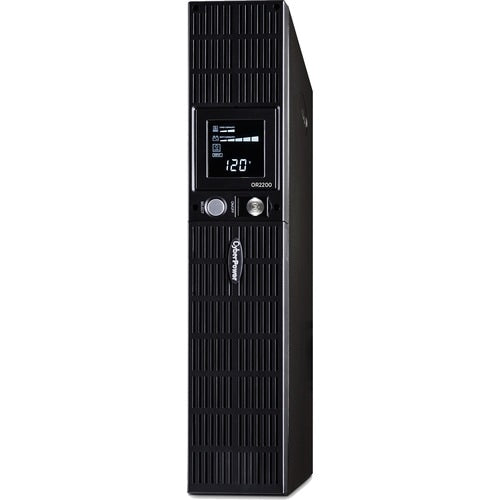

| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 15.75" (400.05 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Dataline Protection | RJ-45 |
| RJ-11 | |
| Overload Protection | Yes |
| Protection Type | Surge |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 10 ms |
| Receptacle Detail | 8 x NEMA 5-20R |
