Startech 4-Port Rj45 Gigabit Ocp 3.0 Server Network Card W/Intel I

Name: Startech 4-Port Rj45 Gigabit Ocp 3.0 Server Network Card W/Intel I
Brand: Startech
SKU: T325613
Price: 504.86 CAD
Availability: InStock

$504.86 CAD

~~$555.35 CAD~~ $504.86 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

Startech 4-Port Rj45 Gigabit Ocp 3.0 Server Network Card W/Intel I350-Am4, Sff 4C+ Compatible

VPN:OR41GI-NETWORK-CARD SKU:T325613 UPC:65030908146

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Startech 4-Port Rj45 Gigabit Ocp 3.0 Server Network Card W/Intel I

About the product

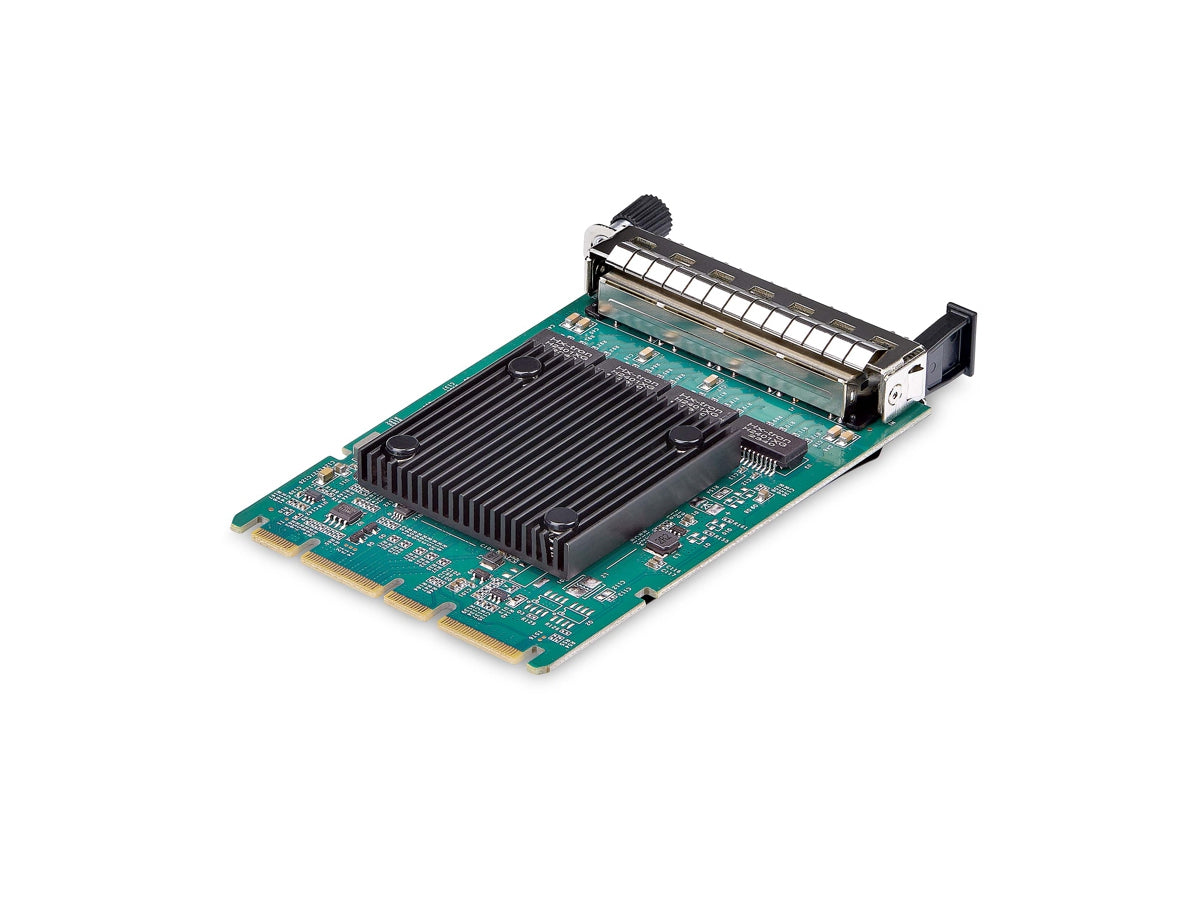

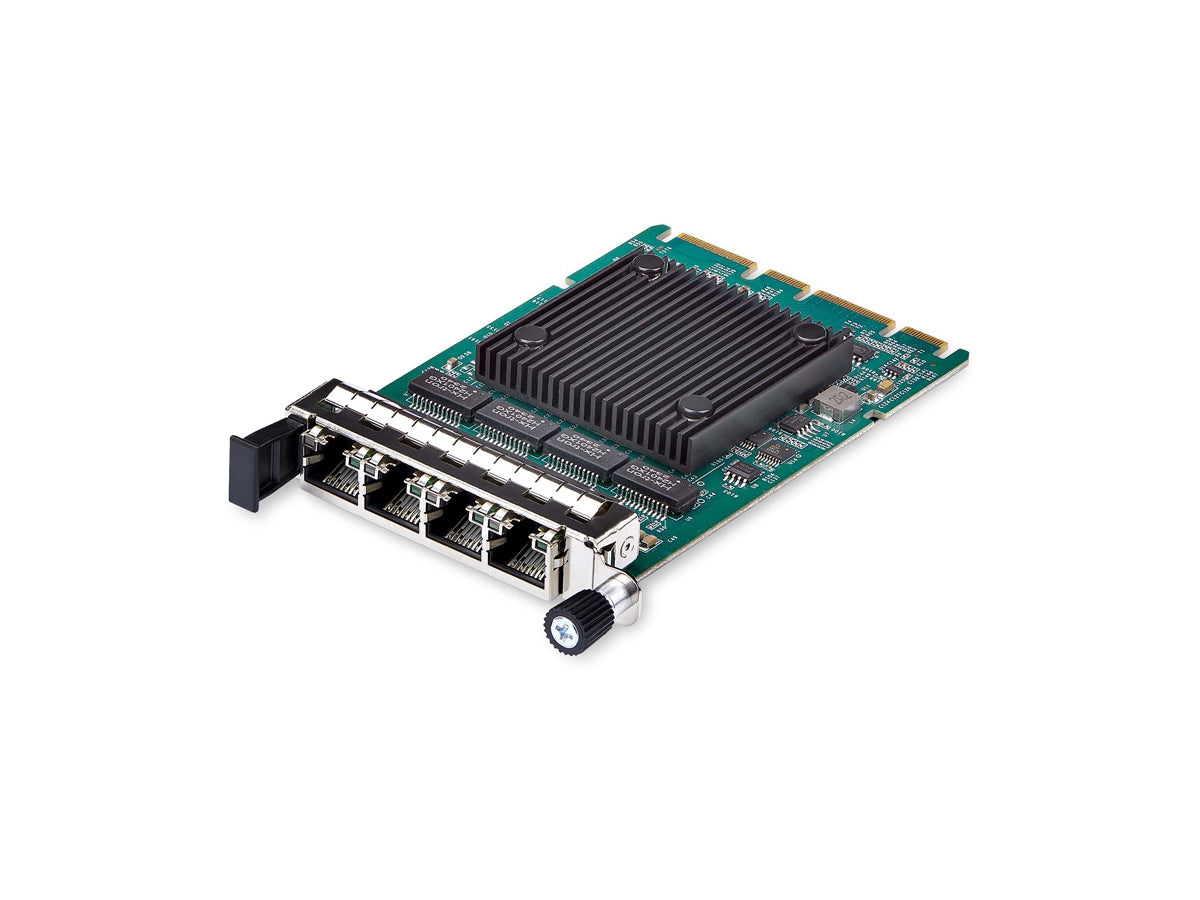

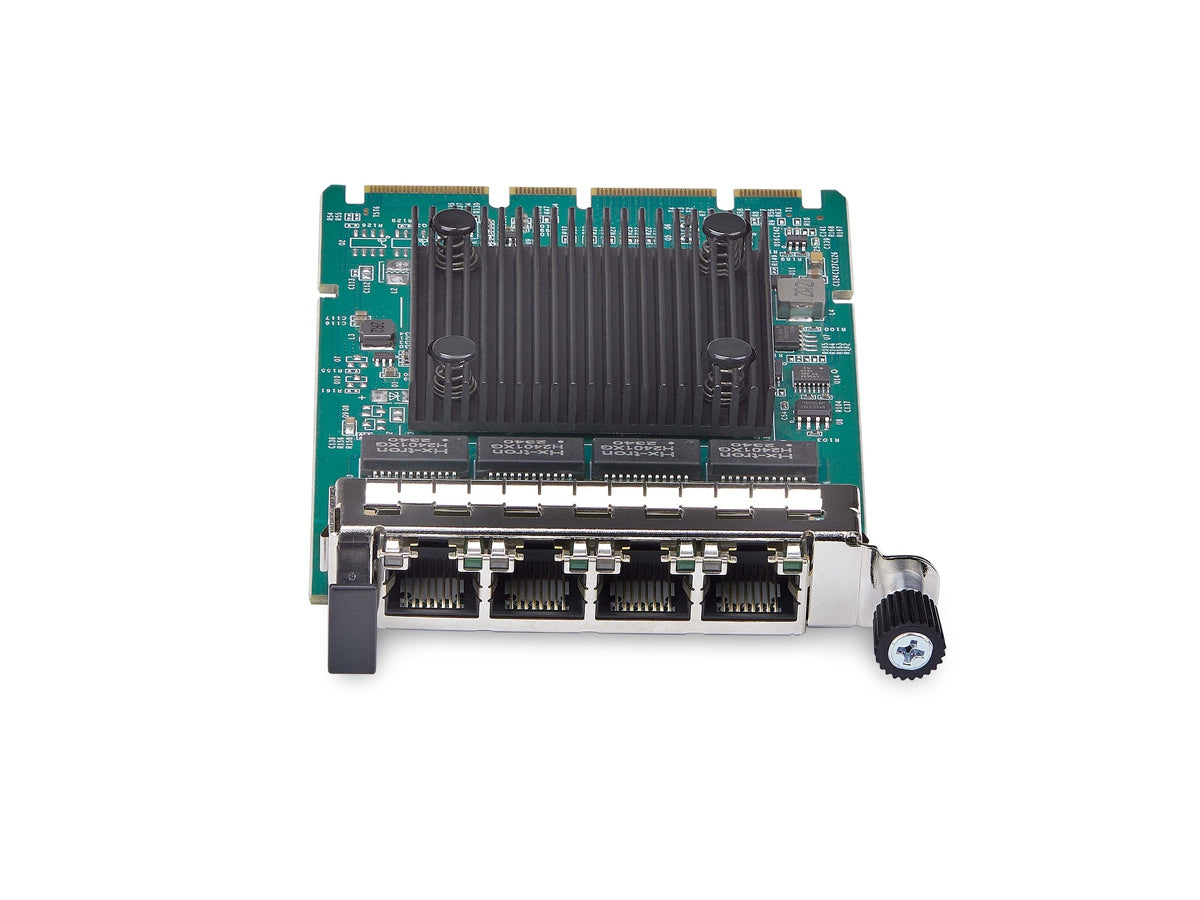

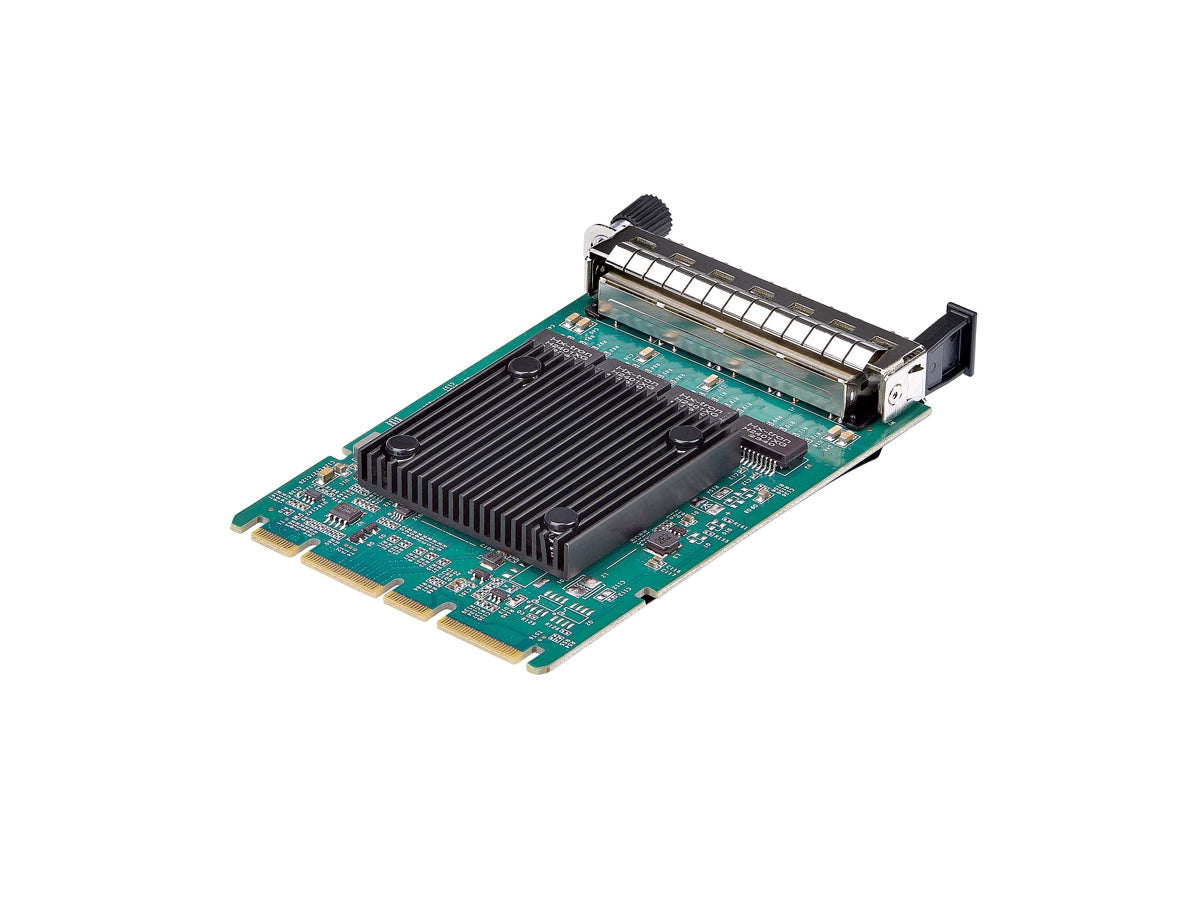

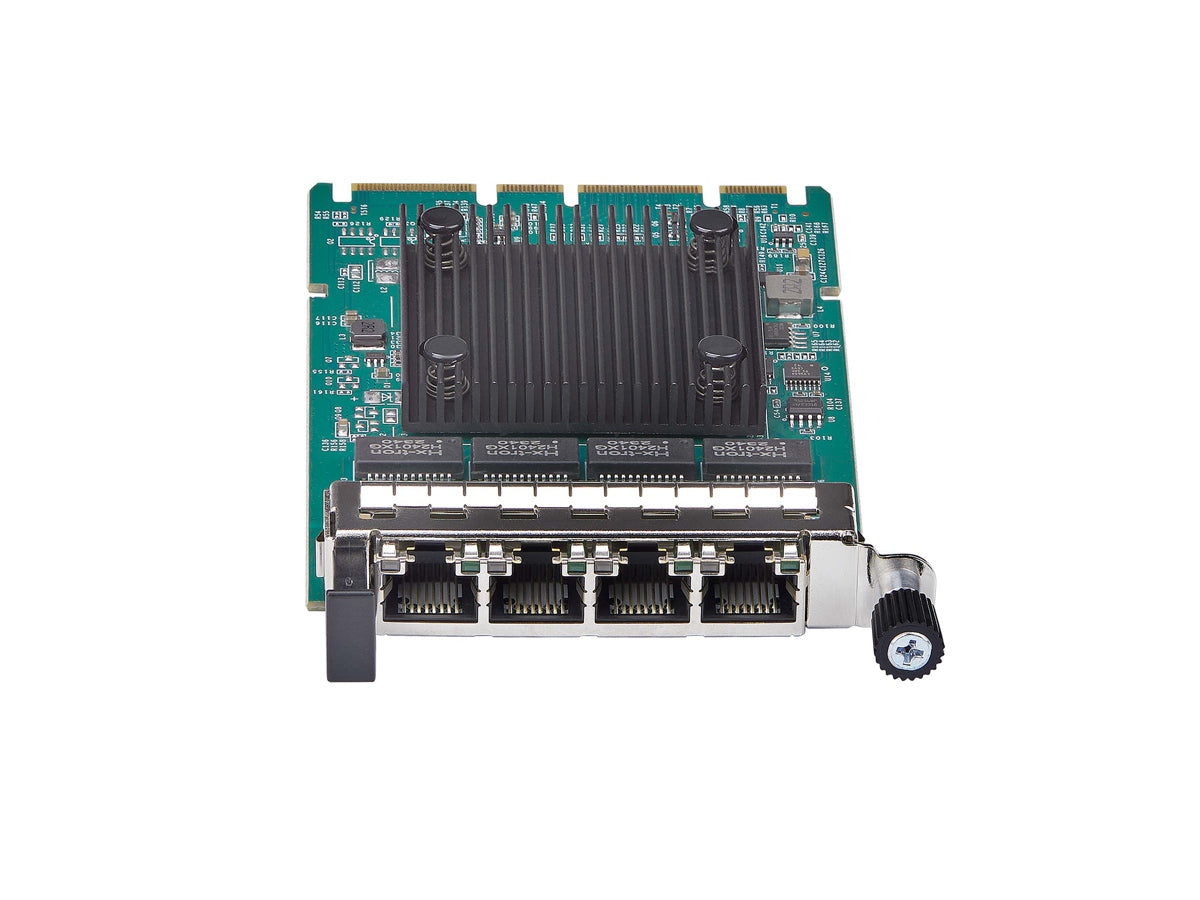

This 4-port RJ45 1Gbps OCP 3.0 network interface card (NIC) features an Intel i350-AM4 chip for reliable network connectivity and robust data transfer capabilities. It optimizes network efficiency with variable speed options and 9K jumbo frames to reduce packet overhead while leveraging existing Cat5e/Cat6 cabling up to 100m. Designed for the W1 form factor and SFF 4C+ standards, it offers hot-swappable field replaceable units (FRUs) for simplified installation and maintenance. The network adapter is compatible with both TSFF and SFF systems expanding compatibility with different server types. Advanced features include Intel vPro for remote management, PXE boot for faster deployment, VLAN support for improved traffic management, and Single Root I/O Virtualization (SR-IOV) for enhanced virtual machine performance. LAN transformers provide reliable communications up to 100m, even when using Cat5e cabling. This network adapter card is backed for two-years, including free lifetime 24/5 multi-lingual technical assistance.

Technical Specifications

Primary Information
Product Description:	StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card, Intel I350 - network adapter - OCP 3.0 - Gigabit Ethernet x 4
Device Type:	Network adapter
Form Factor:	Plug-in card
Interface (Bus) Type:	Open Compute Project mezzanine (OCP) 3.0
PCI Specification Revision:	PCIe 3.0
Ports:	Gigabit Ethernet x 4
Dimensions (WxDxH):	3.3 in x 5.2 in x 0.6 in
Weight:	3.53 oz
Cabling Type:	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol:	10Mb LAN, 100Mb LAN, 1GbE
Max Transfer Distance:	330 ft
Data Transfer Rate:	1 Gbps
Capacity:	Jumbo frame size: 9000
Processor:	Intel I350-AM4
Compliant Standards:	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1AX, IEEE 802.1x, IEEE P802.3az, SFF-TA-1002
Color:	Silver, green
System Requirements:	Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 2.4.x or later (LTS versions only), VMware ESXi 7.x
Manufacturer Warranty:	2-year warranty
Designed For:	P/N: 45PATCH10BK, 45PATCH6BK, N6PATCH10BK, N6PATCH5BK, N6PATCH5BL
General
Device Type:	Network adapter
Form Factor:	Plug-in card
Interface (Bus) Type:	Open Compute Project mezzanine (OCP) 3.0
PCI Specification Revision:	PCIe 3.0
Networking
Ports:	Gigabit Ethernet x 4
Connectivity Technology:	Wired
Cabling Type:	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate:	1 Gbps
Max Transfer Distance:	330 ft
Capacity:	Jumbo frame size: 9000
Status Indicators:	Link/activity, link/speed
Features:	Intel vPro Technology support, PXE boot, VLAN support, SR-IOV, hot swappable, EEE, auto-negotiation, WOL, built-in heatsink, flow control, QoS, Link Aggregation, auto-uplink (auto MDI/MDI-X), full duplex capability, promiscuous mode, bus powered
Compliant Standards:	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1AX, IEEE 802.1x, IEEE P802.3az, SFF-TA-1002
Processor / Memory
Processor:	Intel I350-AM4
Expansion / Connectivity
Interfaces:	4 x 1000Base-T - RJ-45
Miscellaneous
Compliant Standards:	WEEE, RoHS
Color:	Silver, green
Power
Power Consumption Operational:	4.65 Watt
