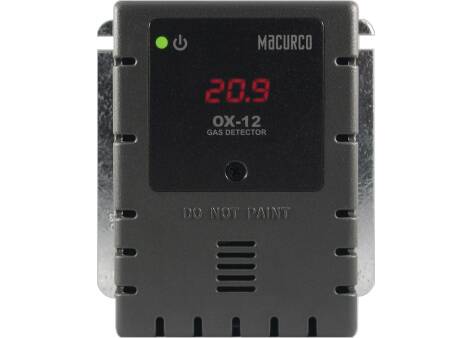

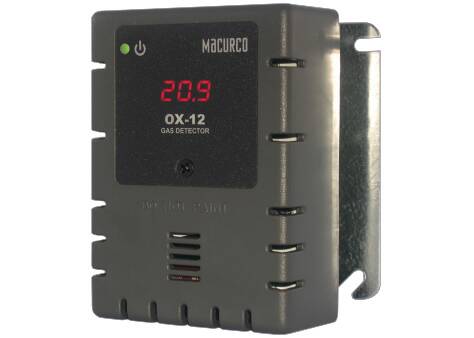

Macurco Oxygen O2 Fixed Gas Detector Controller Transducer, 100-240VAC, Grey Overview
The Macurco 12 Series fixed gas detectors provide life-saving solutions to protect people and property. These fixed gas detectors are designed for low-level detection, mitigation, and notification. Let these detectors do the work for you by shutting off valves, turning on fans, engaging horns and strobes, and providing notification to fire panels and building automation systems when gases reach vital limits.
Macurco Oxygen O2 Gas Detector Controller Transducer Features
- Easy installation to 4x4 electrical boxes via mud plate
- User-selectable settings (Default to industry standards) via a two-button interface
- 5 A SPDT fan relay, 0.5A alarm relay to control fans, valves, louvers, horn, and strobes
- 4-20mA output to control VFDs and send to BMS
- LED display to show gas concentrations easily
- End-of-life notification
- Field calibration kits available
Applications
- Parking garages
- Mechanical rooms
- Restaurants
- Battery charging stations
- Breweries
- Storage facilities
- Loading docks
- Warehouses
- Firehouses & ambulance bays
- Refrigeration facilities
- Vehicle repair facilities
- Bus depots
Macurco Oxygen O2 Gas Detector Controller Transducer Specifications
- Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm)
- Weight: 1 pound (0.45 kg)
- Voltage/Current:
- Power: 100-240 VAC (50 to 60 HZ)
- Current: 1.0 A MAX
- Operating Temperature:
- -4°F to 122°F (-20°C to 50°C)
- CO2 Detectors: 32°F to 122°F (0°C to 50°C)
- Ambient Humidity: 10-90% RH non-condensing
- Display: LED (can turn on/off)
- Current Loop:
- Analog: 4-20mA
- MRS-485: Digital Modbus adapter
- BRS-485: BMS communication
- Mounting: 4” x 4” electrical box
- Relays:
- 5A Fan relay & 0.5A alarm relay
- User adjustable settings
- Certifications: ETL Listed (*See detector manual for additional certifications)
- Warranty: Two-year limited warranty
Technical Specifications
Macurco Oxygen O2 Fixed Gas Detector Controller Transducer, 100-240VAC, Grey Overview
The Macurco 12 Series fixed gas detectors provide life-saving solutions to protect people and property. These fixed gas detectors are designed for low-level detection, mitigation, and notification. Let these detectors do the work for you by shutting off valves, turning on fans, engaging horns and strobes, and providing notification to fire panels and building automation systems when gases reach vital limits.
Macurco Oxygen O2 Gas Detector Controller Transducer Features
- Easy installation to 4x4 electrical boxes via mud plate
- User-selectable settings (Default to industry standards) via a two-button interface
- 5 A SPDT fan relay, 0.5A alarm relay to control fans, valves, louvers, horn, and strobes
- 4-20mA output to control VFDs and send to BMS
- LED display to show gas concentrations easily
- End-of-life notification
- Field calibration kits available
Applications
- Parking garages
- Mechanical rooms
- Restaurants
- Battery charging stations
- Breweries
- Storage facilities
- Loading docks
- Warehouses
- Firehouses & ambulance bays
- Refrigeration facilities
- Vehicle repair facilities
- Bus depots
Macurco Oxygen O2 Gas Detector Controller Transducer Specifications
- Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm)
- Weight: 1 pound (0.45 kg)
- Voltage/Current:
- Power: 100-240 VAC (50 to 60 HZ)
- Current: 1.0 A MAX
- Operating Temperature:
- -4°F to 122°F (-20°C to 50°C)
- CO2 Detectors: 32°F to 122°F (0°C to 50°C)
- Ambient Humidity: 10-90% RH non-condensing
- Display: LED (can turn on/off)
- Current Loop:
- Analog: 4-20mA
- MRS-485: Digital Modbus adapter
- BRS-485: BMS communication
- Mounting: 4” x 4” electrical box
- Relays:
- 5A Fan relay & 0.5A alarm relay
- User adjustable settings
- Certifications: ETL Listed (*See detector manual for additional certifications)
- Warranty: Two-year limited warranty
