Tripp Lite by Eaton P036

Name: Tripp Lite by Eaton P036
Brand: Tripp Lite
SKU: CBPO2075A1
Price: 20.65 CAD
Availability: InStock

$20.65 CAD

~~$23.75 CAD~~ $20.65 CAD

-13% OFF Ask for quote

Shipping calculated at checkout.

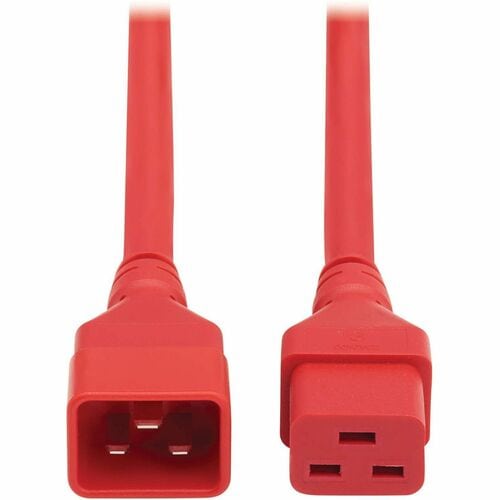

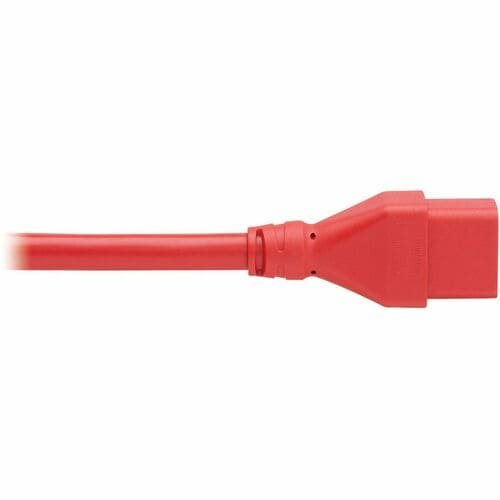

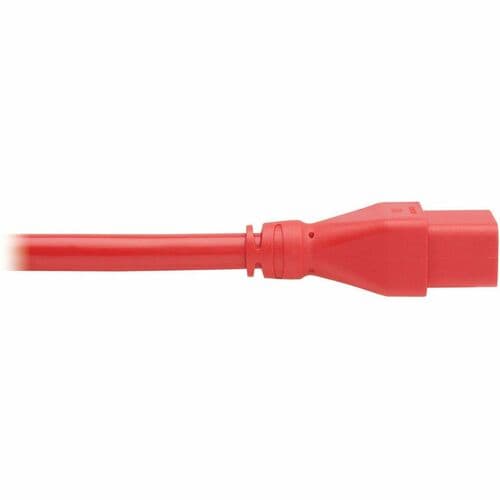

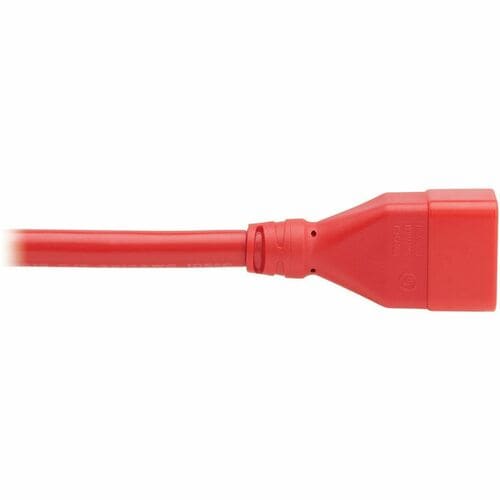

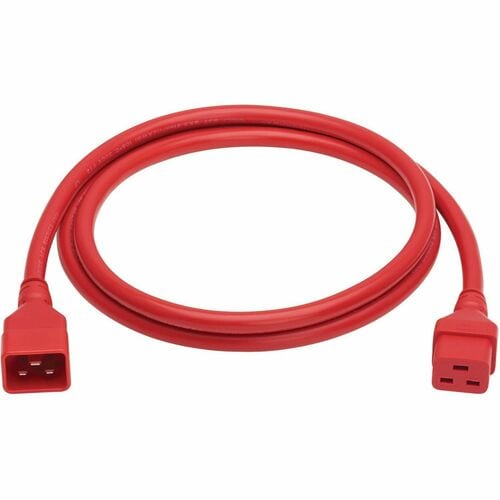

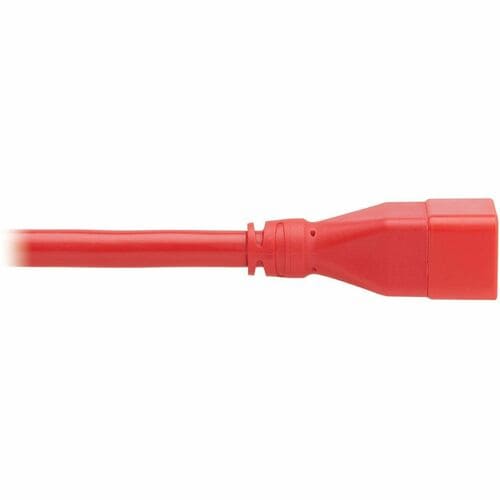

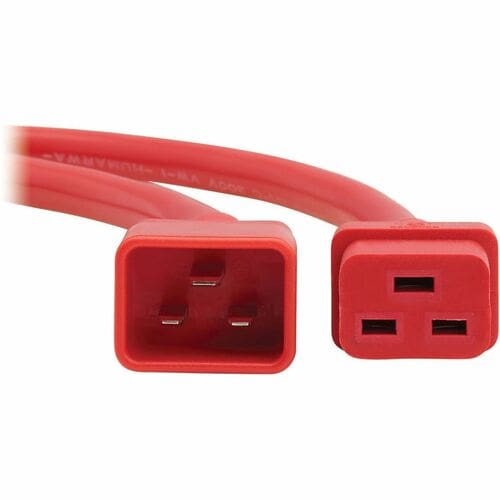

Tripp Lite by Eaton P036-006-ARD Power Extension Cord - For Server Chassis, Server, Router, Network Device, UPS, PDU, Network Switch - 12 Gauge - 250 V AC / 20 A - Red - 6 ft (1.83 m) Cord Length - IEC 60320 C20 / IEC 60320 C19 - North America

VPN:P036-006-ARD SKU:CBPO2075A1 CPU: 0037332289018","VPN-test"

With 250 V AC cord, never run out of power and keep your device operational at all timesExtends the power source where electric sockets are far awayHelps you keep your device charged, up and running","desc-text":null}]

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

OverviewFeatures | 20A C20-to-C19 Power Cable for Network Devices That Require a Heavy-Gauge ConnectionThis heavy-duty extension cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This cord can be used to connect a server

router, network switch or blade server enclosure to a UPS system or PDU or replace or upgrade the standard power cord provided by the device's manufacturer. The six-foot (1.8-meter) length allows you flexibility in placing equipment with respect to the power outlet.Red Jacket Helps Avoid Misidentification That Can Cause Costly DowntimeThe UL-listed cable has a red PVC jacket, which is easy to identify quickly in a crowded PDU or UPS system and helps prevent the cable from becoming accidentally disconnected.With 250 V AC cord, never run out of power and keep your device operational at all timesExtends the power source where electric sockets are far awayHelps you keep your device charged, up and runningBrochure

Technical Specifications

Miscellaneous
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Power Description
Voltage Rating	250 V AC
Current Rating	20 A
Environmental Conditions
Minimum Operating Temperature	-4°F (-20°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)
General Information
Product Type	Power Extension Cord
Manufacturer Part Number	P036-006-ARD
Manufacturer Website Address	https://tripplite.eaton.com/
Manufacturer	Eaton Corporation
Product Model	P036-006-ARD
Product Name	P036-006-ARD Power Extension Cord
Brand Name	Tripp Lite by Eaton
Physical Characteristics
Cord Length	6 ft (1.83 m)
Height	10" (254 mm)
Width	7.90" (200.66 mm)
Depth	0.50" (12.70 mm)
Jacket Material	Service Junior Thermoplastic (SJT)
	Polyvinyl Chloride (PVC)
Product Color	Red
Color Family	Red
Technical Information
Device Supported	PDU
	Router
	Network Device
	Network Switch
	UPS
	Server Chassis
	Server
Localization	North America
Features	Heavy Duty
Number of Conductors	3
Gauge	12
First End Connector Type	IEC 60320 C20
First End Connector Detail	1 x 3-pin IEC 60320 C20 Male
Second End Connector Type	IEC 60320 C19
Second End Connector Detail	1 x 3-pin IEC 60320 C19 Female
