About the product
Features
Now You Can Watch Video from Your HDMI Computer on a VGA Display
This HDMI to VGA adapter helps you transmit video through your computer's HDMI port to a VGA-enabled television or monitor. It's an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 1080p. It also allows you to keep using your VGA display without the expense of replacing it.
Transmits Crystal-Clear 1080p Video and Stereo Audio

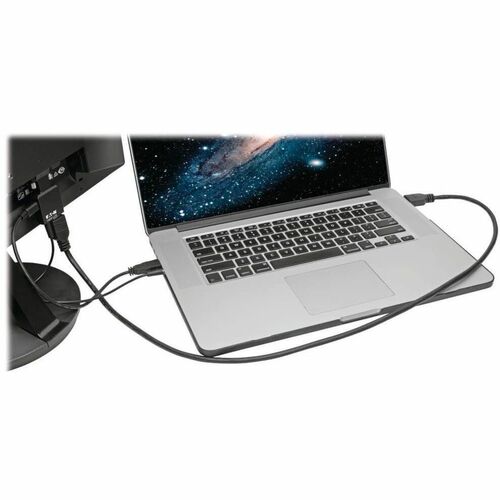

To send high-definition video to a VGA television or monitor, connect the adapter directly to the display's VGA port, and connect an HDMI cable (sold separately) between the adapter's HDMI port and the source device. The adapter supports video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz, as well as HDCP 1.4 and HDMI 1.4b compatibility. Connect the included audio cable between the adapter's audio port and the audio jack on your monitor, A/V receiver or speakers to receive stereo sound.
Ready to Use Right Out of the Package

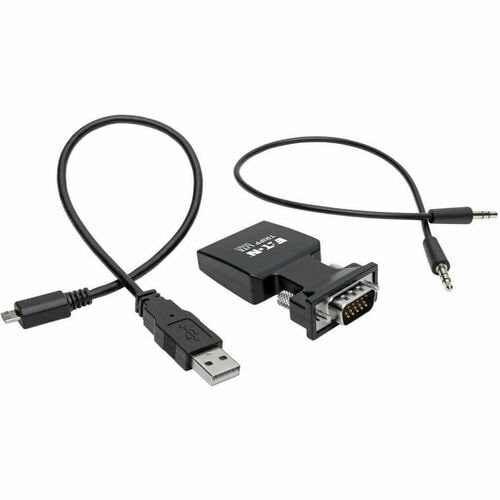

The molded one-piece unit is so compact that it fits in the palm of your hand, making it easy to carry in your backpack or laptop bag for quick connection anywhere. No software, drivers or external power supply is required. If additional power is needed, use the included USB cable to connect the adapter's USB Micro-B port to a USB charger or a USB-A port on the source device.
- The video adapter is specially designed for high-speed digital and analog use
- Nickel connector plating gives corrosion protection
- Get a great level of detail with 1920 x 1200 resolution
- Fast and reliable HDMI/Mini-phone/VGA adapter
Technical Specifications
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Video Adapter |
| Manufacturer Part Number | P131000ADISP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P131-000-A-DISP |
| Product Name | HDMI to VGA Active Converter with Audio (F/M), 1920 x 1200 (1080p) @ 60 Hz |
| Brand Name | Tripp Lite series |
| Physical Characteristics | |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Height | 1.33" (33.78 mm) |
| Width | 2.46" (62.48 mm) |
| Depth | 0.37" (9.40 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Technical Information | |
| Features | HDCP 1.4 |
| Connector Type on First End | HD-15 - Male |
| Connector Type on Second End | HDMI 1.4b Digital Audio/Video - Female |
| Mini-phone Audio - Female | |
| Micro USB Type B - Female | |
| Maximum Resolution Supported | 1920 x 1200 |
| Adapter Type | HDMI/Mini-phone/VGA |
| Connector Plating | Nickel |
| Contact Plating | Gold |

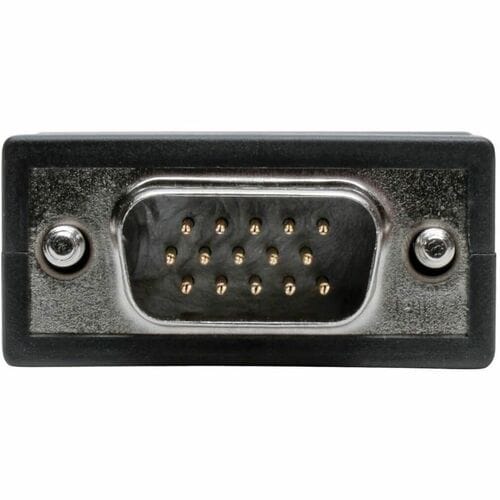

| Connector on First End Details | 1 x 15-pin HD-15 VGA Male |
| Connector on Second End Details | 1 x Mini-phone Audio Female |
| 1 x HDMI HDMI 1.4b Digital Audio/Video Female | |
| 1 x Type B Micro USB Female |
