About the product
Tripp Lite's P134-000-VGA-V2, DisplayPort v1.2 to VGA Active Adapter Converter allows you to connect a computer with a DisplayPort connection to a VGA monitor. Displayport v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Fully molded one piece design ensures longer life. Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort output. It is ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals.

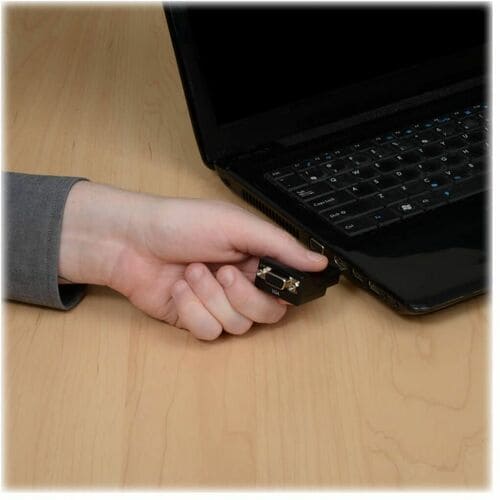

- Connect a VGA monitor to a computer with a DisplayPort output
- DisplayPort v1.2 to VGA Active Adapter Converter (DisplayPort-Male to VGA-Female)
- Plug-and-play convenience; no drivers or software needed
- Ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals
- Converts both Single-Mode and Dual Mode (DP++) Displayport output
Technical Specifications
| Physical Characteristics | |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Video Adapter |
| Manufacturer Part Number | P134000VGAV2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P134-000-VGA-V2 |
| Product Name | DisplayPort 1.2 to VGA Compact Adapter Converter (DP-Male to VGA-Female) |
| Brand Name | Tripp Lite series |
| Technical Information | |
| Features | Molded |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HD-15 - Female |
| Maximum Resolution Supported | 1920 x 1200 |
| Adapter Type | DisplayPort/VGA |

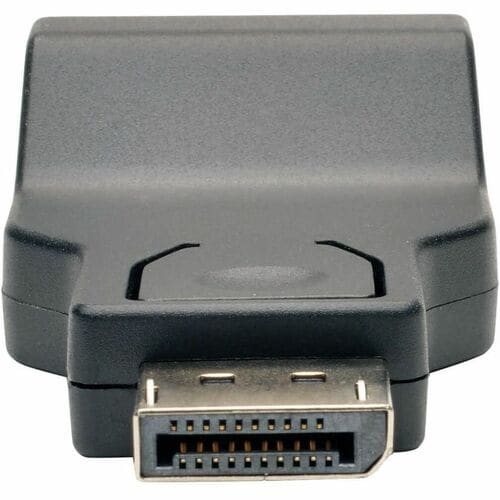

| Connector on First End Details | 1 x DisplayPort DisplayPort 1.2 Digital Audio/Video Male |

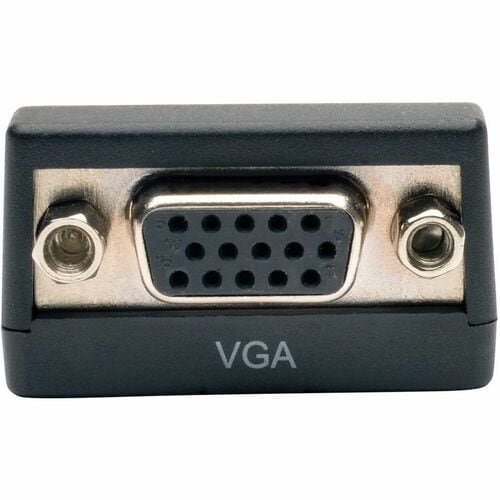

| Connector on Second End Details | 1 x 15-pin HD-15 VGA Female |
