About the product

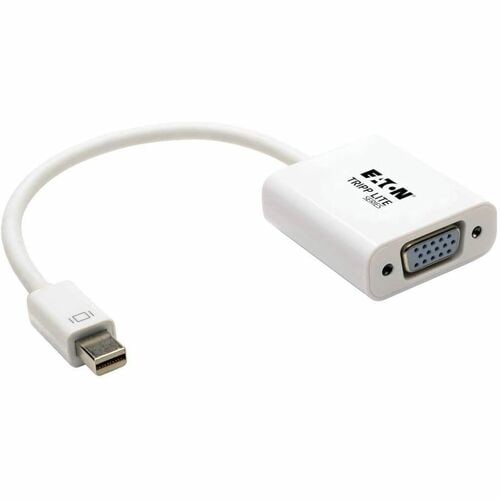

Tripp Lite's P137-06N-VGA-V2 Mini-DisplayPort v1.2 to VGA Active Adapter Converter allows you to connect a computer with a Mini-DisplayPort or Thunderbolt™ connection to a VGA monitor. Ideal for Thunderbolt™ /Mini DisplayPort equipped laptops, Chromebooks, MacBooks and Microsoft Surface. Mac 10.11, Windows 10 Compatible. DisplayPort v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Supports VGA computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p. Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort output. It is ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals.
- Connect a VGA monitor to a computer with a Mini-DisplayPort output
- Mini-DisplayPort v1.2 to VGA Active Adapter Converter (Mini-DisplayPort Male to VGA Female)
- Plug-and-play convenience; no drivers or software needed
- Ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals
- Converts both Single-Mode and Dual Mode (DP++) Displayport output
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.20 oz (34.02 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P13706NVGAV2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P137-06N-VGA-V2 |
| Product Name | Mini Displayport 1.2 to VGA M/F |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 6" (152.40 mm) |
| Data Transfer Rate | 17.3 Gbit/s |
| Device Supported | Monitor |
| Computer | |
| Cable Type | DisplayPort/VGA |

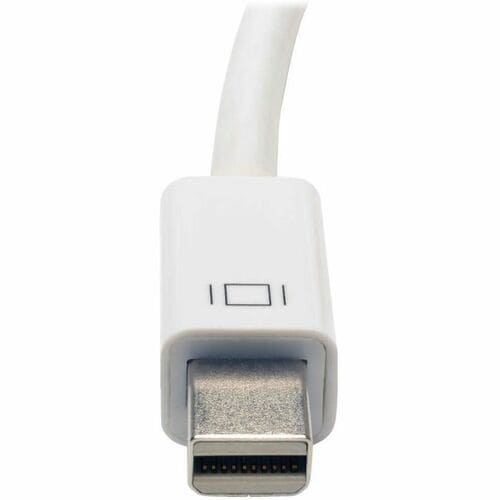

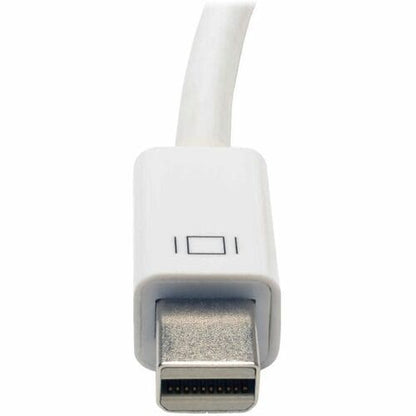

| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |

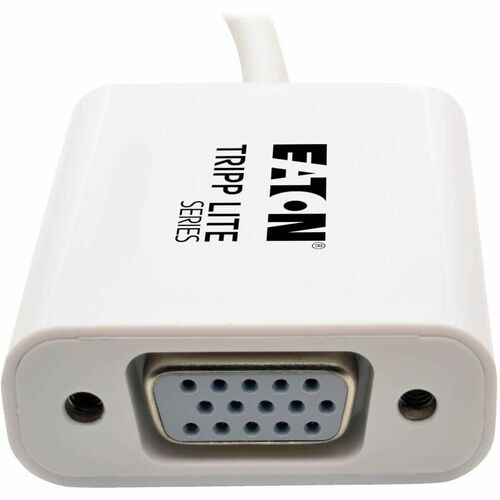

| Connector Type on Second End | HD-15 - Female |
| Supported Resolution | 1920 x 1080 |
| Connector on First End Details | 1 x Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 15-pin HD-15 - Female |
