About the product
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
- Electric power fitted to racks of computers and networking equipment within a data center
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Technical Specifications
| Management | |
| Remote Outlet Switching | No |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 17.30 kVA |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 68.90" (1750.06 mm) |
| Width | 2" (50.80 mm) |
| Depth | 2.10" (53.34 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Protection Type | Double Pole |
| Plug/Connector Type | IEC 60309 460P9 |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Basic |
| Receptacle Detail | 12 x IEC 60320 C13 |
| 12 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P24B14M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Model | P24B14M |

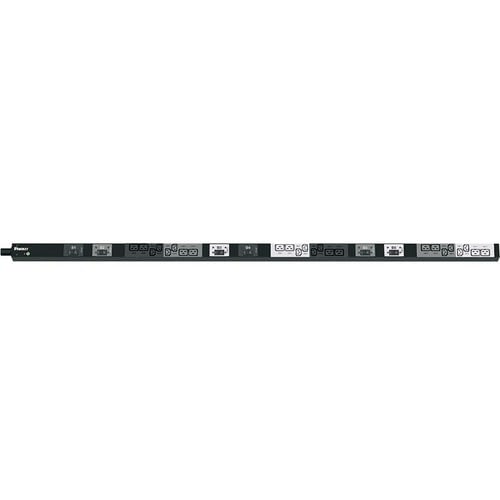

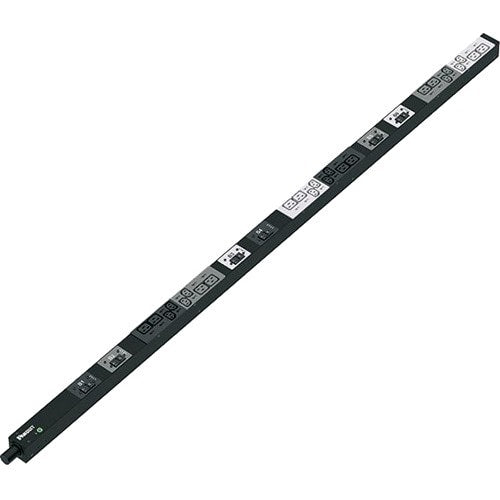

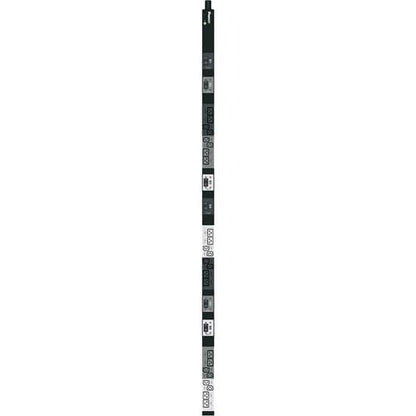

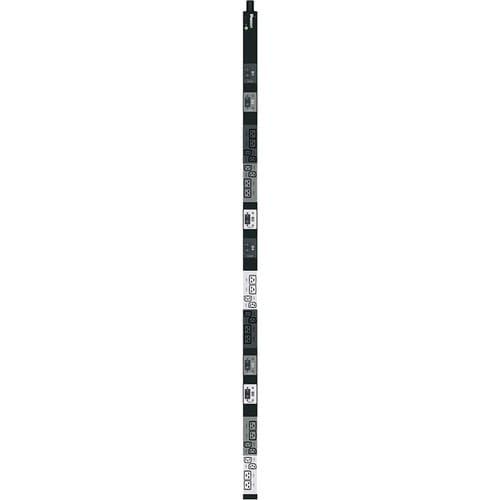

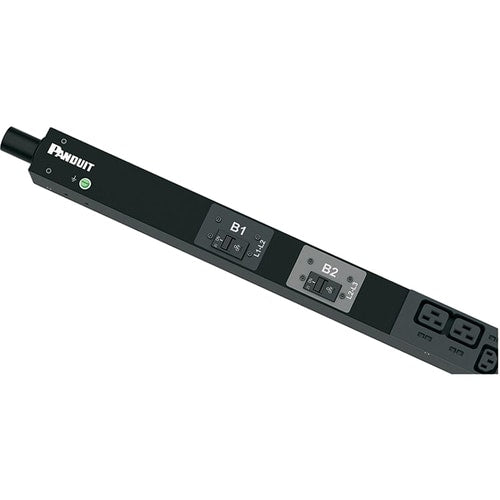

| Product Name | P24B14M Vertical Basic Power Distribution Unit |
| Product Line | SmartZone |
| Brand Name | Panduit |
