About the product

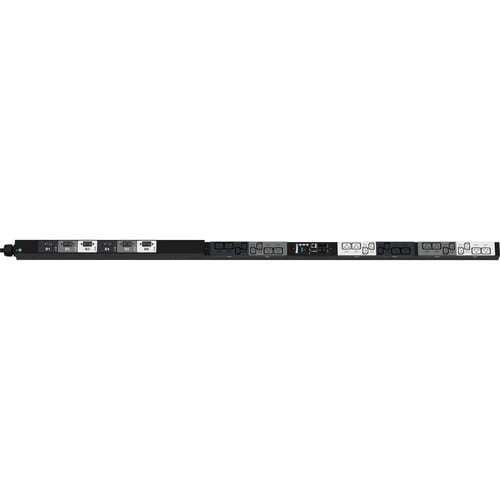

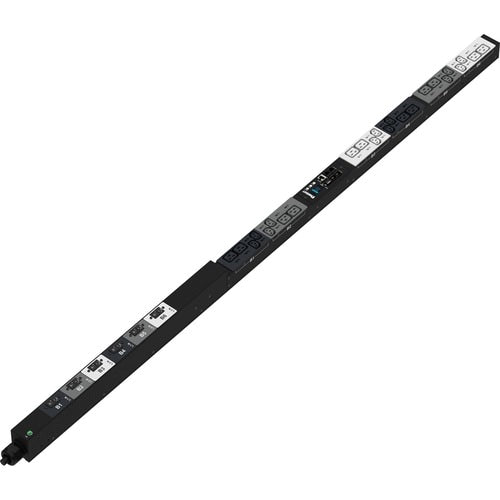

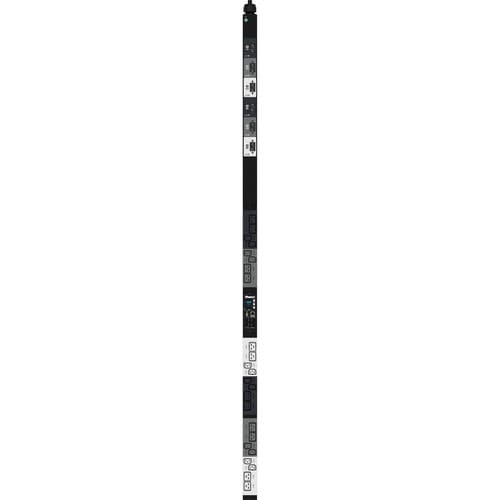

The Panduit ® SmartZone TM G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money.
Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
- Provide circuit protection and easy configuration for trouble-free access
- Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Input Voltage | 120 V AC |
| 415 V AC | |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Power Rating (VA) | 17.30 kVA |
| Physical Characteristics | |
| Length | 68.90" (1750.06 mm) |
| Mount Type | Rack-mountable |
| Cabinet-mountable | |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2.10" (53.34 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P24D05M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | SmartZone MI 24-Outlets PDU |
| Product Line | SmartZone |
| Product Series | MI |
| Brand Name | Panduit |
| Technical Information | |

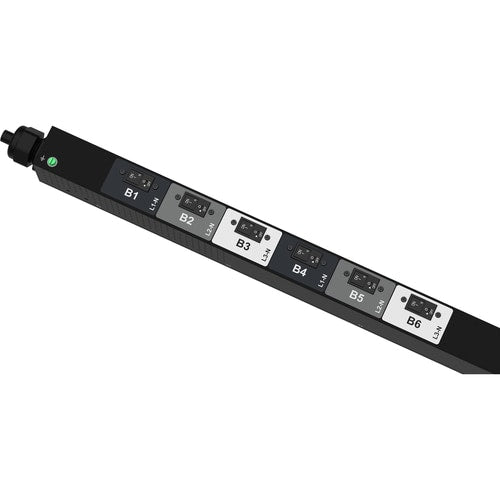

| Protection Type | Circuit Protection |
| Overload Protection | |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 30A (IP44) |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Monitored |
| Receptacle Detail | 12 x IEC 60320 C13 |
| 12 x IEC 60320 C19 |
