About the product
- A device fitted with multiple outputs for the distribution of electric power
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Current | 60 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Technical Information | |
| Plug/Connector Type | IEC 60309 3P+E |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Monitored |
| Receptacle Detail | 18 x IEC 60320 C13 |
| 6 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P24D33M-BL2C |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |

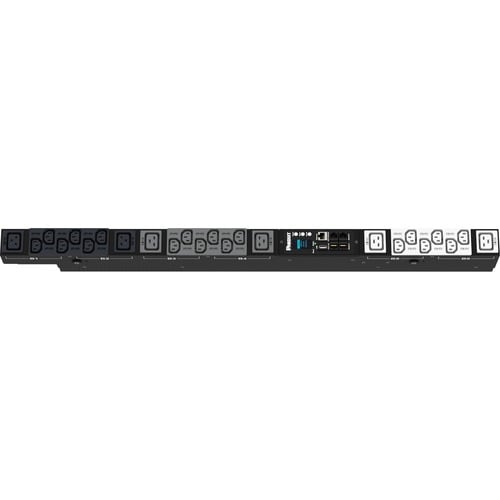

| Product Name | SmartZone MI 24-Outlets PDU |
| Product Line | SmartZone |
| Product Series | MI |
| Brand Name | Panduit |
| Physical Characteristics | |
| Weight (Approximate) | 28.22 lb (12800.38 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 10" (254 mm) |
| Width | 2" (50.80 mm) |
| Depth | 1" (25.40 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
