About the product
- PDU improves efficiency, uptime and growth of data centers
- PDU provides active metering enabling energy optimization and circuit protection
- With switched PDU, remotely monitor, connect or disconnect data center loads
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | SNMP |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| Maximum Storage Temperature | 284°F (140°C) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 8.60 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P24G02G |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |

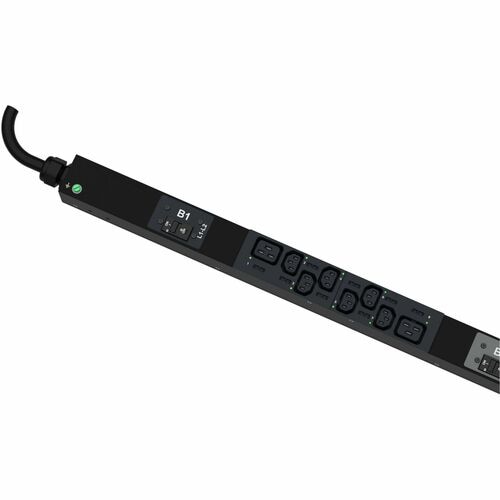

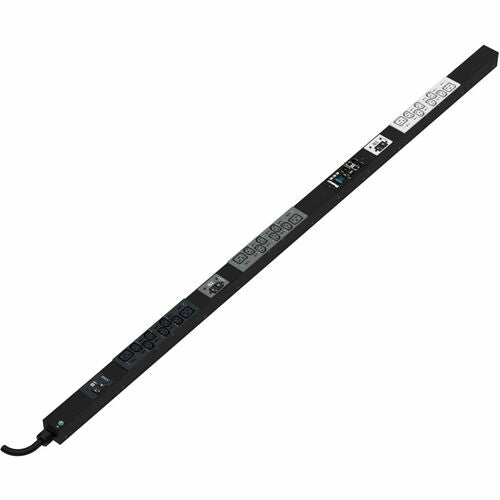

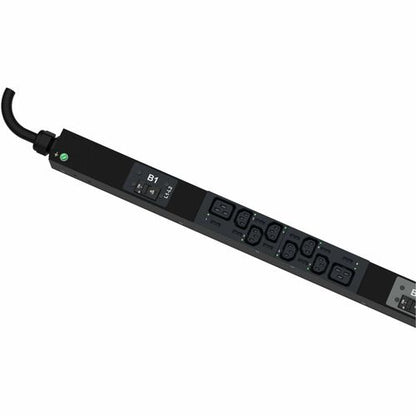

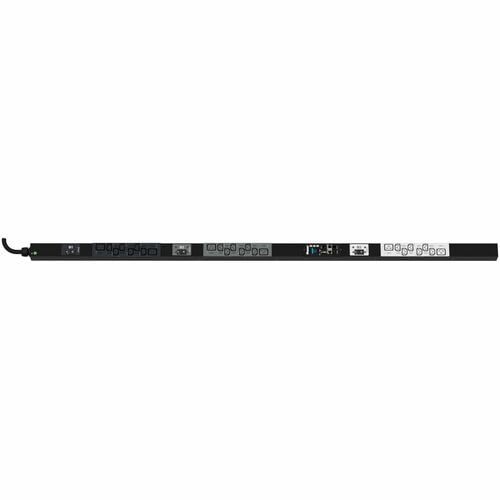

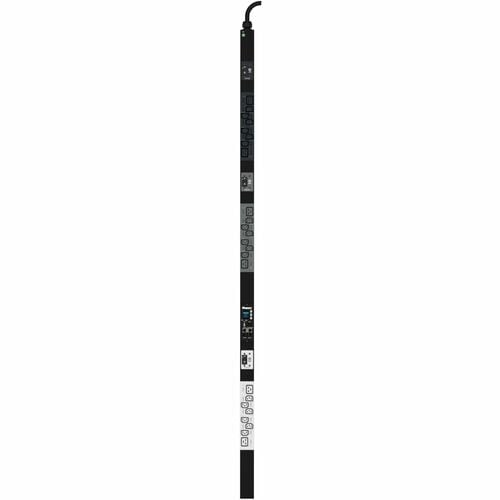

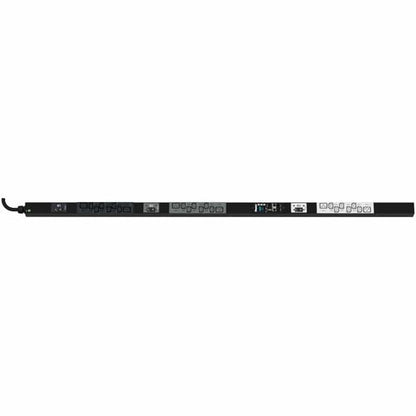

| Product Name | G6 24-Outlets PDU |
| Product Series | G6 |
| Brand Name | Panduit |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 40U |
| Cord Length | 10 ft (3.05 m) |
| Height | 69" (1752.60 mm) |
| Width | 2" (50.80 mm) |
| Depth | 2.10" (53.34 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | Onboard Display |
| Plug/Connector Type | NEMA L15-30P |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Load Capacity (Watt) | 8.60 kW |
| PDU Type | Switched |
| Monitored | |
| Receptacle Detail | 6 x IEC 60320 C19 |
| 18 x IEC 60320 C13 |
