About the product
Key Features | Powerful Performance

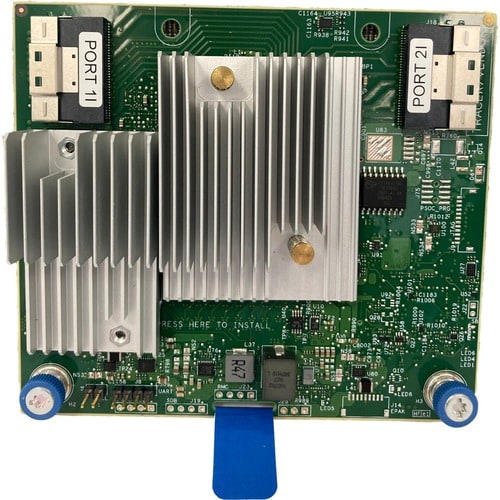

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus feature Broadcom MR416i and Broadcom MR216i controllers with impressive performance including up to 13,700 Mbs of bandwidth, 3M random read IOPS, and 240K RAID5 random write IOPS.
2nd Generation Tri-Mode SerDes
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is enabled with SerDes for exceptional support of NVMe4/SAS3/SATA protocols.
With Tri-Mode support, achieve the scalability and flexibility you need for shifting business environments.
Enhanced Security
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is built with the HPE Silicon Root of Trust for firmware authentication and support for self-encrypting drives to help ensure protection for data at rest and prevention of malware.
Software Supported
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus support all major OS's including but not limited to Windows, Linux®, and VMware®, full tool suite including command line interface, web-based management, and out-of-band management support.
Technical Specifications
| Memory | |
| Cache Memory | 4 GB |
| Miscellaneous | |
| Platform Supported | PC |
| Interfaces/Ports | |
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| Physical Characteristics | |
| Weight (Approximate) | 4.55 oz (129 g) |
| Form Factor | Plug-in Module |
| General Information | |
| Product Type | SAS Controller |
| Manufacturer Part Number | P26279-B21 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | MR416i-a |
| Product Name | Broadcom MegaRAID MR416i-a SAS Controller |
| Product Line | MegaRAID |
| Brand Name | HPE |
| Technical Information | |
| Host Interface | PCI Express 4.0 x16 |
| Device Supported | Server |
| RAID Levels | 5 |
| 0 | |
| 50 | |
| 6 | |
| 60 | |
| 1 | |
| 10 | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
