About the product

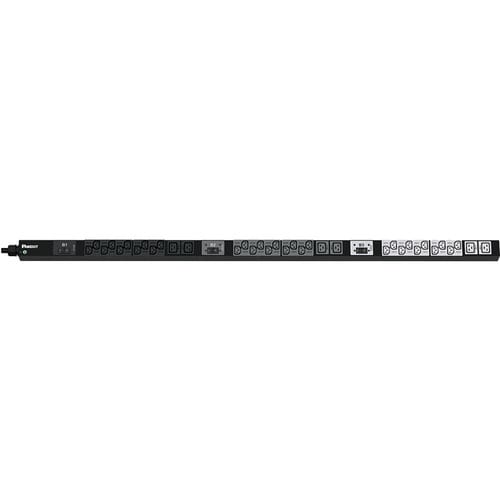

The 30A, 208V vertical 3 Phase WYE PDU has (30) C13 and (6) C19 receptacles, a 10' (3m) power cord with a NEMA L21-30P plug, and measures 58.7"L x 2.0"W x 2.1"D (1491mm x 50.8mm x 53.3mm). UL Listed. Color: Black
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Technical Specifications
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 30 A |
| Power Rating (VA) | 8.60 kVA |
| Physical Characteristics | |
| Length | 58.70" (1490.98 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2.10" (53.34 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Plug/Connector Type | NEMA L21-30P |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Basic |
| Receptacle Detail | 30 x IEC 60320 C13 |
| 6 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P36B26M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Model | P36B26M |
| Product Name | P36B26M Vertical Basic Power Distribution Unit |
| Brand Name | Panduit |
