About the product
- PDU provides power control as remote controlled relay & load monitoring
- Before critical input source become overloaded always be warned with monitored PDUs
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Length | 71.65" (1820.01 mm) |
| Mount Type | Rack-mountable |
| Width | 2.05" (51.99 mm) |
| Depth | 4.40" (111.76 mm) |
| Mounting Orientation | Vertical |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Input Current | 50 A |
| Power Rating (VA) | 14.40 VA |
| Power Rating (Watt) | 14.40 kW |
| Technical Information | |
| Plug/Connector Type | Hubbell CS8365C |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Monitored |
| Receptacle Detail | 12 x IEC 60320 C19 |
| 36 x IEC 60320 C13 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P48D32M-RD2A |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |

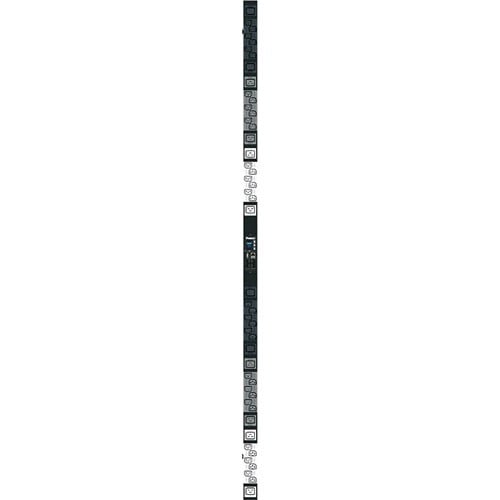

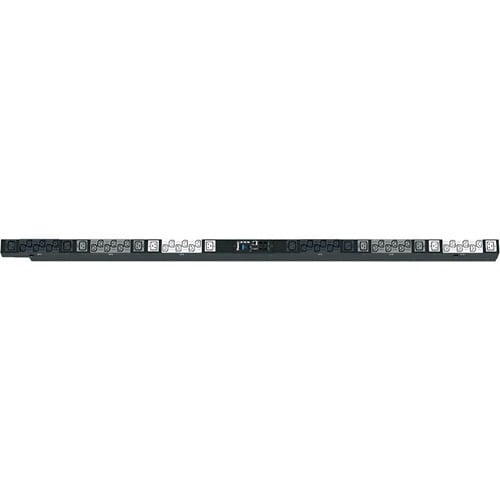

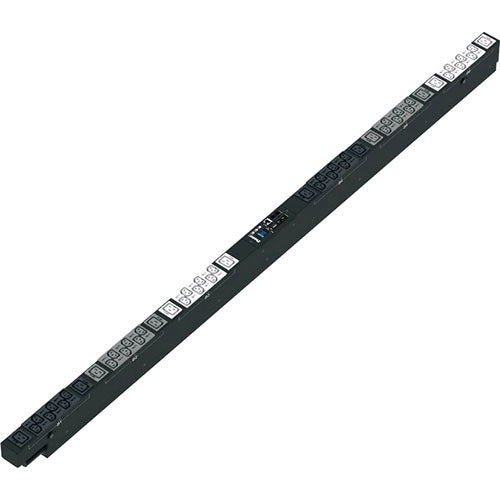

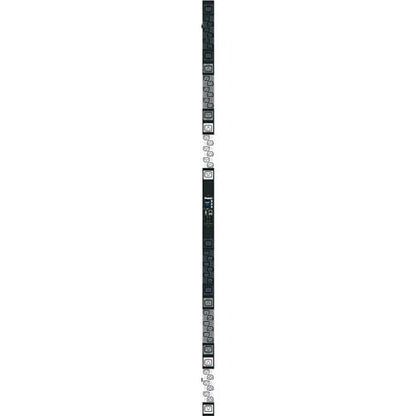

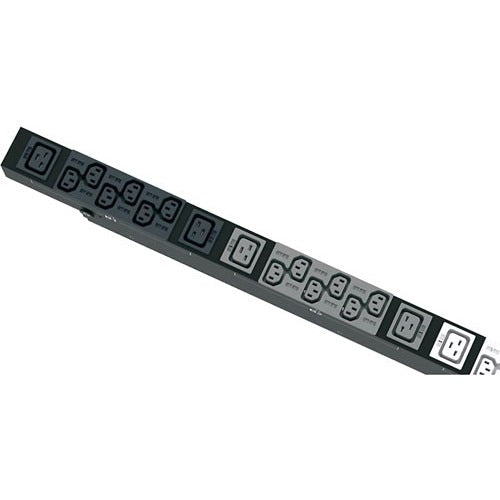

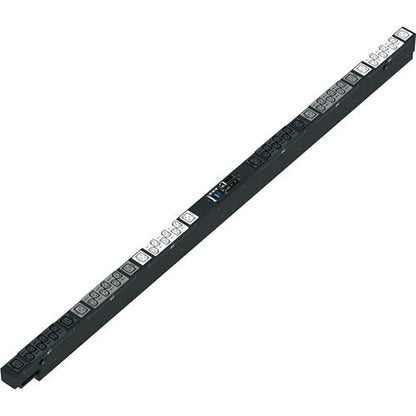

| Product Name | SmartZone G5 Intelligent 48-Outlets PDU |
| Product Line | SmartZone |
| Product Series | MI |
| Brand Name | Panduit |
