About the product

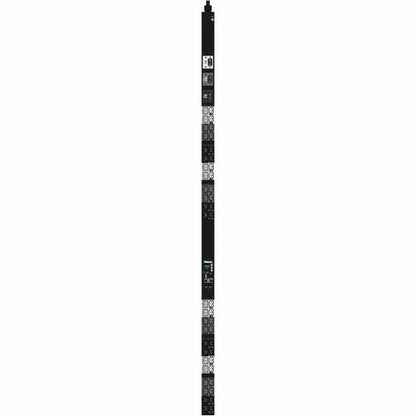

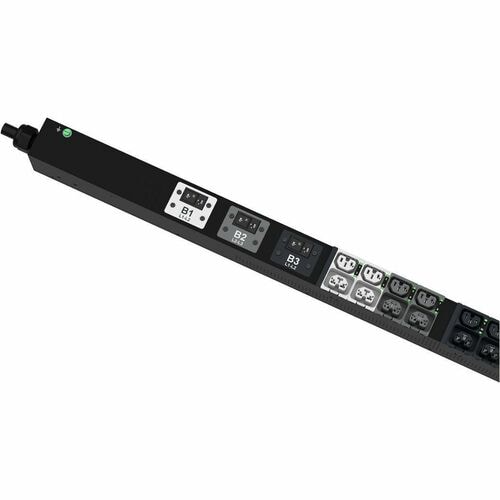

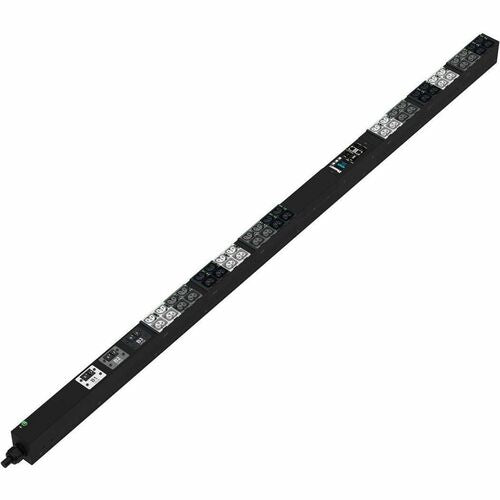

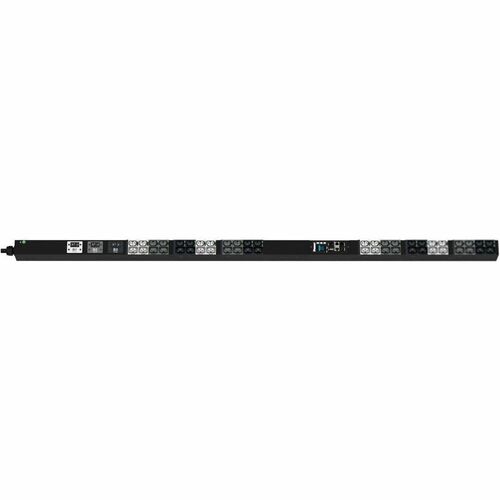

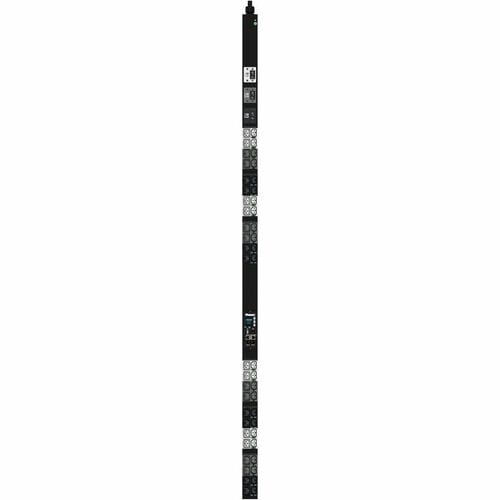

The Panduit™ G6 Monitored Switched PDU features (24)C13/C15, (24)C13/15/C19/C21 outlets. This PDU is designed with combination outlets which allows the receptacle to be used as an C13/C15/C19 or C21 outlet. It is a 30 amp 208V three phase PDU with an L15-30P input plug and a 10 foot (3m) power cord. The PDU is black
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | SNMP |
| Miscellaneous | |
| Application/Usage | Data Center |
| Package Contents |
|
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| Maximum Storage Temperature | 284°F (140°C) |
| Power Description | |
| Circuit Breaker | Yes |
| Output Voltage | 230 V DC |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 8.60 kW |
| Physical Characteristics | |
| Cord Length | 10 ft (3.05 m) |
| Height | 70" (1778 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 3" (76.20 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P48E22G |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | G6 48-Outputs PDU |
| Product Series | G6 |
| Brand Name | Panduit |
| Technical Information | |
| Features | LED Status Indicator |
| Plug/Connector Type | NEMA L15-30P |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13/C15 |
| IEC 60320 C13/C15/C19/C21 | |
| Load Capacity (Watt) | 8.60 kW |
| PDU Type | Switched Outlet Monitored |
| Receptacle Detail | 24 x IEC 60320 C13/C15 |
| 24 x IEC 60320 C13/C15/C19/C21 |
