About the product

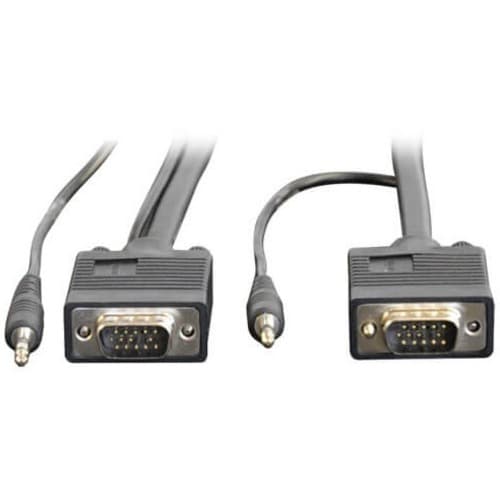

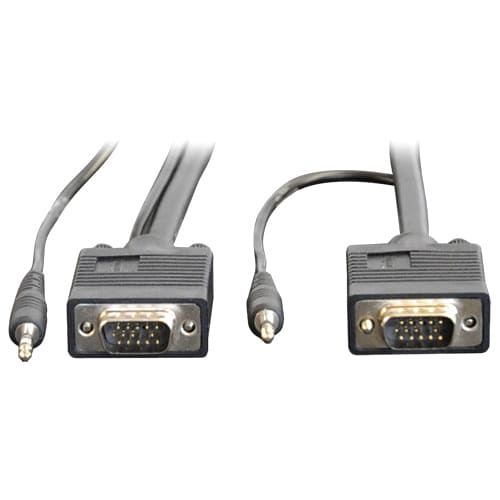

Tripp Lite's 15 foot PVC SVGA/VGA monitor replacement cable features built-in 3.5mm stereo plugs, for extending audio as well video. The mini-coax (RGB) and paired video wire construction delivers superior video signal quality. Nickel plated connectors and gold plated copper contacts ensure excellent conductivity. Double shielding (foil and braid) provides maximum EMI/RFI protection. Both high density DB15 male connectors are molded and have integral strain relief to ensure they last a long time. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
- Superior molded cables with foil-shielding for maximum EMI/RFI protection
- VW-1 and CM Rated Jacketing
- 3.5mm Stereo Plugs
Technical Specifications
| Miscellaneous | |
| Certifications & Standards | CMR Rated |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.20 lb (544.31 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P504015 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P504-015 |
| Product Name | P504-015 A/V Cable |
| Brand Name | Tripp Lite series |
| Technical Information | |
| Cable Length | 15 ft (4.57 m) |
| Device Supported | Monitor |
| Shielding | Yes |
| Features | Molded |
| Connector Type on First End | HD-15 - Male |
| Mini-phone Stereo Audio - Male | |
| Connector Type on Second End | Mini-phone Stereo Audio - Male |
| HD-15 - Male | |
| Connector Plating | Gold |
| Connector on First End Details | 1 x 15-pin HD-15 - Male |
| 1 x Mini-phone Stereo Audio - Male | |
| Connector on Second End Details | 1 x 15-pin HD-15 - Male |
| 1 x Mini-phone Stereo Audio - Male |
