About the product

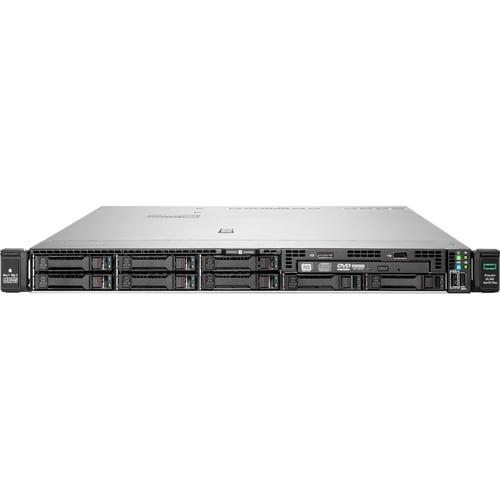

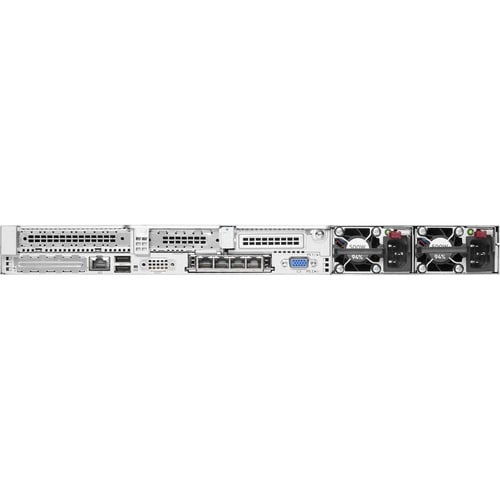

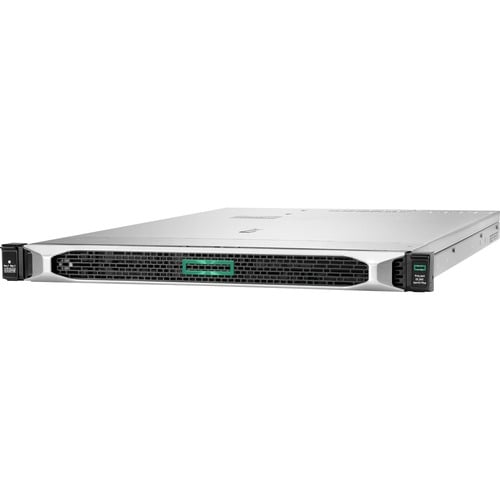

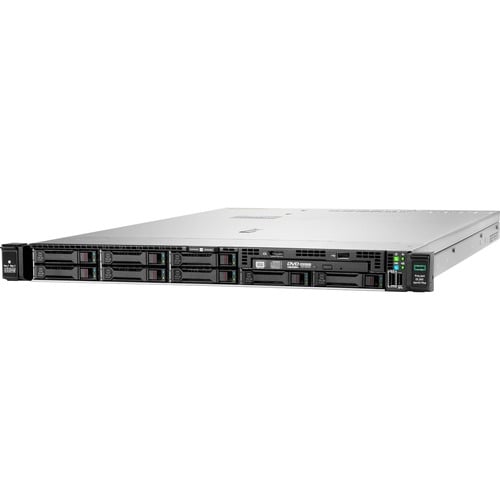

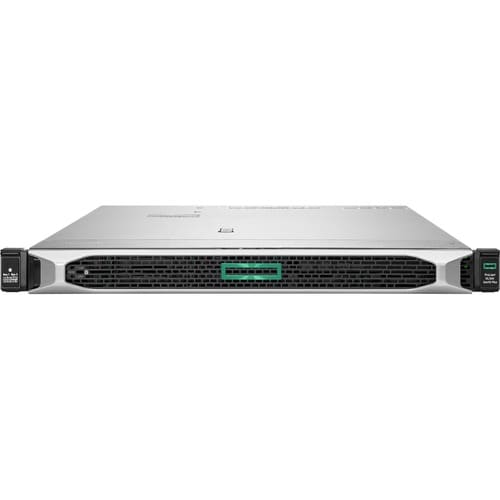

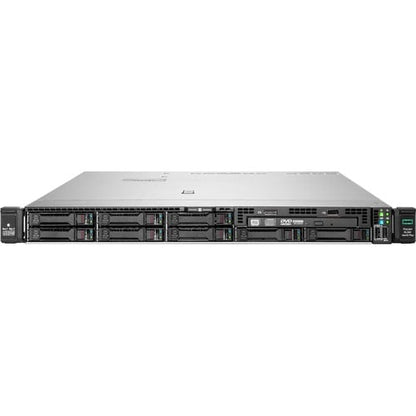

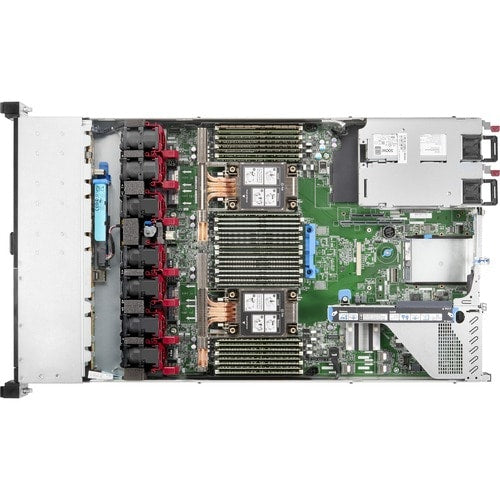

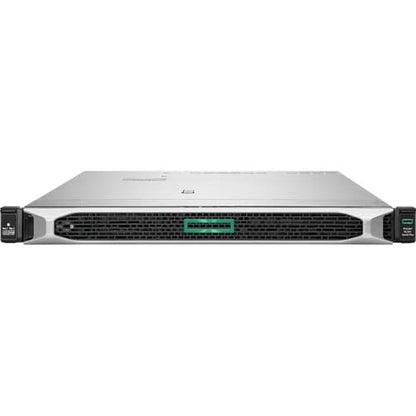

HPE ProLiant DL360 Gen10 Plus server
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- 1 x 800 W power supply unit (PSU) for your system's power requirements
- RAID provides data reliability, fault tolerance and improves overall performance
- 32 GB memory offers effective multitasking
Technical Specifications
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Miscellaneous | |
| Security Features |
|
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Storage | |
| Total Hard Drive Capacity | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | MR416i-a |
| Power Description | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 2 PCIe: 1 x16 FH, 1 x16 LP |
| Physical Characteristics | |
| Weight (Approximate) | 39.93 lb (18110 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.93 mm) |
| Width | 17.11" (434.59 mm) |
| Depth | 29.21" (741.93 mm) |
| Interfaces/Ports | |
| VGA | Yes |
| Network (RJ-45) | No |
| Remote Management | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Number of VGA Ports | 1 |
| Remote Management Controller | HPE iLO 5 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32 |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | P55241-B21 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL360 Gen10 Plus Server |
| Product Line | ProLiant |
| Product Series | DL360 G10 Plus |
| Brand Name | HPE |
| Processor | |
| Cache | 18 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4310 |
| Processor Core | Dodeca-core (12 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
| Operating System | |
| Operating System | No |
| Operating System Supported | Windows Server 2016 Essential |
| ClearOS 7.6 | |
| Hyper-V | |
| Oracle Linux | |
| Red Hat Enterprise Linux 6.9 | |
| Red Hat Enterprise Linux 7.3 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 8 | |
| SUSE Linux Enterprise Server 12 SP3 | |
| SuSE Linux Enterprise Server 15 | |
| Ubuntu 16.04.3 | |
| Windows Server 2016 Standard | |
| Windows Server 2019 Datacenter | |
| Windows Server 2019 Essentials | |
| Windows Server 2016 Datacenter | |
| Windows Server 2012 R2 Standard | |
| Windows Server 2012 R2 Essentials | |
| Windows Server 2012 R2 Datacenter | |
| Ubuntu 18.04 LTS | |
| Windows Server 2019 Standard |
