Tripp Lite series P566-003-VGA HDMI to VGA Active Converter Cable
Tripp Lite series P566-003-VGA HDMI to VGA Active Converter Cable
VPN:P566-003-VGA SKU:CBAV9331A1 CPU:37332201126
Features ActiveOffers exceptional quality and great compatibility with video equipmentWith HDMI and VGA ports, transfer high-quality pictures and 3D sound effects simultaneously at a high-speed
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details








Recently Viewed
Tripp Lite series P566-003-VGA HDMI to VGA Active Converter Cable
Product information summary

About the product

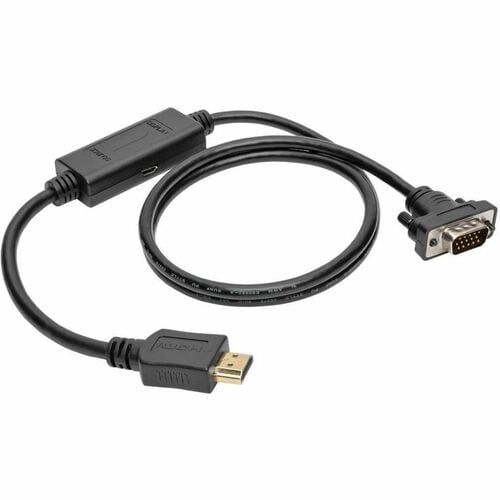

The P566-003-VGA HDMI to VGA Active Converter Cable connects a computer, cable box, Blu-ray™ player or other HDMI source to the VGA port on a monitor

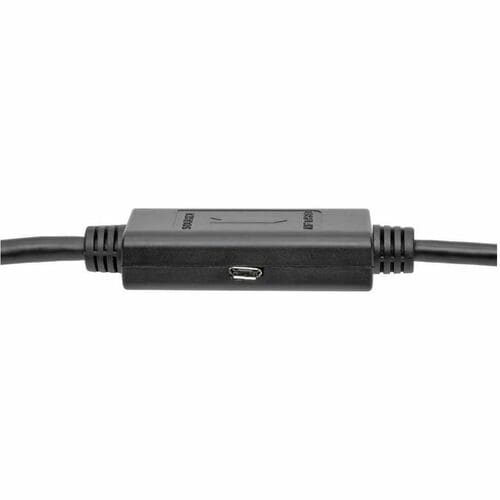

projector or television. This allows you to use your existing VGA display instead of investing time, effort and money into upgrading to a new HDMI display. The low-profile HD15 connector fits neatly into tight spaces without jamming between the monitor and wall or blocking nearby connections.\n\nIdeal for displaying video on a large monitor or digital sign, this three-foot converter cable supports high-definition video resolutions up to 1920 x 1200 at 60 Hz. No software or drivers are required. If additional power is needed, connect a USB cable (sold separately) between the cable's USB Micro-B port and a USB wall charger or computer port.\n\n Foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Features Send High-Definition HDMI Video Signals to a VGA Display Connects HDMI source to a VGA monitor, projector or TV Ideal for displaying video on large monitor or digital sign Low-profile HD15 connector fits neatly into tight spaces Plug-and-play-no software or drivers necessary Vibrant, Superior Video Quality Supports HD video resolutions up to 1920 x 1200 @ 60 Hz Superior Materials for Superior Performance Foil and braid shielding for reliable protection from EMI/RFI line noise Gold-plated HDMI connector and contacts for maximum conductivity and minimum data loss Integral strain relief reduces stress and adds flexibility Impedance-matched twisted-pair construction reduces crosstalk and interference USB Micro-B port provided in case additional power is needed More from the ManufacturerFeatures ActiveOffers exceptional quality and great compatibility with video equipmentWith HDMI and VGA ports, transfer high-quality pictures and 3D sound effects simultaneously at a high-speedHDMI and VGA ports for instant connectivityFully compatible with monitors
Technical Specifications
Miscellaneous | |
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics | |
Shipping Weight (Approximate) | 2.24 oz (63.50 g) |
Shipping Height | 9" (228.60 mm) |
Shipping Width | 7" (177.80 mm) |
Product Color | Black |
Color Family | Black |
General Information | |
Product Type | Video Cable |
Manufacturer Part Number | P566-003-VGA |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | P566-003-VGA |
Product Name | P566-003-VGA HDMI to VGA Active Converter Cable, 3 ft. |
Brand Name | Tripp Lite series |
Technical Information | |
Cable Length | 3 ft (0.91 m) |
Device Supported | Video Device |
Blu-ray Player | |
Monitor | |
Projector | |
TV | |
Shielding | Yes |
Features | Active |
Corrosion Resistant | |
Crosstalk Protection | |
EMI/RF Protection | |
Flexible | |
Noise Protection | |
Strain Relief | |
Cable Type | HDMI/VGA |

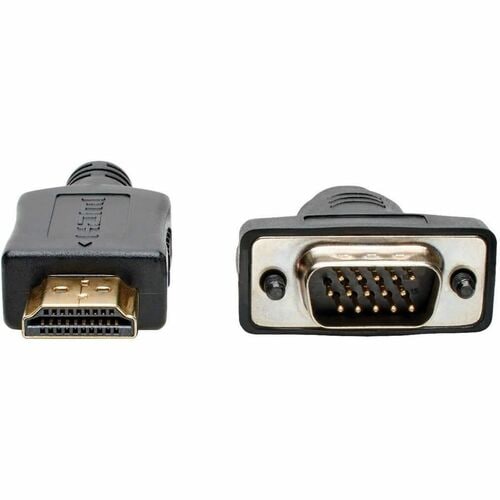

Connector Type on First End | HDMI Digital Audio/Video - Male |
Connector Type on Second End | HD-15 - Male |
Connector Plating | Gold |
Supported Resolution | 1920 x 1200 |
Contact Plating | Gold |
Connector on First End Details | 1 x HDMI Digital Audio/Video - Male |
Connector on Second End Details | 1 x 15-pin HD-15 - Male |
