About the product
Tripp Lite's 12-foot (3.7 meters) DVI - HDMI ( High Definition Multimedia Interface ) cable allows interconnection between digital display devices, such as DTVs ( Digital Television ), Plasma displays, LCD TV's, and projectors, to Digital source devices, such as Digital Set-Top boxes, DVD/DVD-R players, and AV receivers. HDMI DTV's will display video received from existing DVI-equipped products, and DVI-equipped TVs will display video from HDMI sources. HDMI technology uses a much more compact and user-friendly connector than the existing DVI connector. The HDMI specification handles higher-bandwidth, uncompressed video, and multi-channel digital audio, all in one neat cable solution. (DVI-HDMI cable supports digital video only).

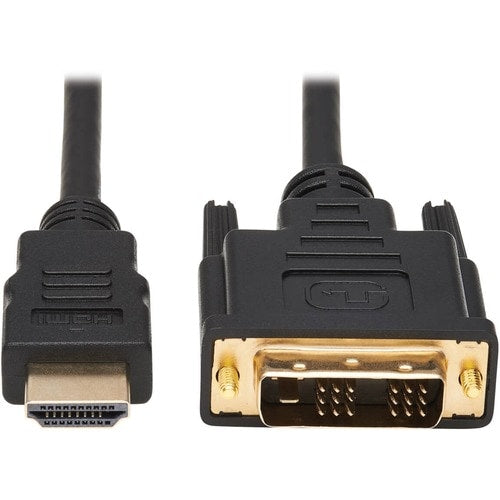

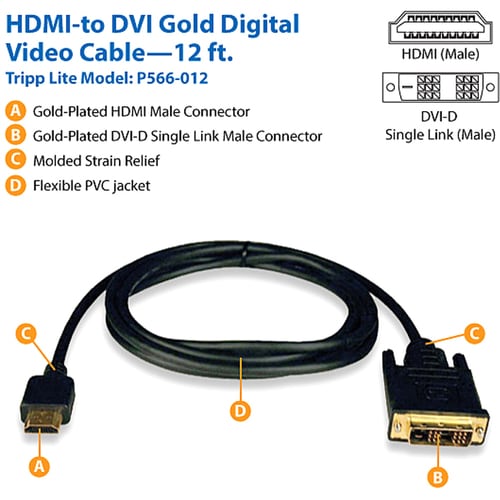

- 12-ft. (3.66 m) DVI to HDMI Adapter Cable
- Creates a pure bi-directional digital connection between a DVI-enabled source and an HDMI-enabled display or an HDMI-enabled source and a DVI-enabled display.
- Gold plated connectors and contacts provide optimal signal transfer
- Premium Double-Shielded HDMI compliant cable protects against outside noise (EMI/RFI)
- Impedance matched twisted pair construction reduces cross-talk and interference
- Supports High-Definition (HD) video resolutions up to 1920 x 1080 @60Hz (1080p).
- Creates a pure bi-directional digital connection between a DVI-enabled source and an HDMI-enabled display or an HDMI-enabled source and DVI-enabled display.
- Premium double shielded digital video cable protects against EMI/RFI noise
- Gold plated connectors and contacts provide optimal signal transfer
- Supports high-def video resolutions up to 1920 x 1080 @ 60 Hz (1080p)
- Supports a bandwidth up to 5 Gbps
- This product is covered by a Lifetime Limited Warranty
Technical Specifications
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 8.80 oz (249.48 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P566012 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P566-012 |
| Product Name | 12-ft. HDMI to DVI Gold Digital Video Cable (HDMI-M / DVI-M) |
| Product Series | P566 |
| Brand Name | Tripp Lite series |
| Technical Information | |
| Cable Length | 12 ft (3.66 m) |
| Conductor | Copper |
| Data Transfer Rate | 5 Gbit/s |
| Device Supported | Projector |
| Digital TV | |
| Audio/Video Device | |
| LCD TV | |
| Satellite Receiver | |
| TV | |
| DVD Player | |
| A/V Receiver | |
| Shielding | Yes |
| Features | Crosstalk Protection |
| EMI/RF Protection | |
| Molded | |
| Cable Type | DVI/HDMI |
| Connector Type on First End | HDMI Type A Digital Audio/Video - Male |
| Connector Type on Second End | DVI-D (Single-Link) Digital Video - Male |
| Connector Plating | Gold |
| Supported Resolution | 1920 x 1080 |
| Contact Plating | Gold |
| Connector on First End Details | 1 x 19-pin HDMI Type A Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 18-pin DVI-D (Single-Link) Digital Video - Male |
