About the product

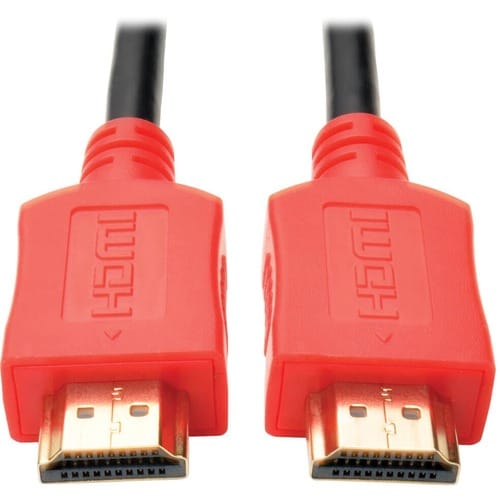

The P568-006-RD High-Speed HDMI Cable is ideal for digital signage, video presentations, point-of-sale displays, classrooms and other applications that display Ultra High Resolution (UHD) video and multi-channel audio. It connects HDMI-enabled source devices, such as computers and Blu-ray™ players, to HDMI-enabled displays, such as monitors, projectors and high-definition televisions.
This cable supports UHD video resolutions up to 3840 x 2160 (4K x 2K), including full 1080p, and data transfer speeds up to 18 Gbps-the fastest bandwidth currently available over HDMI. When used with an Apple® digital AV adapter, it supports iPad2® video mirroring for playing games, watching videos or displaying presentations. Backward compatible with previous HDMI generations, the P568-006-RD works in all HDMI cabling scenarios.
The six-foot molded 30 AWG cable features premium foil and braid shielding to deliver top-of-the-line signal quality and protection from EMI/RFI interference. Gold-plated red connectors ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time. A flexible PVC jacket makes the HDCP-compliant cable easy to install in tight spaces.
This cable supports UHD video resolutions up to 3840 x 2160 (4K x 2K), including full 1080p, and data transfer speeds up to 18 Gbps-the fastest bandwidth currently available over HDMI. When used with an Apple® digital AV adapter, it supports iPad2® video mirroring for playing games, watching videos or displaying presentations. Backward compatible with previous HDMI generations, the P568-006-RD works in all HDMI cabling scenarios.
The six-foot molded 30 AWG cable features premium foil and braid shielding to deliver top-of-the-line signal quality and protection from EMI/RFI interference. Gold-plated red connectors ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time. A flexible PVC jacket makes the HDCP-compliant cable easy to install in tight spaces.
- Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
- Supports data transfer speeds up to 10.2 Gbps
- Backward compatible with previous HDMI generations
- Premium foil and braid shielding protects against EMI/RFI noise
- Gold-plated red connectors for optimal signal transfer
Technical Specifications
| Miscellaneous | |
| Compatibility | Apple iPad 2 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.20 oz (90.72 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7.20" (182.88 mm) |
| Connector Color | Red |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P568-006-RD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P568-006-RD |
| Product Name | P568-006-RD HDMI Audio/Video Cable |
| Brand Name | Tripp Lite series |
| Technical Information | |
| Cable Length | 6 ft (1.83 m) |
| Data Transfer Rate | 18 Gbit/s |
| Device Supported | Camera |
| A/V Receiver | |
| Audio/Video Device | |
| TV | |
| Monitor | |
| iPad | |
| Projector | |
| Blu-ray Player | |
| Shielding | Yes |
| Features | Strain Relief |
| EMI/RF Protection | |
| Flexible | |
| Molded | |
| Corrosion Resistant | |
| Noise Protection | |
| Cable Type | HDMI |
| Connector Type on First End | HDMI Digital Audio/Video - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Male |
| Connector Plating | Gold |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 3840 x 2160 |
| Connector on First End Details | 1 x HDMI Digital Audio/Video - Male |
| Connector on Second End Details | 1 x HDMI Digital Audio/Video - Male |
