About the product
The P568-006-WH High-Speed HDMI 4K Cable (M/M) is recommended for digital signage, video presentations, point-of-sale displays, classrooms and other applications that display Ultra High Resolution (UHD) video and multi-channel audio. It connects 4K-enabled source devices, such as computers and Blu-ray players, to 4K-enabled displays, such as monitors, projectors and televisions.
This cable supports video resolutions up to Ultra HD 4K x 2K (4096 x 2160) at 30 Hz and data transfer speeds up to 18 Gbps. When used with an Apple® digital AV adapter, it supports iPad2® video mirroring for playing games, watching videos or displaying presentations.
The 6-ft. (1.83 m) molded 30 AWG cable features premium foil and braid shielding to deliver reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. Gold-plated white connectors provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. A flexible PVC jacket makes the HDCP Pass-Through cable easy to install in tight spaces.
Connects HDMI Source to 4K TV, Projector or Monitor
- Ideal for digital signage, video presentations, point-of-sale displays, classrooms and other applications with 4K video and multi-channel audio
High Performance and Wide Compatibility
- Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 30 Hz
- Supports data transfer speeds up to 18 Gbps
- Complies with HDCP Pass-Through standards
- Supports iPad2 video mirroring when used with Apple digital A/V adapter
- Backward compatible with previous HDMI generations

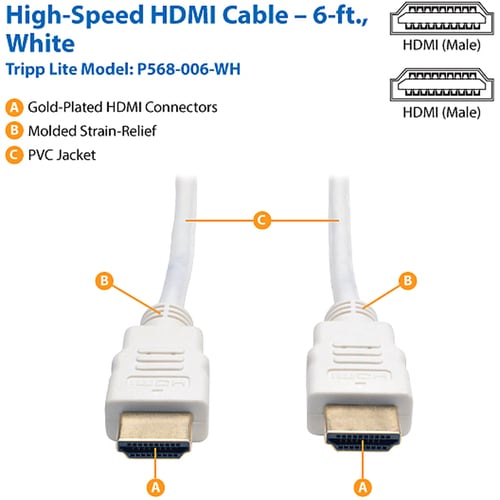

Superior Quality Ensures a Flawless Signal
- Corrosion-resistant gold-plated white connectors for maximum conductivity and minimum data loss
- Fully molded 30 AWG construction with integral strain relief reduces stress and adds flexibility
- Premium foil and braid shielding for EMI/RFI noise protection
- Flexible PVC jacket easy to install in tight spaces
- Premium double-shielded digital audio/video cable
- Supports iPad2 Video Mirroring when used with Apple Digital AV Adapter
- Gold-plated connectors provide optimal signal transfer
- Bandwidth up to 10.2 Gbps - Full 1080p resolution
- High Speed HDMI and HDCP compliant
- Supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160
Technical Specifications
| Miscellaneous | |
| Compatibility | Apple iPad 2 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.04 oz (86.18 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | White |
| Color Family | White |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P568-006-WH |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P568-006-WH |
| Product Name | High Speed HDMI Cable, Digital Video with Audio (M/M), White, 6-ft |
| Brand Name | Tripp Lite series |
| Technical Information | |
| Cable Length | 6 ft (1.83 m) |
| Conductor | Copper |
| Data Transfer Rate | 18 Gbit/s |
| Device Supported | Audio/Video Device |
| Blu-ray Player | |
| Digital Signage Display | |
| POS Device | |
| TV | |
| Projector | |
| Home Theater System | |
| Monitor | |
| LCD TV | |
| iPad | |
| Shielding | Yes |
| Features | Molded |
| Strain Relief | |
| Flexible | |
| EMI/RF Protection | |
| Crosstalk Protection | |
| Cable Type | HDMI |
| Connector Type on First End | HDMI Digital Audio/Video - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Male |
| Connector Plating | Gold |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 4096 x 2160 |
| Connector on First End Details | 1 x HDMI Digital Audio/Video - Male |
| Connector on Second End Details | 1 x HDMI Digital Audio/Video - Male |
