Tripp Lite
Tripp Lite series P581
Tripp Lite series P581
VPN:P581-006-VGA-V2 SKU:CBAV2146A1 CPU:37332191939
Active adapter for use with any Displayport portSupports computer video resolutions up to 1920 x 1200Supports HD video resolutions up to 1920 x 1080 (1080p)
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details

Recently Viewed
Tripp Lite series P581
Product information summary

About the product

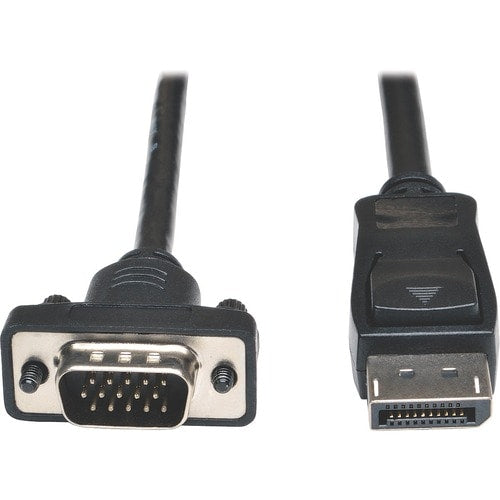

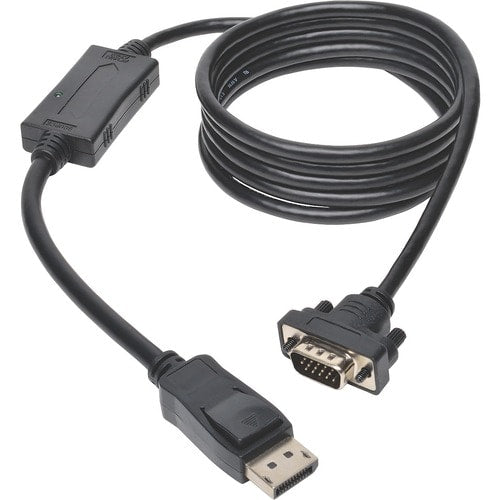

The P581-006-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable connects a DisplayPort computer to the VGA port on a monitor, projector or television. With a latching DisplayPort male connector on one end and an HD15 male connector on the other, this cable requires no separate adapter. It lets you use your existing VGA display instead of buying a new DisplayPort monitor.\n\nIdeal for displaying video on a large monitor or digital sign
this cable supports computer video resolutions up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals.\n\nFirst-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Nickel-plated connectors with gold-plated contacts ensure excellent conductivity. The DisplayPort plug latches to the port to provide a secure connection. Integral strain relief ensures the cable and molded connectors last a long time. More from the ManufacturerActive adapter for use with any Displayport portSupports computer video resolutions up to 1920 x 1200Supports HD video resolutions up to 1920 x 1080 (1080p)No separate adapter requiredNickel-plated connectors with gold-plated contacts
Technical Specifications
Miscellaneous | |
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics | |
Shipping Weight (Approximate) | 3.84 oz (108.86 g) |
Shipping Height | 7" (177.80 mm) |
Shipping Width | 9" (228.60 mm) |
Product Color | Black |
Color Family | Black |
General Information | |
Product Type | Video Cable |
Manufacturer Part Number | P581-006-VGA-V2 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Manufacturer | Eaton Corporation |
Product Model | P581-006-VGA-V2 |
Product Name | P581-006-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable, 6 ft. |
Brand Name | Tripp Lite series |
Technical Information | |
Cable Length | 6 ft (1.83 m) |
Device Supported | TV |
Video Device | |
Projector | |
Monitor | |
Graphics Card | |
Shielding | Yes |
Features | Active |
Strain Relief | |
Molded | |
Eyefinity Technology | |
EMI/RF Protection | |
Cable Type | DisplayPort/VGA |
Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
Connector Type on Second End | HD-15 - Male |
Connector Plating | Nickel |
Supported Resolution | 1920 x 1200 |
Contact Plating | Gold |
Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
Connector on Second End Details | 1 x 15-pin HD-15 - Male |
