About the product
Sends Ultra High Definition Mini DisplayPort Audio/Video to DisplayPort Monitor or DisplayPort Audio/Video to Mini DisplayPort Monitor
- Connects mDP or Thunderbolt computer or laptop to DisplayPort monitor, TV or projector or connects the DisplayPort output on your computer or laptop to the Mini DisplayPort (mDP) or Thunderbolt input on your monitor, television or projector
- Recommended for displaying video on large monitor or digital sign
- No separate power adapter required
Vibrant Video Quality
- Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
- Meets DisplayPort 1.2 standards
- Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps
- Backward compatible with previous DisplayPort versions
Superior Materials for Superior Performance
- Locking DisplayPort connector prevents accidental disconnection
- Gold-plated connectors and contacts for maximum conductivity and minimum data loss
- Integral strain relief reduces stress and adds flexibility
- Allows connection between a DisplayPort device and a device with Mini DisplayPort (mDP) or Thunderbolt ports.
- Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
- Locking DisplayPort connector prevents accidental disconnection
- Gold-plated connectors and contacts for maximum conductivity
- Meets DisplayPort 1.2 standards
- Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps
- This product is covered by a Lifetime Limited Warranty
Technical Specifications
| Miscellaneous | |
| Compatibility | Connect your PC or Mac with Mini Displayport (or Thunderbolt) to a Displayport Monitor or TV |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.20 oz (90.72 g) |
| Shipping Height | 6" (152.40 mm) |
| Shipping Width | 4" (101.60 mm) |
| Product Color | White |
| Color Family | White |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P583006 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P583-006 |

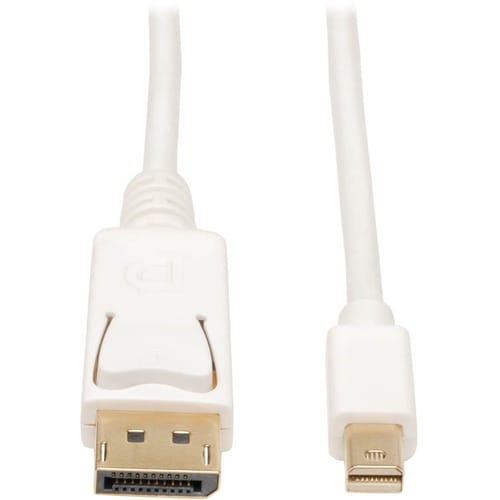

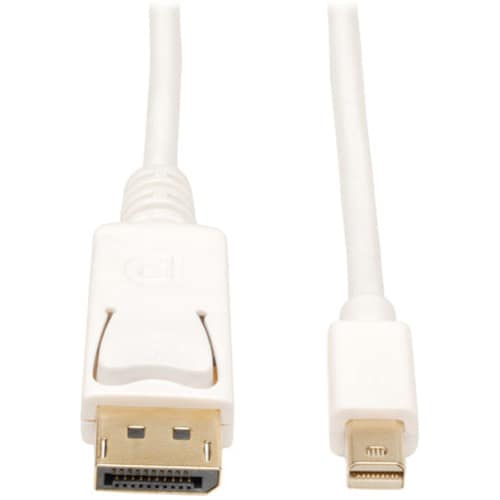

| Product Name | 6ft Mini Displayport to Displayport Cable |
| Brand Name | Tripp Lite series |
| Technical Information | |
| Cable Length | 6 ft (1.83 m) |
| Conductor | Copper |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Notebook |
| TV | |
| Projector | |
| Monitor | |
| Audio/Video Device | |
| Features | Flexible |
| Strain Relief | |
| Cable Type | DisplayPort/Mini DisplayPort |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | Mini DisplayPort 1.2 Thunderbolt Digital Audio/Video - Male |
| Connector Plating | Gold |
| Supported Resolution | 4096 x 2160 |
| Contact Plating | Gold |
| Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x Mini DisplayPort 1.2 Thunderbolt Digital Audio/Video - Male |
