About the product

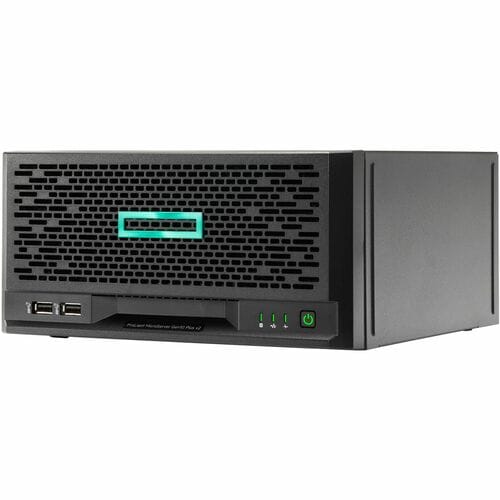

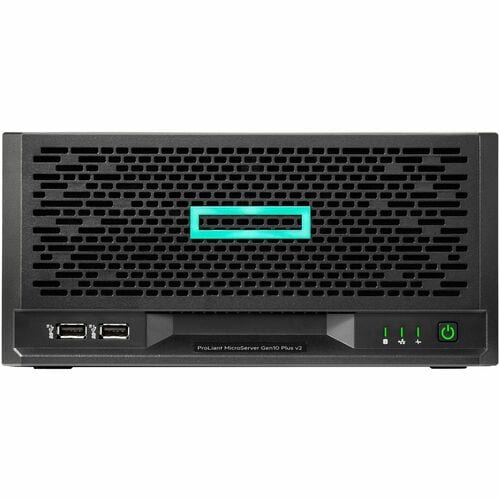

HPE ProLiant MicroServer Gen10 Plus v2
HPE ProLiant MicroServer Gen10 Plus v2 delivers an affordable compact yet powerful entry level server that you can customize for on-premises, hybrid cloud, or even workloads demanding datacenter performance. It has the same design as the previous version and can be placed flat or vertically depending on the customer environment. The latest Intel Xeon® E and Pentium® supported processors deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4x 1GbE onboard NICs and USB 3.2 Gen2 Type-A, whether you want a general-purpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- 1 x 180 W power supply unit (PSU) included
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 2.80 GHz processor
- 16 GB powerful memory for any computational task
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Server warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C252 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Model | VROC |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Weight (Approximate) | 15.87 lb (7200 g) |
| Form Factor | Ultra Micro Tower |
| Height | 4.68" (118.87 mm) |
| Width | 9.65" (245.11 mm) |
| Depth | 9.65" (245.11 mm) |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| "Number of 3.5"" Bays" | 4 |
| Total Number of Expansion Slots | 1 |
| Hot Swappable Bays | No |
| Number of LFF Bays | 4 |
| PCI Express Details | 1x standard (Low Profile) PCIe 4.0 |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 64 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Total Number of Memory Slots | 2 |
| Processor | |
| Cache | 8 MB |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon |
| Processor Model | E-2314 |
| Processor Core | Quad-core (4 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | P69101005 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant MicroServer Gen10 Plus v2 E-2314 4- core 1P 16GB-U VROC 4LFF-NHP 180W External PS Server |
| Product Line | ProLiant |
| Product Series | MicroServer Gen10 Plus v2 |
| Brand Name | HPE |
| Operating System | |
| Operating System Supported | Windows Server 2022 Standard |
| Windows Server 2022 Essentials | |
| Windows Server 2022 Datacenter | |
| Windows Server 2019 Standard | |
| Windows Server 2019 Essentials | |
| Red Hat Enterprise Linux 8.4 | |
| Windows Server 2019 Datacenter | |
| Hyper-V | |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | AC Adapter |
| Plug/Connector Type | C5 |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Redundant Power Supply | No |
| Maximum Power Supply Wattage | 180 W |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Number of DisplayPorts | 1 |
| Remote Management Controller | HPE iLO 5 ASIC |
