About the product

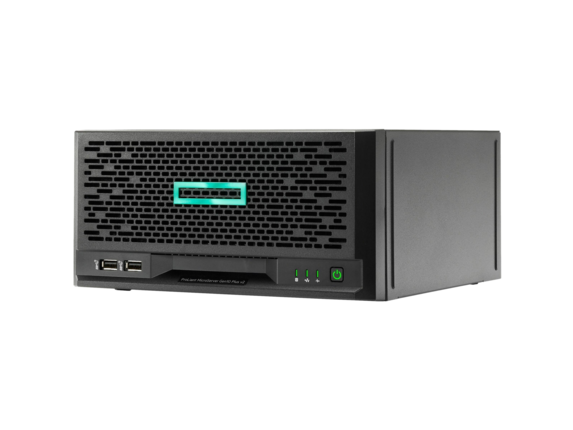

HPE ProLiant MicroServer Gen10 Plus v2 delivers an affordable compact yet powerful entry level server that you can customize for on-premises, hybrid cloud, or even workloads demanding datacenter performance. It has the same design as the previous version and can be placed flat or vertically depending on customer environment. The latest Intel Xeon E and Pentium supported processors deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4x 1GbE onboard NICs and USB 3.2 Gen2 Type-A, whether you want a generalpurpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.
Technical Specifications
| Primary Information | |
| System Type: | Server |
| Model: | HPE ProLiant Gen10 Plus v2 Server |
| Cabinet Form Factor: | Ultra Micro Tower |
| Processor / Type: | Xeon |
| Processor / Manufacturer: | Intel |
| Processor / Clock Speed: | 2.8 GHz |
| Max Turbo Frequency: | 4.5 GHz |
| Processor / Number: | E-2314 |
| Multi-Core Technology: | Quad-Core |
| Processor / Installed Qty: | 1 |
| Cache Memory Type: | Smart Cache |
| Cache Memory Installed Size: | 8 MB |
| Mainboard / Chipset Type: | Intel C252 |
| RAM / Technology: | DDR4 |
| RAM / Memory Speed: | 3200 MHz |
| RAM Form Factor: | UDIMM |
| RAM / Total Slots Qty: | 2 |
| RAM / Max Supported Size: | 64 GB |
| Networking Type: | Ethernet |
| Data Link Protocol: | Gigabit Ethernet |
| Network Controller: | Embedded 1Gb 4-Port Intel i350-AM4 Controller |
| Power / Device Type: | Power Supply |
| Power / Installed Qty: | 1 |
| Power / Provided (W): | 180 Watt |
| Power / Voltage Required: | 100 V AC to 240 VAC |
| Interfaces & Connections: | 1 Rear VGA port;1 Rear DisplayPort 1.1a;USB 2.0 Type-A Ports;USB 3.2 Gen 1 Type-A Ports;USB 3.2 Gen 2 Type-A Ports;RJ-45 |
| Front I/O Ports: | USB 3.2 Gen2 Type-A |
| Rear I/O Ports: | USB 3.2 Gen1 Type-A;USB 2.0 Type-A;DisplayPort 1.1a;VGA; |
| Width: | 9.65 Inch |
| Depth: | 9.65 Inch |
| Height: | 4.68 Inch |
| Service & Support Type: | 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response |
| Min Operating Temperature: | 10 Celsius |
| Max Operating Temperature: | 35 Celsius |
| Humidity Range Operating: | 8% to 90% |
| RAM | |
| RAM / Max Supported Size: | 64 GB |
| RAM / Technology: | DDR4 |
| RAM / Memory Speed: | 3200 MHz |
| RAM Form Factor: | UDIMM |
| RAM / Total Slots Qty: | 2 |
| Processor | |
| Processor / Type: | Xeon |
| Processor / Manufacturer: | Intel |
| Processor / Clock Speed: | 2.8 GHz |
| Max Turbo Frequency: | 4.5 GHz |
| Processor / Number: | E-2314 |
| Multi-Core Technology: | Quad-Core |
| Processor / Installed Qty: | 1 |
| Cache Memory Type: | Smart Cache |
| Cache Memory Installed Size: | 8 MB |
| Networking | |
| Networking Type: | Ethernet |
| Data Link Protocol: | Gigabit Ethernet |
| Power | |
| Power / Device Type: | Power Supply |
| Power / Installed Qty: | 1 |
| Power / Provided (W): | 180 Watt |
| Power / Voltage Required: | 100 V AC to 240 VAC |
| Expansion | |
| Interfaces & Connections: | 1 Rear VGA port;1 Rear DisplayPort 1.1a;USB 2.0 Type-A Ports;USB 3.2 Gen 1 Type-A Ports;USB 3.2 Gen 2 Type-A Ports;RJ-45 |
| Front I/O Ports: | USB 3.2 Gen2 Type-A |
| Rear I/O Ports: | USB 3.2 Gen1 Type-A;USB 2.0 Type-A;DisplayPort 1.1a;VGA; |
| Dimensions&Miscellaneous | |
| Width: | 9.65 Inch |
| Depth: | 9.65 Inch |
| Height: | 4.68 Inch |
