About the product

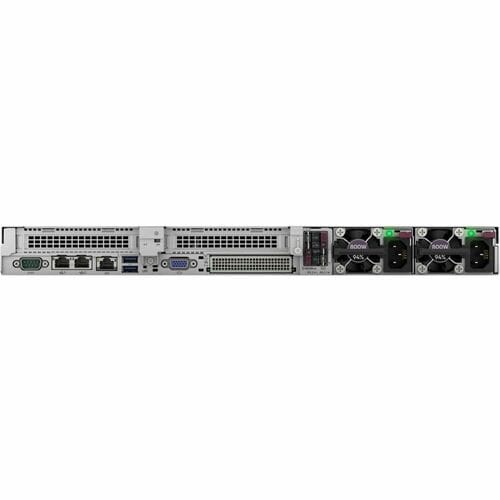

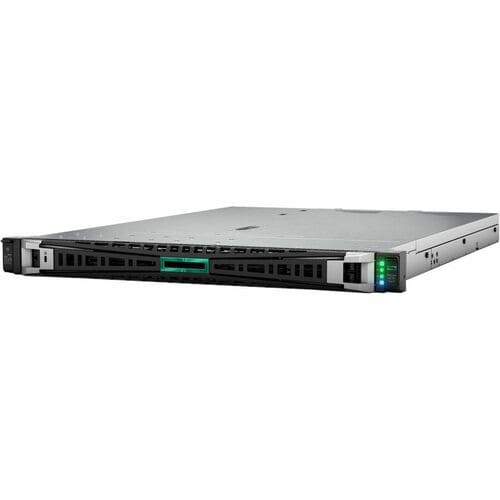

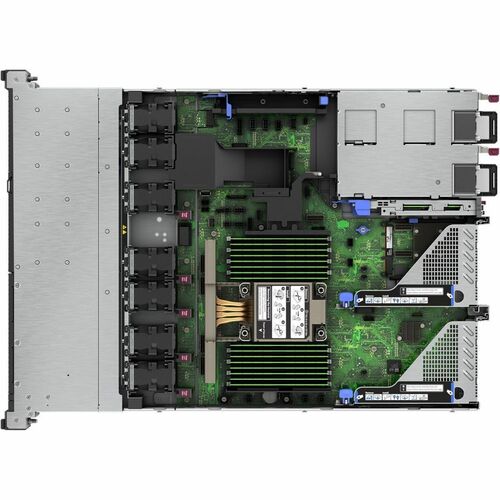

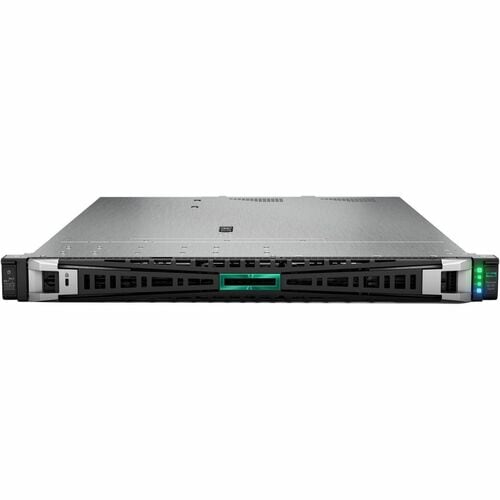

HPE ProLiant DL320 Gen11
Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads.
Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores and 270W, increased memory capability (up to 2 TB 5200 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
- Gigabit Ethernet port for ultra-fast network speeds
- 800 W power supply unit (PSU) included
- 64 GB powerful memory for any computational task
Technical Specifications
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controllers | |
| Controller Type | NVMe |
| Controller Model | NS204i-u |
| Physical Characteristics | |
| Weight (Approximate) | 36.84 lb (16710 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.80 mm) |
| Width | 17.11" (434.60 mm) |
| Depth | 23.82" (605.10 mm) |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 9 |
| Number of Media Drive Bays | 1 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 1 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot as default. 1 x16 FHHL PCIe Gen5 optional |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of VGA Ports | 1 |
| Remote Management Controller | HPE iLO6 |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 2.04 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 2 |
| Total Number of Memory Slots | 16 |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Operating System | |
| Operating System Supported | CentOS |
| Citrix XenServer | |
| Oracle Linux | |
| Windows Server | |
| SuSE Linux Enterprise Server | |
| Ubuntu | |
| Red Hat Enterprise Linux | |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | P69302005 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL320 G11 Server |
| Product Line | ProLiant |
| Product Series | DL320 G11 |
| Brand Name | HPE |
| Processor | |
| Cache | 30 MB |
| Processor Speed | 2 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 5416S |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
