About the product

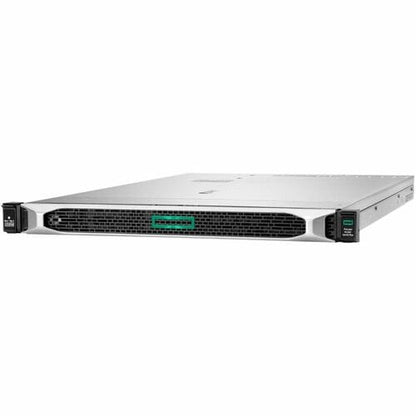

HPE ProLiant DL360 Gen10 Plus server
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 Smart Memory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- 800 W power supply unit (PSU) included
- With 128 GB memory, users can run multiple programs simultaneously without losing performance
- 960 GB SSD provides you with sufficient space to store your data and files
Technical Specifications
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Serial ATA | |
| RAID Supported | Yes |
| Controller Model | MR416i-a Gen10 Plus |
| Storage | |
| Solid State Drive Interface | Serial ATA |
| Solid State Drive Configuration | 2 x 480GB |
| Total Solid State Drive Capacity | 960 GB |
| Number of Solid State Drives | 2 |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 2 PCIe: 1 x16 FH, 1 x16 LP |
| Physical Characteristics | |
| Weight (Approximate) | 39.93 lb (18110 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.93 mm) |
| Width | 17.11" (434.59 mm) |
| Depth | 29.21" (741.93 mm) |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 2 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 4 |
| Intel Optane Memory Ready | Yes |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | P69749005 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL360 G10 Plus Server |
| Product Line | ProLiant |
| Product Series | DL360 G10 Plus |
| Brand Name | HPE |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Number of VGA Ports | 1 |
| Remote Management Controller | HPE iLO 5 |
| Processor | |
| Cache | 24 MB |
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4314 |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
| Operating System | |
| Operating System Supported | Hyper-V |
| Windows Server 2022 Standard | |
| Oracle Linux 7.9 | |
| Oracle Linux 8.2 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8.2 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Ubuntu 20.04 LTS x64 | |
| Windows Server 2016 Datacenter | |
| Windows Server 2016 Essential | |
| Windows Server 2016 Standard | |
| Windows Server 2019 Datacenter | |
| Windows Server 2019 Essentials | |
| Windows Server 2019 Standard | |
| Windows Server 2022 Datacenter | |
| Windows Server 2022 Essentials | |
| Oracle Linux |
