About the product

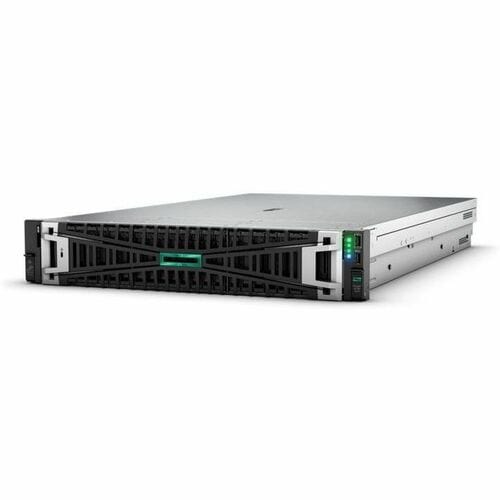

HPE ProLiant DL380 Gen11
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen11 Servers delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- 2 x 1 kW power supply unit (PSU) included
- RAID provides data reliability, fault tolerance and improves overall performance
- 128 GB memory enables you to do multitasking and run intensive applications lag-free
- 960 GB SSD is enough to store all your digital content and files
Technical Specifications
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| Controller Model | MR408i-o Gen11 |
| Storage | |
| Solid State Drive Interface | Serial ATA/600 |
| Solid State Drive Configuration | 2 x 480GB |
| Total Solid State Drive Capacity | 960 GB |
| Number of Solid State Drives | 2 |
| Memory | |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 4 |
| Operating System | |
| Operating System Supported | Oracle Linux |
| Red Hat Enterprise Linux | |
| Windows Server | |
| Ubuntu Server | |
| SuSE Linux Enterprise Server | |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 3-slots (x8, x16, x8) as standard |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Weight (Approximate) | 72.75 lb (33000 g) |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.64" (448 mm) |
| Depth | 28.62" (727 mm) |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | P72982-005 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL380 G11 Server |
| Product Line | ProLiant |
| Product Series | DL380 G11 |
| Brand Name | HPE |
| Processor | |
| Cache | 30 MB |
| Processor Speed | 2 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4514Y |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 5th Gen |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Remote Management Controller | HPE iLO 6 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 1 kW |
