About the product

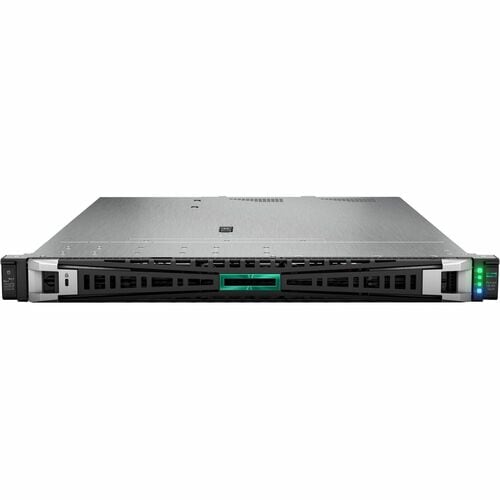

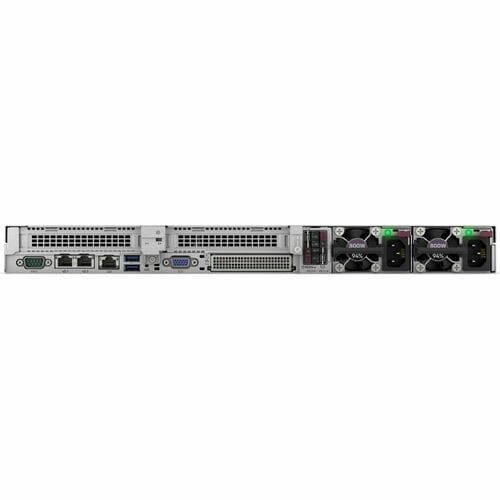

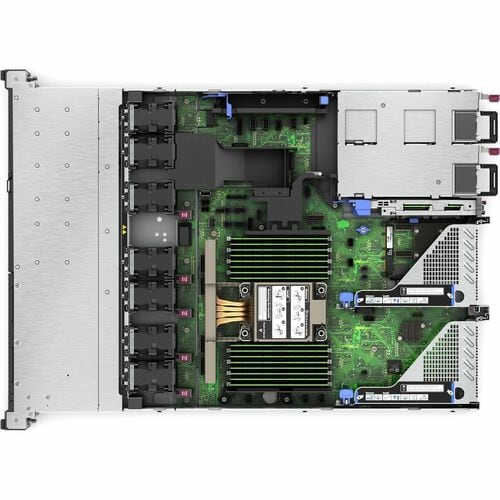

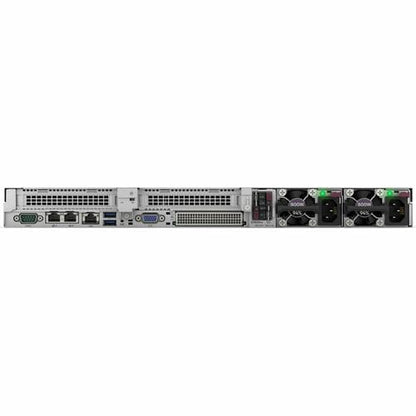

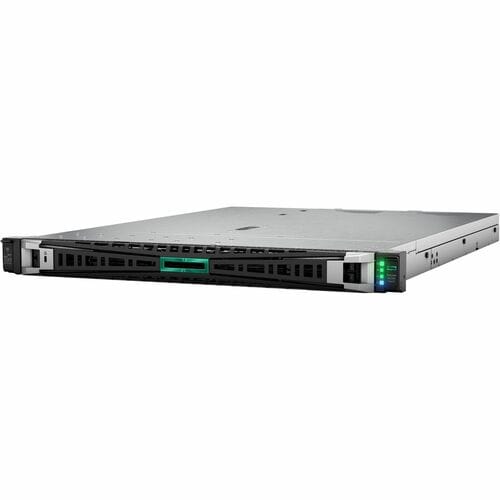

HPE ProLiant DL320 Gen11
Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads.
Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores and 270W, increased memory capability (up to 2 TB 5200 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- 1 kW power supply unit (PSU) included
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 6, 10, 50, 60)
- With 128 GB memory, users can run multiple programs simultaneously without losing performance
- 7.20 TB HDD provides you with ample space for storing documents and installing all your important applications
- 3.84 TB SSD for spacious storage with faster data transfer speeds than standard hard drives. It can hold tons of digital content, files and documents.
Technical Specifications
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Physical Characteristics | |
| Weight (Approximate) | 36.84 lb (16710 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Controllers | |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| Controller Model | MR416i-o |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 10 |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 10 |
| PCI Express Details | 1 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot as default. 1 x16 FHHL PCIe Gen5 optional |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of VGA Ports | 1 |
| Remote Management Controller | HPE iLO6 |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 2.04 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 2 |
| Total Number of Memory Slots | 16 |
| Operating System | |
| Operating System Supported | Oracle Linux |
| Red Hat Enterprise Linux | |
| SuSE Linux Enterprise Server | |
| Citrix XenServer | |
| Windows Server | |
| CentOS | |
| Ubuntu | |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | P78100-005 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL320 G11 Server |
| Product Line | ProLiant |
| Product Series | DL320 G11 |
| Brand Name | HPE |
| Processor | |
| Cache | 160 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 6530 |
| Processor Core | Dotriaconta-core (32 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Generation | 5th Gen |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 1 kW |
| Storage | |
| Hard Drive Interface | 12Gb/s SAS |
| Hard Drive RPM | 10000 |
| Solid State Drive Interface | Serial ATA/600 |
| Number of Hard Drives | 3 |
| Total Hard Drive Capacity | 7.20 TB |
| Hard Drive Configuration | 3 x 2.4TB |
| Solid State Drive Configuration | 2 x 1.92TB |
| Total Solid State Drive Capacity | 3.84 TB |
| Number of Solid State Drives | 2 |
