About the product
The ViewSonic PA503S offers impressive visual performance to improve presentations, ideal for use in small business meeting rooms and classrooms. Packed with 3500 ANSI Lumens of brightness and a 22,000:1 contrast ratio, this projector is guaranteed to reproduce the finest of details regardless of the amount of ambient lighting present. ViewSonic exclusive SuperColor technology offers a wider range of displayable color for projected images with true-to-life color accuracy. Users can choose from 5 color modes, including standard, brightest, presentation, photo, and movie mode, to select the mode that best suits their needs based on their usage scenario. In addition, the energy-saving SuperEco mode of PA503S reduces power consumption and extends the lamp life by up to 15,000 hours.
Technical Specifications
| Primary Information | |
| Model: | PA503S |
| Display Type: | DLP Projector |
| Image Brightness: | 3500 ANSI lumen |
| Native Resolution: | 800 x 600 |
| Display / Color Support: | 1.07 Billion Colors |
| Image Contrast Ratio: | 22000:1 |
| Image Aspect Ratio: | 4:3 |
| Throw Ratio: | 1.96-2.15 |
| Min Image Size: | 30 Inch |
| Max Image Size: | 300 Inch |
| Min Throw Distance: | 1.19 M |
| Max Throw Distance: | 13.11 M |
| OSD Languages: | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese |
| Optical Zoom: | 1.1 x |
| Keystone Correction Direction: | YES |
| Vertical Keystone Correction: | +/-40 degrees |
| Video Input: | Computer in (share with component):2Composite:1Audio-in (3.5mm):1HDMI:1 (Back) |
| Color: | White |
| Sound Emission: | 27 dB |
| Speakers: | 1 x 2W |

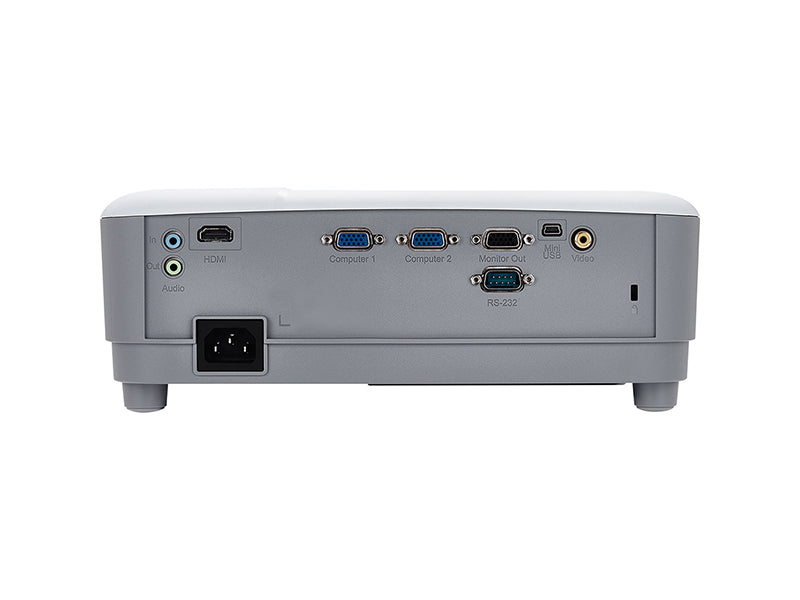

| Interfaces: | INPUT:Computer in (share with component):2;Composite:1;Audio-in (3.5mm):1;HDMI:1 (Back);OUTPUT:Monitor out:1;Audio out (3.5mm):1;CONTROL:RS232:1;USB type mini B (Services):1 |
| Power / Device Type: | Power Supply |
| Power Consumption Operational: | 260 Watt |
| Power Consumption Standby: | <0.5W |
| Power / Voltage Required: | 100-240V+/- 10%, 50/60Hz AC |
| Enclosure Color: | White |
| Width: | 294 Mm |
| Depth: | 218 Mm |
| Height: | 110 Mm |
| Weight: | 4.89 lbs. |
| Features: | Extended Lifespan;Automatic Sleep Timer;Auto Power Off;Bright Images in Any Environment;Amazing Color AccuracyFine-Tuned Viewing |
| Audio&Video | |
| Audio Output: | 3.5mm |
| General | |
| Lamp Power: | 190 Watt |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 40 Celsius |
| Sound Emission: | 27 dB |
| COO: | CHINA |
| Image | |
| Image Brightness: | 3500 ANSI lumen |
| Native Resolution: | 800 x 600 |
| Image Contrast Ratio: | 22000:1 |
| Image Aspect Ratio: | 4:3 |
| Throw Ratio: | 1.96-2.15 |
| Min Image Size: | 30 Inch |
| Max Image Size: | 300 Inch |
| Min Throw Distance: | 1.19 M |
| Max Throw Distance: | 13.11 M |
| Lens | |
| Optical Zoom: | 1.1 x |
| Keystone Correction Direction: | YES |
| Vertical Keystone Correction: | +/-40 degrees |
| Video Input | |
| Video Input: | Computer in (share with component):2Composite:1Audio-in (3.5mm):1HDMI:1 (Back) |
