About the product

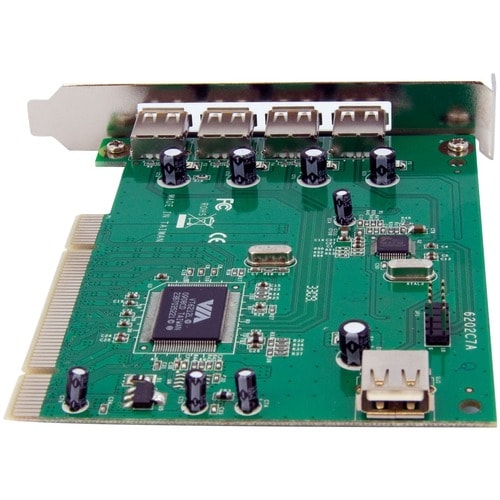

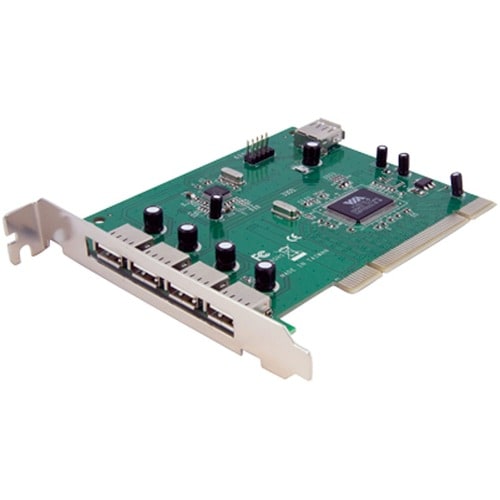

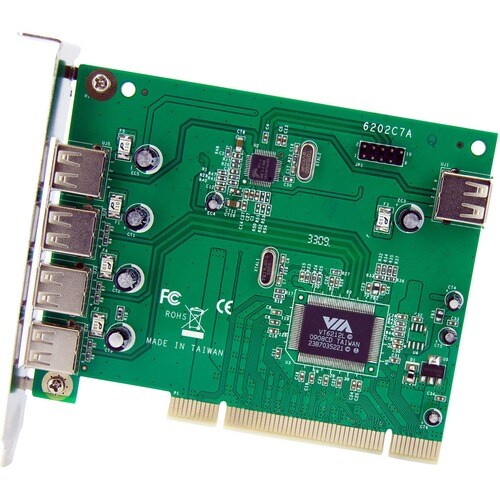

This PCI USB card adds seven USB 2.0 ports (1 internal USB A Female, 2 internal USB motherboard header, and 4 external USB A Female) to your PCI-capable PC.
The PCI USB 2.0 card is a versatile solution that lets you add USB 2.0 connections without having to upgrade the system motherboard.
An all-in-one solution, the PCI USB card supports USB 2.0 device connections for full data transfer speeds of up to 480Mbps, and is backward compatible with USB 1.1 devices (max. transfer rate 12Mbps), allowing you to connect any USB device to the computer without having to worry about compatibility issues.
Designed and constructed to provide long-lasting USB capability, the adapter card is backed by StarTech.com's free lifetime technical support.
More from the Manufacturer

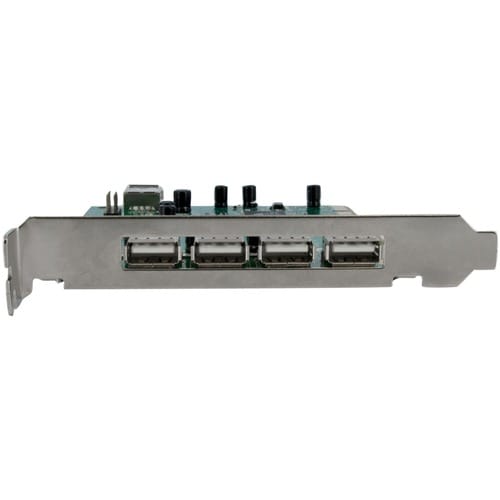

- 4 external USB 2.0 ports and 3 internal USB 2.0 port/headers
- High Speed USB 2.0 compliant, with support for data transfer rates up to 480Mbps
- Backwards compatible with USB1.1/1.0 devices
- Up to 500mA of power per port
- Compliant with USB EHCI revision 0.95 and UHCI 1.1 specifications
- Compliant with PCI revision 2.2 specification
- Supports up to 127 USB devices (requires addition USB hubs)
- Plug-and-Play and Hot-Swap compatible
Technical Specifications
| Media & Performance | |
| Data Transfer Rate | 480 MB/s |
| Technical Information | |
| Host Interface | PCI |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 7 |
| Physical Characteristics | |
| Weight (Approximate) | 2.60 oz (73.71 g) |
| Form Factor | Plug-in Card |
| Length | 4.80" (121.92 mm) |
| Height | 0.80" (20.32 mm) |
| Width | 4.72" (119.89 mm) |
| General Information | |
| Product Type | USB Adapter |
| Manufacturer Part Number | PCIUSB7 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 7 Port PCI USB Card Adapter |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Platform Supported | PC |
| Linux | |
| Mac | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
