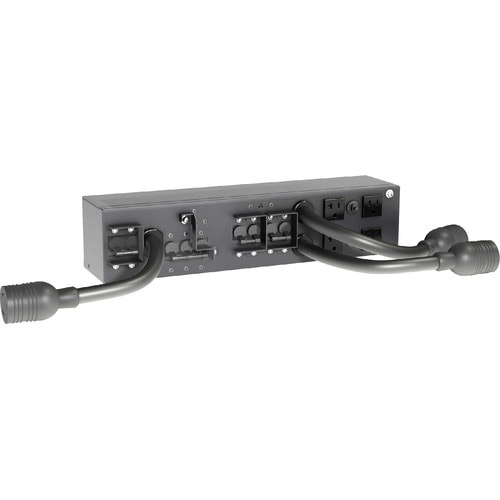

About the product
For installation flexibility, Vertiv Liebert GXT4 5-6kVA UPS models allow you to choose from several different input/output power wiring configurations made possible by the use of removable power output distribution boxes (PODs) that simply plug into the rear of the UPS. When the ease of plug-and-play power connections is desired, optional versions of the power distribution box convert Vertiv Liebert GXT4 5-6kVA UPS units to a cord-type input with receptacles for output distribution, and also offers maintenance bypass capability that allows hot-swapping of the entire UPS without interruption of power to the connected load.
- Input power connector: L14-30, output receptacles: four 5-20, one L14-30, one L6-30R
- Designed for Vertiv Liebert GXT4 5-6kVA RT208 UPS
- 10.5 ft. power cable
- Circuit breaker
- Built-in maintenance bypass
Technical Specifications
| Miscellaneous | |
| Additional Information | Maintenancy bypass |
| Compatibility | Liebert UPS Systems:
|
| Physical Characteristics | |
| Weight (Approximate) | 11 lb (4989.52 g) |
| Mount Type | Rack-mountable |
| Height | 3.50" (88.90 mm) |
| Width | 5.20" (132.08 mm) |
| Depth | 15.50" (393.70 mm) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PD2-001 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | PD2-001 |
| Product Name | PD2-001 6-Outlets PDU |
| Brand Name | Vertiv Liebert |
| Technical Information | |
| Plug/Connector Type | NEMA L14-30P |
| Receptacle Type | NEMA 5-15R/20R |
| NEMA L14-30R | |
| NEMA L6-30R | |
| Receptacle Detail | 4 x NEMA 5-15R/20R |
| 1 x NEMA L6-30R | |
| 2 x NEMA L14-30R | |
| Plug/Connector Detail | 1 x NEMA L14-30P |
