About the product

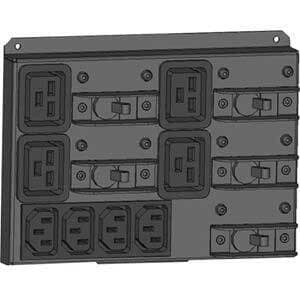

The Vertiv Liebert POD PD2-200 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA & GXT5 16-20kVA uninterruptible power supply (UPS) models, it is a POD that allows you to conduct UPS maintenance or replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures, saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-200 is a plug-and-play unit that will replace the existing POD box on your UPS. It has four (4) IEC320-C19 and four (4) IEC320-C13 output connectors and is equipped with a Hardwire 3W + G(L-L-N-G) input connector. It also has circuit breakers and supports a max current of 63A.
Technical Specifications
| Miscellaneous | |
| Additional Information | Power distribution |
| Power Description | |
| Input Current | 63 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
| Height | 5.70" (144.78 mm) |
| Width | 7.40" (187.96 mm) |
| Technical Information | |
| Plug/Connector Type | Hardwire Terminal Block 3W + G |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Receptacle Detail | 4 x IEC 60320 C19 |
| 4 x IEC 60320 C13 | |
| Plug/Connector Detail | 1 x Hardwire Terminal Block 3W + G |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PD2-200 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | PD2-200 |
| Product Name | PD2-200 8-Outlets PDU |
| Brand Name | Vertiv Liebert |
