About the product

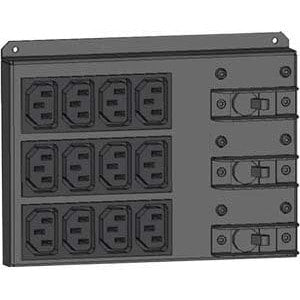

The Vertiv Liebert POD PD2-202 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA & GXT5 16-20kVA uninterruptible power supply (UPS) models, it is a POD that allows you to conduct UPS maintenance or replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures, saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-202 is a plug-and-play unit that will replace the existing POD box on your UPS. It has twelve (12) IEC320-C13 output connectors and is equipped with a Hardwire 3W + G(L-L-N-G) input connector. It also has circuit breakers and supports a max current of 63A.
- Input power: hardwire 4-wire connector, output receptacles: twelve IEC320-C13
- Designed for Vertiv Liebert GXT4 5-6kVA RT208 UPS
- hardwire input 3W+G (L-L-N-G)
- Circuit breaker
- Built-in maintenance bypass
Technical Specifications
| Miscellaneous | |
| Additional Information | Power distribution |
| Power Description | |
| Input Current | 63 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
| Height | 5.70" (144.78 mm) |
| Width | 7.40" (187.96 mm) |
| Technical Information | |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Plug/Connector Detail | 1 |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PD2-202 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | PD2-202 |
| Product Name | PD2-202 12-Outlets PDU |
| Brand Name | Vertiv Liebert |
