About the product

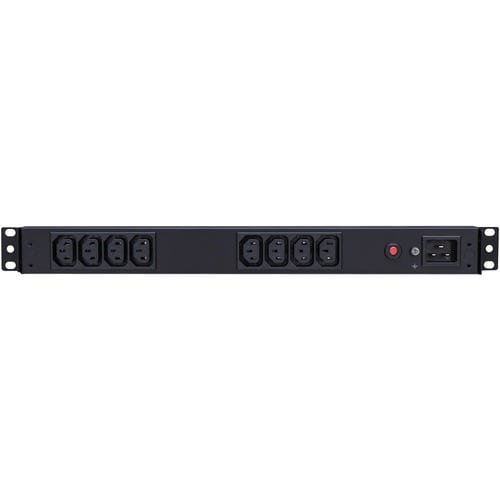

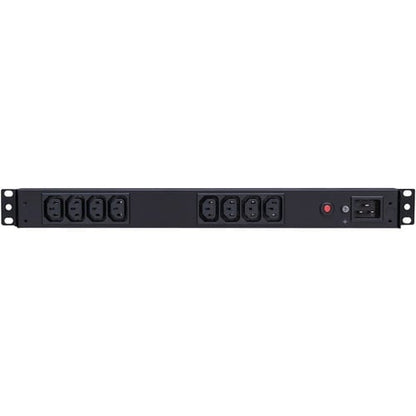

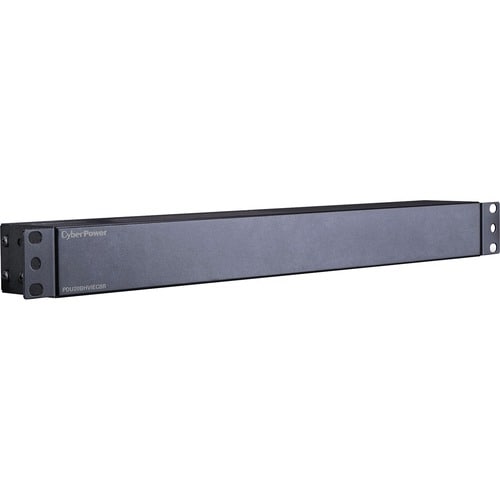

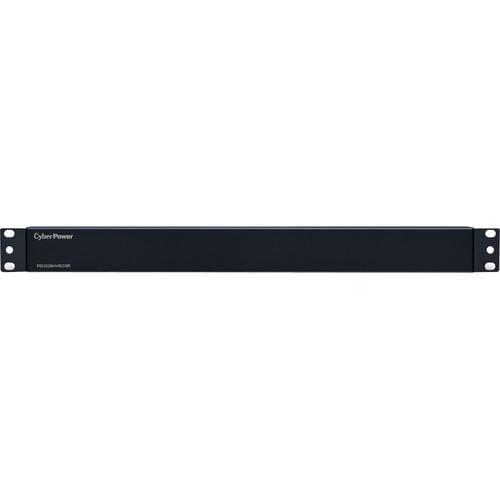

The CyberPower Basic PDU20BHVIEC8R 8-Outlets PDU provides 208V/230V 20A output. It distributes power to 8 IEC receptacles from a single IEC 60320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship. 8 ICE-320 C13 output receptacles. Single IEC-320 C20 plug. 20-amp electrical capacity with circuit breaker. 208/230V - 50/60Hz. 1U rack mount. Rugged, industrial-grade metal housing. 10-ft. power cord. Lifetime warranty.
- Basic PDU
- 8 IEC-320 C13 output receptacles
- 200/230V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
- 1U Rack Mount - Rugged industrial-grade metal housing
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 208 V AC | |
| 200 V AC | |
| Input Voltage Range | 200 V AC - 230 V AC |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Basic |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Physical Characteristics | |
| Weight (Approximate) | 1.81 lb (821 g) |
| Length | 1.50" (38.10 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU20BHVIEC8R |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU20BHVIEC8R |
| Product Name | Basic PDU20BHVIEC8R 8-Outlets PDU |
| Product Series | Basic PDU |
| Brand Name | CyberPower |
