About the product

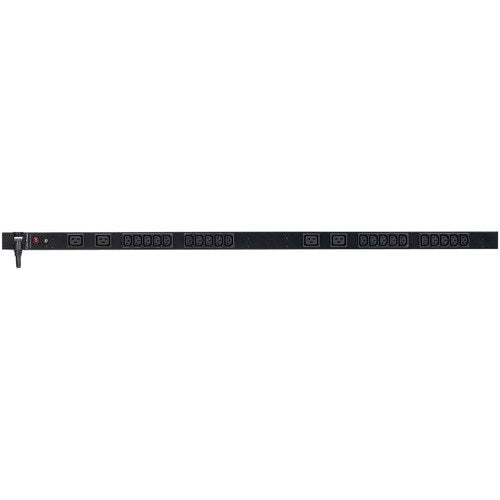

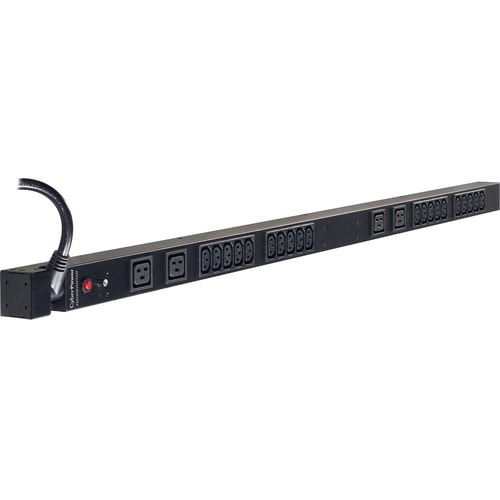

The CyberPower 24-outlet (24 Front) 0U vertical rack mount basic power distribution unit (PDU20BVHVT24F) provides 200/230V 20A output. It distributes power to 24 IEC-320 (4-C19 and 20-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 24-outlet vertical rack mount basic PDU
- Rugged, industrial-grade metal housing
- 24-outlet vertical rack mount basic PDU
- Rugged, industrial-grade metal housing
Technical Specifications
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 7.30 lb (3311.22 g) |
| Length | 1.50" (38.10 mm) |
| Mount Type | Rack-mountable |
| Height | 48" (1219.20 mm) |
| Width | 1.75" (44.45 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU20BVHVT24F |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU20BVHVT24F |
| Product Name | Basic PDU20BVHVT24F 24-Outlets PDU |
| Brand Name | CyberPower |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Basic |
| Receptacle Detail | 20 x IEC 60320 C13 |
| 4 x IEC 60320 C19 |
