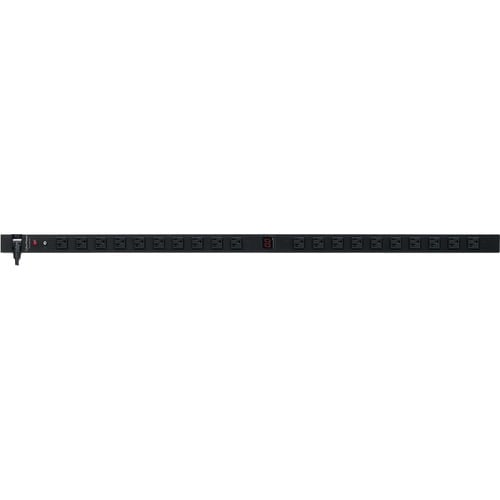

Cyber Power CyberPower PDU20MV20F 20-Outlets PDU - Metered - NEMA 5-20

The CyberPower PDU20MV20F, a 20-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 - 125 V 20A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA 5-20P plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Designed for datacenters and other electrically demanding applications, the PDU20MV20F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU20MV20F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.

Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

What's In The Box

PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card

• Metered PDU
• 20 NEMA 5-20R (20 Front) output receptacles
• 120V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
• 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
