Product information summary
![[{"title":"METERED PDU 200 230V 20A C20 NEED FREIGHTQUOTE FOR BELOW 10K PO"}]](http://www.digitizerglobal.com/cdn/shop/files/1017229335.jpg?v=1745939952&width=3200)
About the product

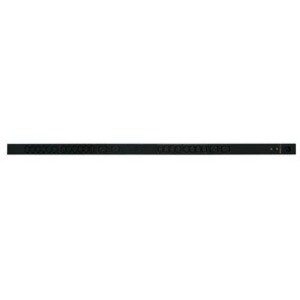

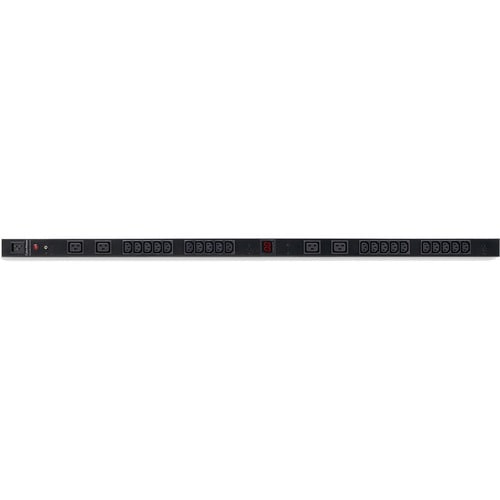

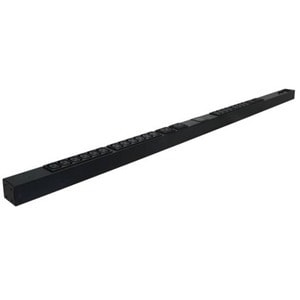

The CyberPower 24-outlet (24 Front) 0U vertical rack mount metered power distribution unit (PDU20MVHVIEC24F) provides 200/230V 20A output. It distributes power to 24 IEC-320 (4-C19 and 20-C13) receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- Metered PDU
- 24 IEC-320 (4-C19 and 20-C13) output receptacles
- 200/230V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
- 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
Technical Specifications
Miscellaneous | |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Power Description | |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Physical Characteristics | |
Weight (Approximate) | 6.58 lb (2984.64 g) |
Mount Type | Rack-mountable |
Height | 48" (1219.20 mm) |
Width | 1.75" (44.45 mm) |
Depth | 2.25" (57.15 mm) |
Mounting Orientation | Vertical |
Technical Information | |
Protection Type | Overload Protection |
Plug/Connector Type | IEC 60320 C20 |
Receptacle Type | IEC 60320 C19 |
IEC 60320 C13 | |
Receptacle Detail | 4 x IEC 60320 C19 |
20 x IEC 60320 C13 | |
General Information | |
Product Type | PDU |
Manufacturer Part Number | PDU20MVHVIEC24F |
Manufacturer Website Address | https://www.cyberpowersystems.com/ |
Manufacturer | CyberPower Systems, Inc |
Product Model | PDU20MVHVIEC24F |
Product Name | Metered PDU20MVHVIEC24F 24-Outlets PDU |
Brand Name | CyberPower |
