About the product

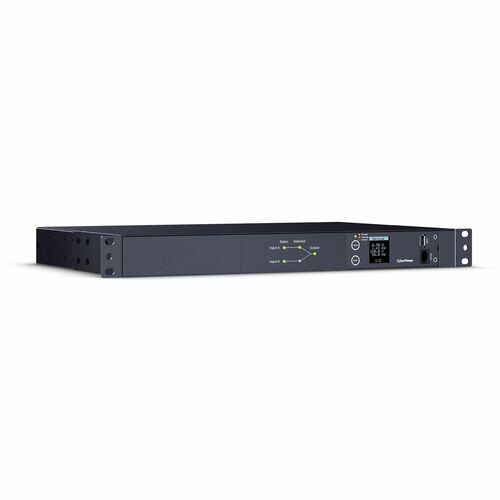

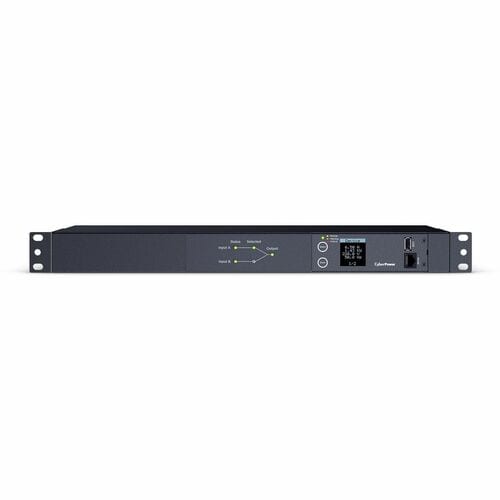

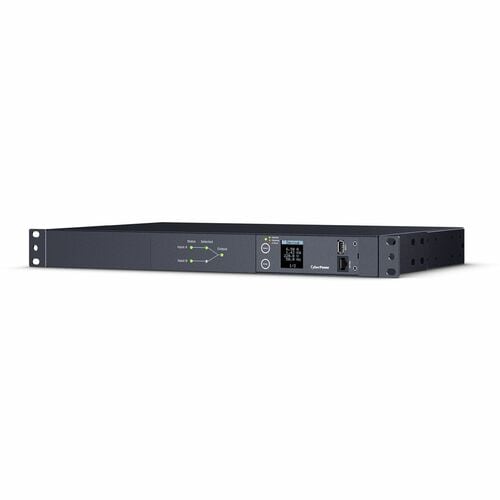

Ensure continued operation of critical devices with the CyberPower PDU24002 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
The PDU24002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P (L5-20P to non-locking 5-20P adpaters included) power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24002 is protected by a three-year limited warranty.
- Phase: Single
- Amps: 15A (Derated to 12A)
- Volts: 200-240V
- Frequency: 50/60Hz
- Plug type: 2 x IEC-320 C14

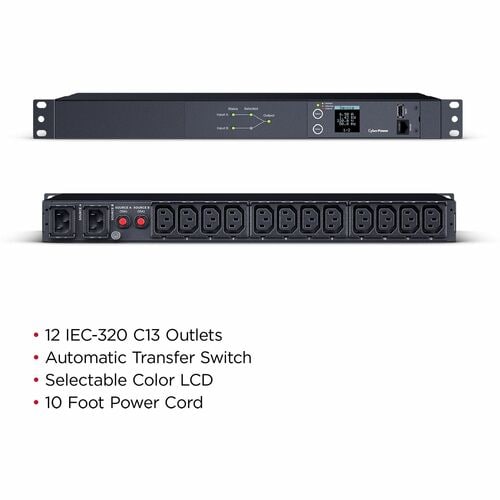

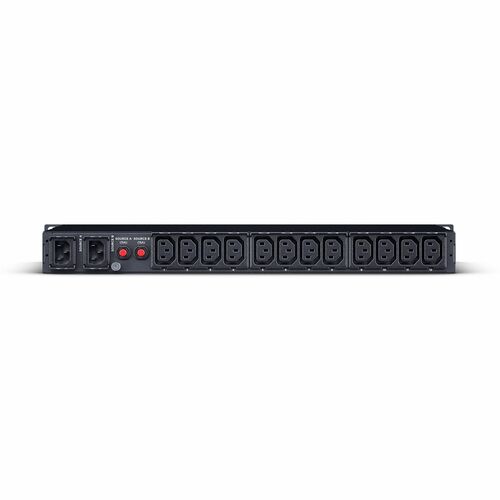

- Outlets: 12 x IEC-320 C13
- Size: 1U Rackmount
- Warranty: 3 year
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 131°F (55°C) |
| Miscellaneous | |
| Additional Information |
|
| Application/Usage | Network Device |
| Data Center | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC |
| 240 V AC | |
| Input Current | 15 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Frequency | 60 Hz |
| Output Voltage Range | 200 V AC - 240 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU24004 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU24004 |
| Product Name | Metered ATS PDU PDU24004 12-Outlets PDU |
| Product Series | Metered ATS PDU |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 7.41 lb (3360 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 10 ft (3.05 m) |

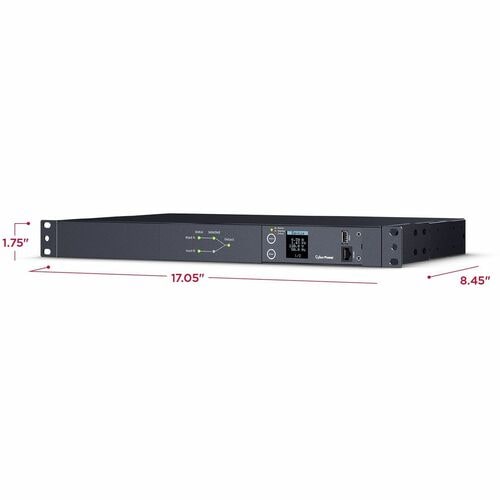

| Height | 1.75" (44.45 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 8.45" (214.63 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | LED Status Indicator |
| Protection Type | Overload Protection |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Design | Modular |
| PDU Type | Metered |
| Locking Receptacles | Cord Retention Tray |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Plug/Connector Detail | 2 x IEC 60320 C14 |
