Cyber Power CyberPower Metered ATS PDU PDU24006 10-Outlets PDU - Meter
Cyber Power CyberPower Metered ATS PDU PDU24006 10-Outlets PDU - Meter
VPN:PDU24006 SKU:RSC227069 UPC:649532933945
- Electric power fitted to racks of computers and networking equipment within a data center
- You can always avoid potential overloads with PDU meter
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details





Recently Viewed
Cyber Power CyberPower Metered ATS PDU PDU24006 10-Outlets PDU - Meter
Product information summary

About the product

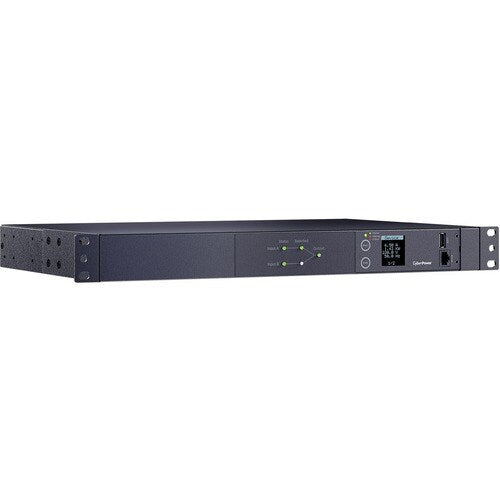

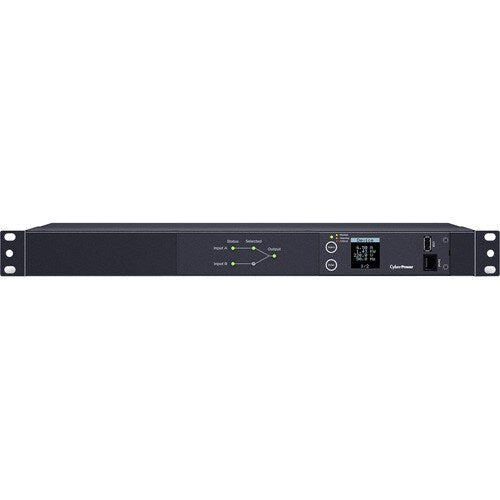

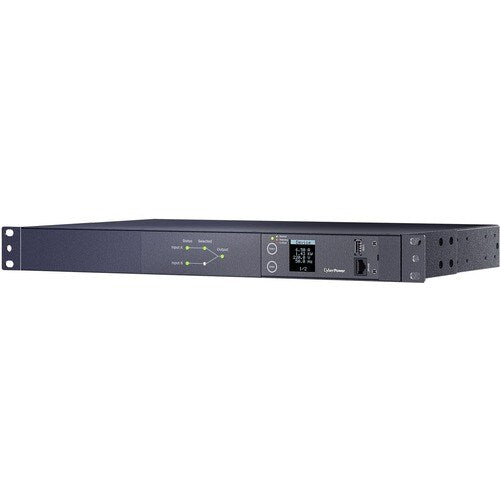

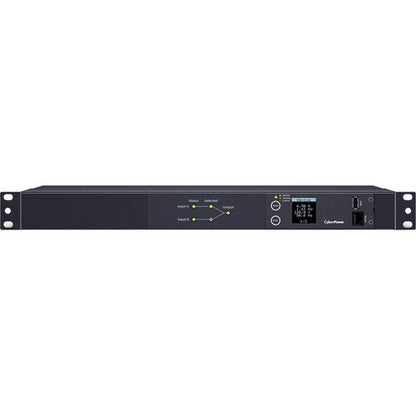

Ensure continued operation of critical devices with the CyberPower PDU24006 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

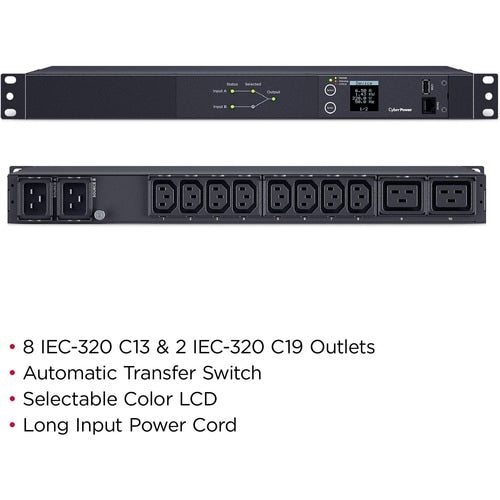

The PDU24006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24006 is protected by a three-year limited warranty.
- Electric power fitted to racks of computers and networking equipment within a data center
- You can always avoid potential overloads with PDU meter
Technical Specifications
Interfaces/Ports | |
Network (RJ-45) | Yes |
Miscellaneous | |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Power Description | |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Input Current | 20 A |
Input Voltage Range | 200 V AC - 240 V AC |
Output Voltage Range | 200 V AC - 240 V AC |
General Information | |
Product Type | PDU |
Manufacturer Part Number | PDU24006 |
Manufacturer Website Address | https://www.cyberpowersystems.com/ |
Manufacturer | CyberPower Systems, Inc |
Product Model | PDU24006 |
Product Name | Metered ATS PDU PDU24006 10-Outlets PDU |
Product Series | Metered ATS PDU |
Brand Name | CyberPower |
Physical Characteristics | |
Weight (Approximate) | 11 lb (4990 g) |
Mount Type | Rack-mountable |
Rack Height | 1U |

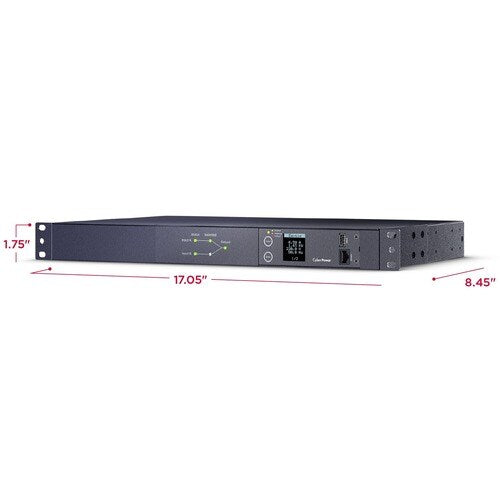

Height | 1.75" (44.50 mm) |
Width | 17.05" (433.10 mm) |
Depth | 8.45" (214.60 mm) |
Mounting Orientation | Horizontal |
Product Color | Black |
Color Family | Black |
Technical Information | |
Protection Type | Overload Protection |
Plug/Connector Type | NEMA L6-20P |
Phase | Single Phase |
Receptacle Type | IEC 60320 C19 |
IEC 60320 C13 | |
PDU Type | Metered |

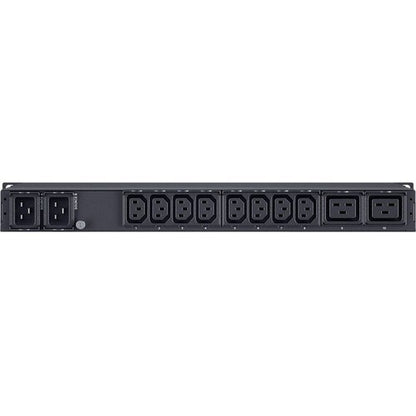

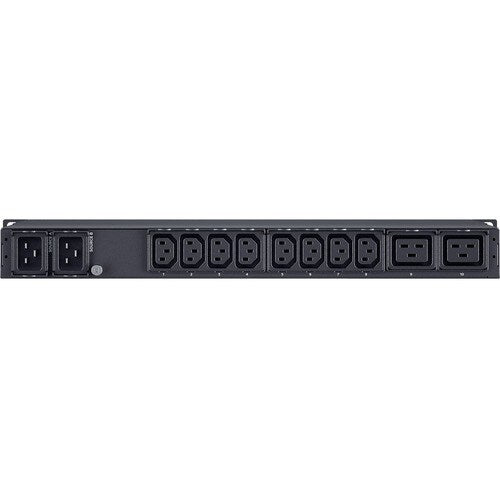

Receptacle Detail | 8 x IEC 60320 C13 |
2 x IEC 60320 C19 | |
Plug/Connector Detail | 2 x NEMA L6-20P |
