Rack Equipments

Expected delivery 3 to 7 business days (exceptions applied)

Cyber Power

Cyber Power CyberPower Metered ATS PDU PDU24007 19-Outlets PDU - Meter

Cyber Power CyberPower Metered ATS PDU PDU24007 19-Outlets PDU - Meter

Regular price $1,118.22 CAD
Regular price $1,252.41 CAD Sale price $1,118.22 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Cyber Power CyberPower Metered ATS PDU PDU24007 19-Outlets PDU - Metered - NEMA L6-30P - 16 x IEC 60320 C13, 2 x IEC 60320 C19, 1 x NEMA L6-30R - 230 V AC - Network (RJ-45) - 2U - Horizontal - Rack-mountable

VPN:PDU24007 SKU:RSC586099 UPC:649532933952

Please see below description

Volume discount available - Ask for quote..

View full details

Recently Viewed

Cyber Power CyberPower Metered ATS PDU PDU24007 19-Outlets PDU - Meter

Product information summary

Cyber Power CyberPower Metered ATS PDU PDU24007 19-Outlets PDU - Meter

About the product

Ensure continued operation of critical devices with the CyberPower PDU24007 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

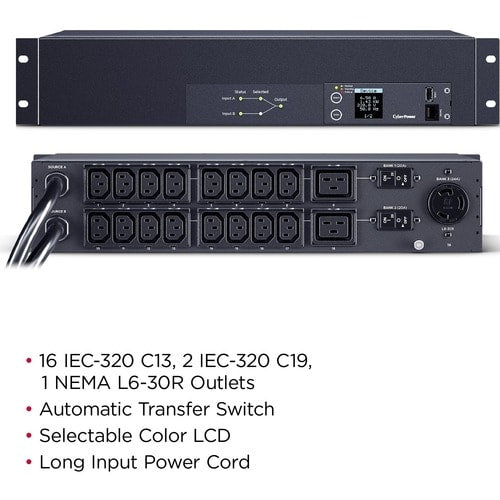

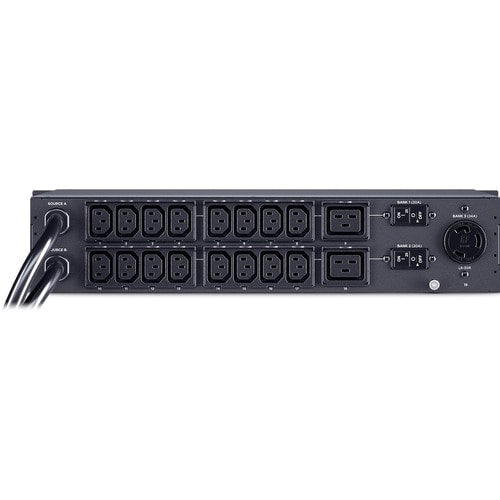

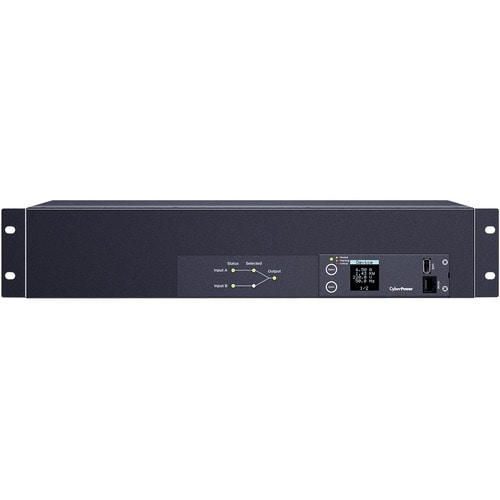

The PDU24007 supports inputs between 200-240V and includes (16) IEC C13, (2) IEC C19, and (1) NEMA L6-30R outlets. Dual NEMA L6-30P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24007 is protected by a three-year limited warranty.

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Miscellaneous
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Power Description
Input Voltage230 V AC
Output Voltage230 V AC
Input Current30 A
Input Voltage Range200 V AC - 240 V AC
Output Voltage Range200 V AC - 240 V AC
General Information
Product TypePDU
Manufacturer Part NumberPDU24007
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
ManufacturerCyberPower Systems, Inc
Product ModelPDU24007
Product NameMetered ATS PDU PDU24007 19-Outlets PDU
Product SeriesMetered ATS PDU
Brand NameCyberPower
Physical Characteristics
Weight (Approximate)15.41 lb (6990 g)
Mount TypeRack-mountable
Rack Height2U

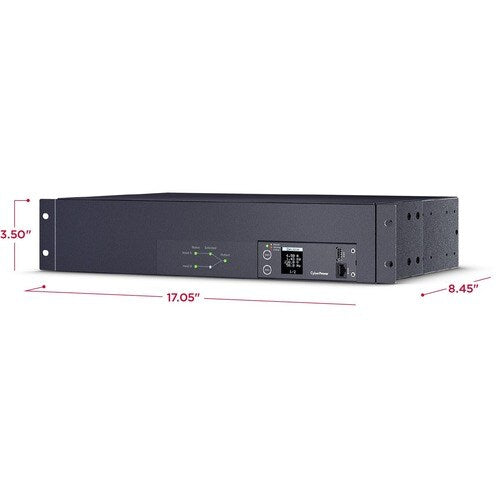

Height3.50" (88.90 mm)
Width17.05" (433.10 mm)
Depth8.45" (214.60 mm)
Mounting OrientationHorizontal
Product ColorBlack
Color FamilyBlack
Technical Information
Protection TypeOverload Protection
Plug/Connector TypeNEMA L6-30P
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
IEC 60320 C19
NEMA L6-30R
PDU TypeMetered
Receptacle Detail1 x NEMA L6-30R
16 x IEC 60320 C13
2 x IEC 60320 C19
Plug/Connector Detail2 x NEMA L6-30P

Product compare

Product warranty

Standard manufacturer warranty as applicable

Return policy

15 days return in original condition.

Price guarantee

!00% we are always lower than market price.
