About the product

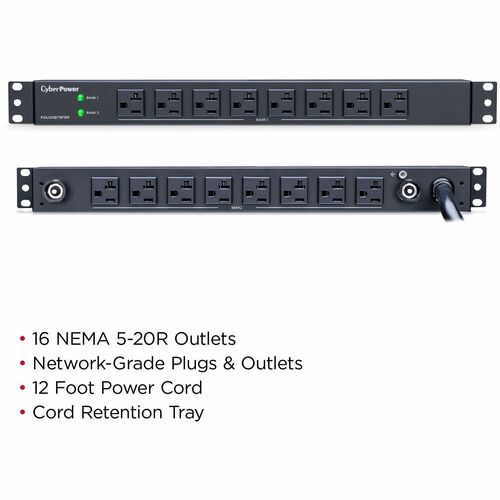

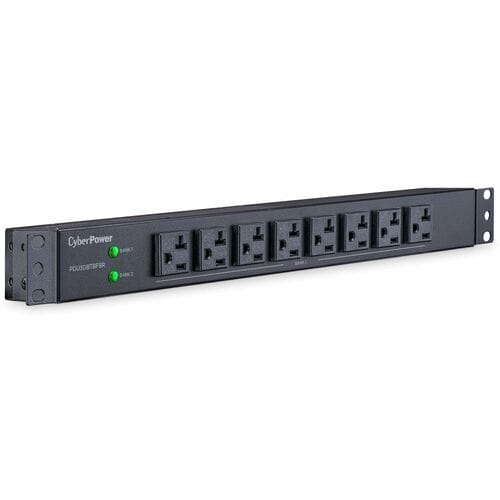

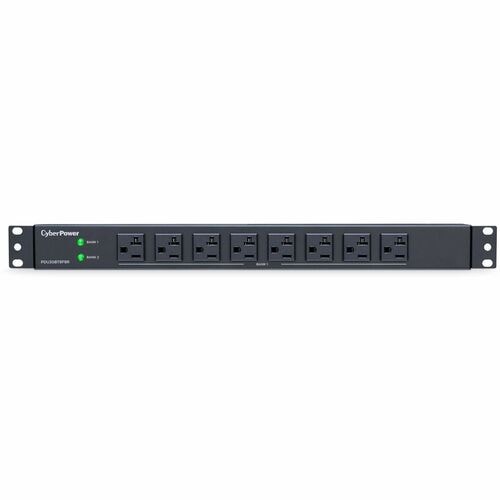

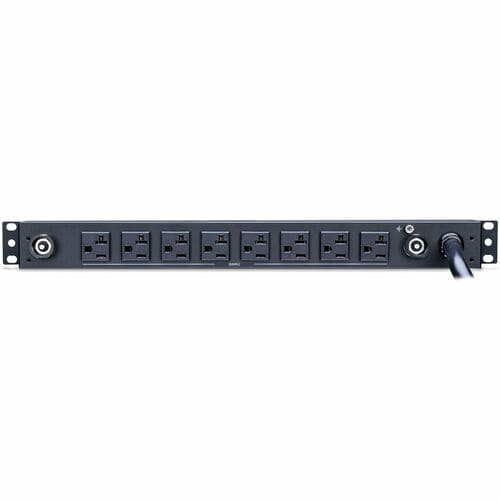

The CyberPower PDU30BT8F8R, a 16-outlet (8 front, 8 rear) rackmount basic power distribution unit (PDU), provides 100-125V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BT8F8R has rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
- Basic PDU
- 16 NEMA 5-20R output receptacles (8 Front/8 Rear)
- 120V AC - 50/60Hz - 30-amp electrical capacity with circuit breaker
- 1U Rack Mount - Rugged industrial-grade metal housing
Technical Specifications
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Miscellaneous | |
| Application/Usage | Network Device |
| Server | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| 100 V AC | |
| Input Current | 30 A |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Frequency | 60 Hz |
| Output Voltage Range | 100 V AC - 125 V AC |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Basic |
| Locking Receptacles | Cord Retention Tray |
| Receptacle Detail | 16 x NEMA 5-20R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU30BT8F8R |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU30BT8F8R |
| Product Name | Basic PDU30BT8F8R 16-Outlets PDU |
| Product Series | Basic PDU |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 6 lb (2721.55 g) |
| Form Factor | Horizontal/Vertical |
| Mount Type | Rack-mountable |
| Wall-mountable | |
| Rack Height | 1U |
| Cord Length | 12 ft (3.66 m) |

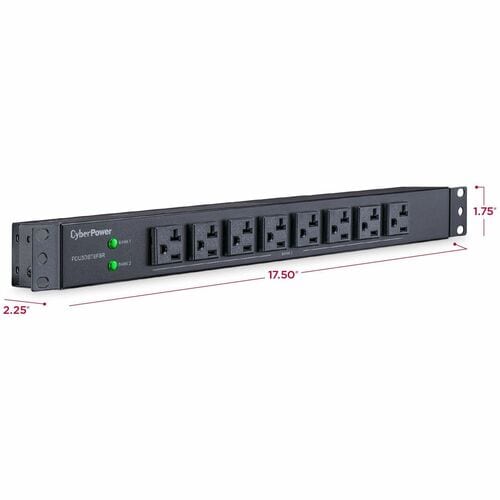

| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2.25" (57.15 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
