About the product

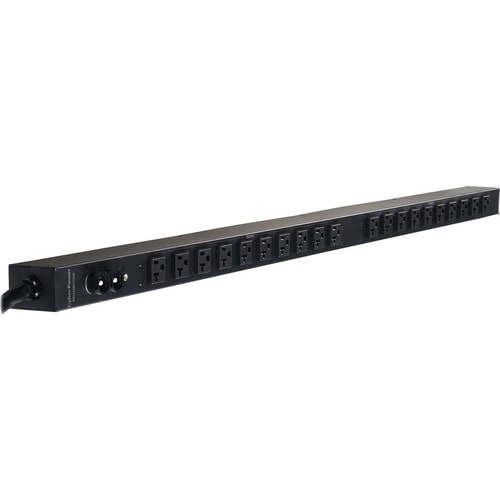

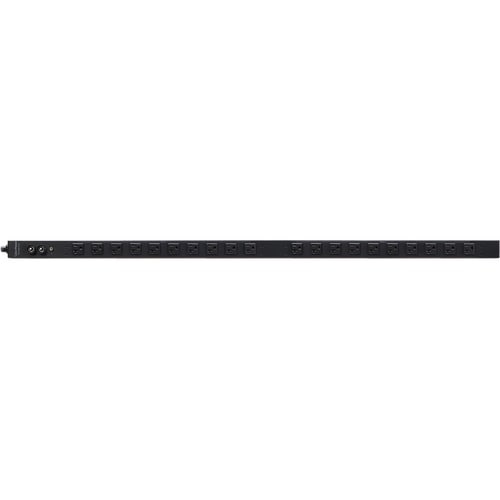

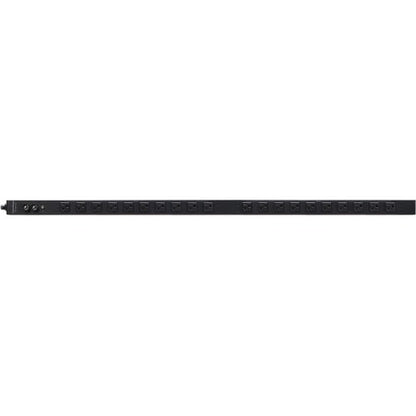

The CyberPower 20-outlet (20 Front) 0U vertical rack mount basic power distribution unit (PDU30BVT20F) provides 120V 30A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- Basic PDU
- 20 NEMA 5-20R (20 Front) output receptacles
- 120V AC - 50/60Hz - 30-amp electrical capacity with circuit breaker
- 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
Technical Specifications
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 9.11 lb (4132.23 g) |
| Mount Type | Rack-mountable |
| Wall-mountable | |
| Mounting Orientation | Horizontal/Vertical |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Basic |
| Receptacle Detail | 20 x NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU30BVT20F |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU30BVT20F |
| Product Name | Basic PDU30BVT20F 20-Outlets PDU |
| Brand Name | CyberPower |
