About the product

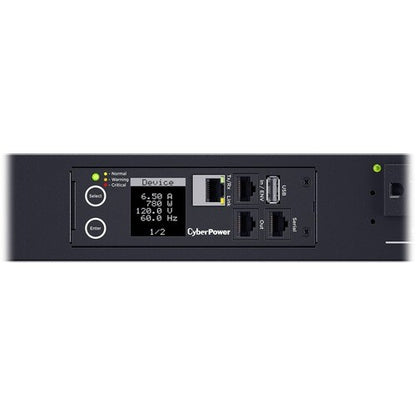

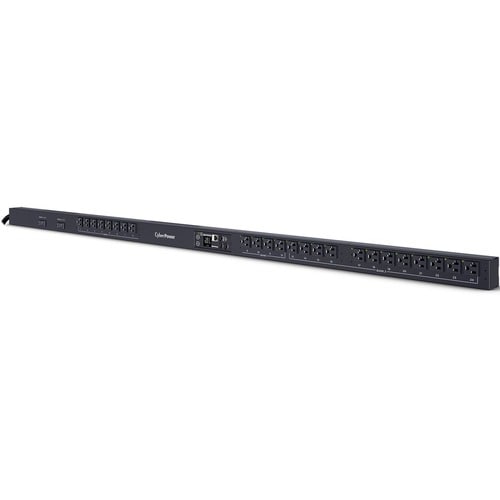

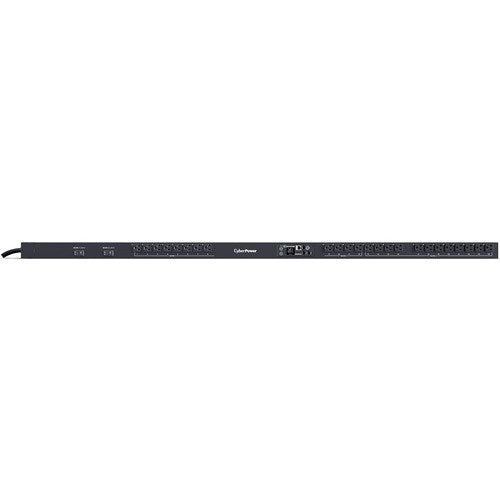

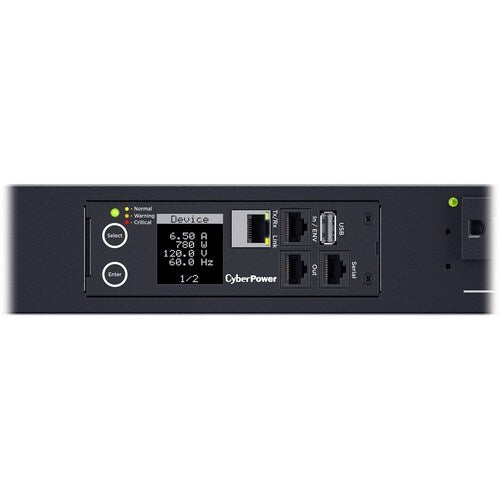

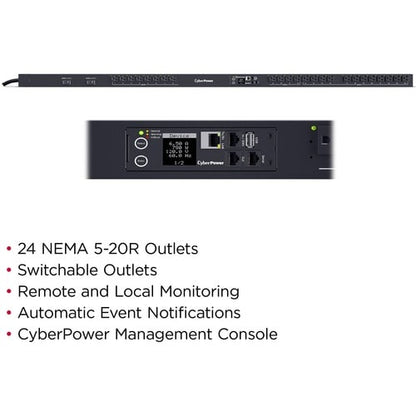

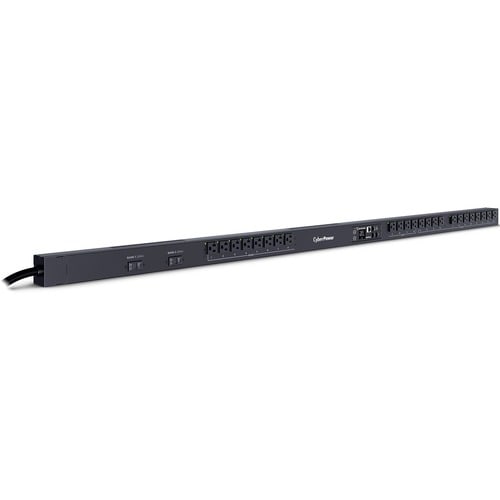

The CyberPower PDU41102, a 24-outlet (front), 0U rackmount switched power distribution unit (PDU), provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or cycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41102 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Power Description | |
| Output Voltage | 120 V AC |
| Input Current | 30 A |
| Output Voltage Range | 100 V AC - 120 V AC |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU41102 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Name | 24-Outlets PDU |
| Product Series | Switched PDU |
| Brand Name | CyberPower |
| Technical Information | |

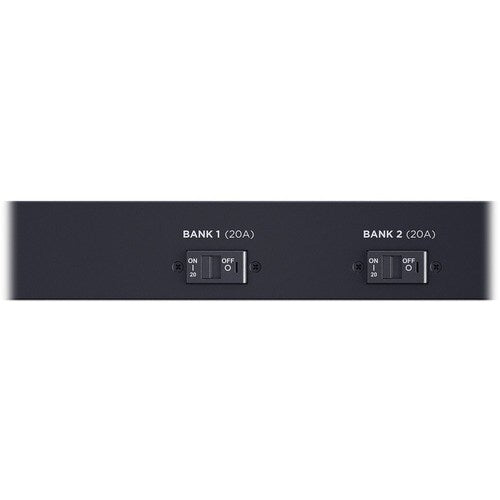

| Protection Type | Overload Protection |

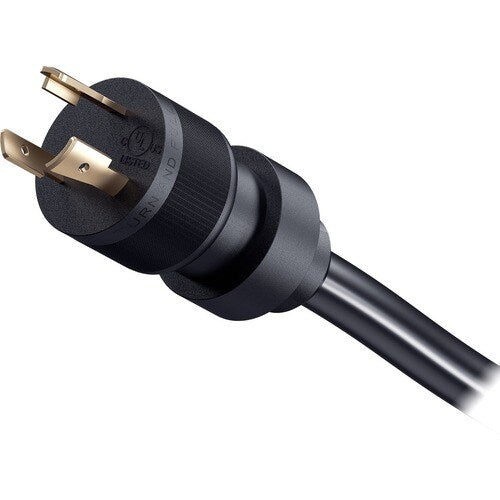

| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| Design | Modular |
| PDU Type | Switched |
| Environmental Sensors | Temperature/Humidity |
| Locking Receptacles | Cord Retention Tray |
| Receptacle Detail | 24 x NEMA 5-20R |
| Physical Characteristics | |
| Weight (Approximate) | 17.20 lb (7801.79 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |

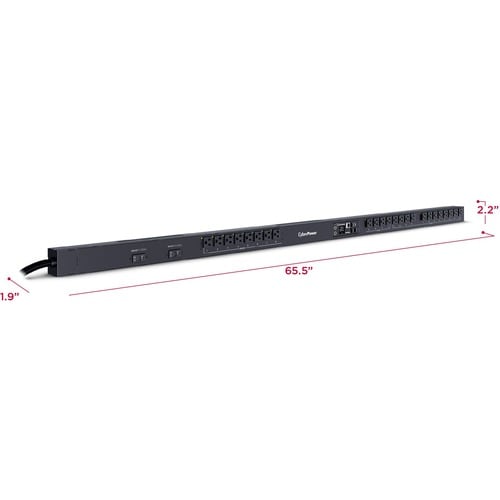

| Height | 65.50" (1663.70 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 1.90" (48.26 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
