About the product
Tripp Lite Metered PDU / Power Distribution Unit with Isobar Surge Suppression offers real-time local reporting of load level in amps, plus premium ISOBAR network-grade AC surge and noise suppression. Digital display continuously reports PDU output current to prevent circuit overloads as additional equipment is added. Set of 3 front-panel LEDs provide notification of wiring fault, protection present and line OK status. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered single phase 15A 120V PDU with Isobar Surge Suppression
- 1U Horizontal rackmount, Digital current meter
- 3840 Joule suppression rating, Diagnostic LEDs

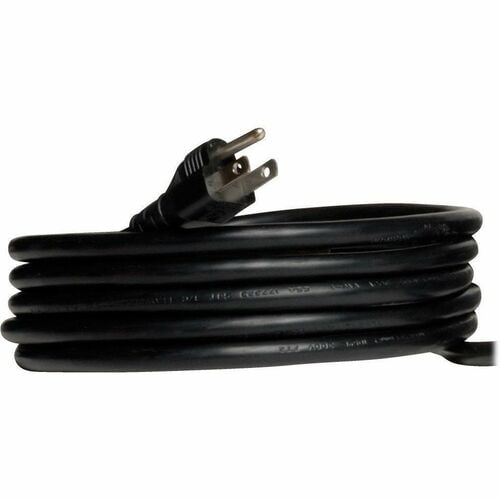

- NEMA 5-15P input; 15ft / 4.5m line cord

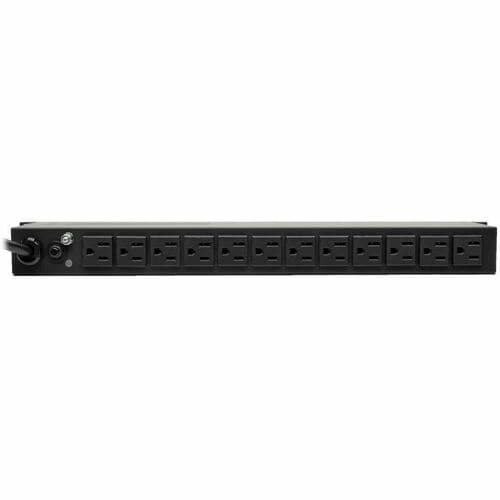

- 14 NEMA 5-15R outlets (2 front / 12 rear)

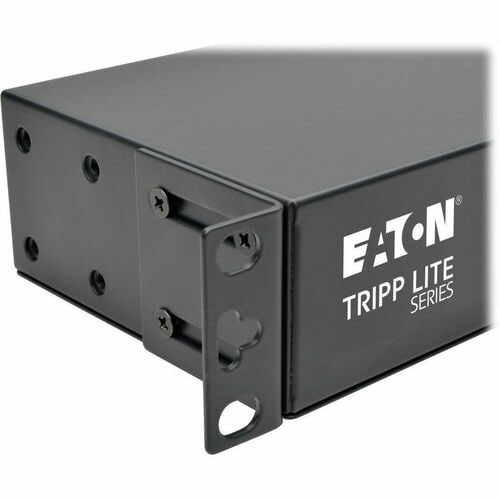

- Reversible housing; 4.5in /11.4cm depth
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
| Power Rating (Watt) | 1.44 kW |
| Technical Information | |
| Protection Type | Overload Protection |
| Surge Protection | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 14 x NEMA 5-15R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH15-ISO |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH15-ISO |
| Product Name | Metered PDUMH15-ISO 14-Outlets PDU |
| Product Line | Metered |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 4.60 lb (2086.52 g) |
| Mount Type | Rack-mountable |
| Wall-mountable | |
| Rack Height | 1U |
| Placement | Under-counter |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 4.50" (114.30 mm) |
| Mounting Orientation | Vertical |
