About the product
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

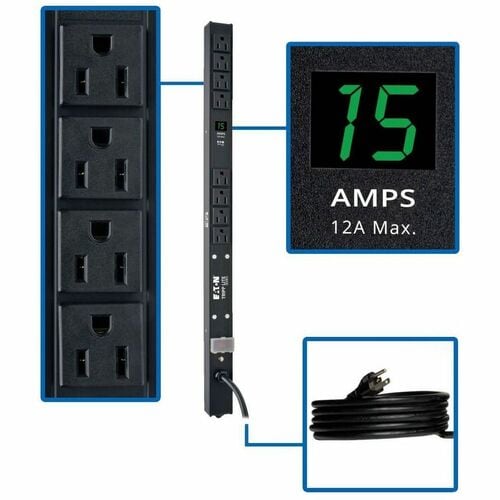

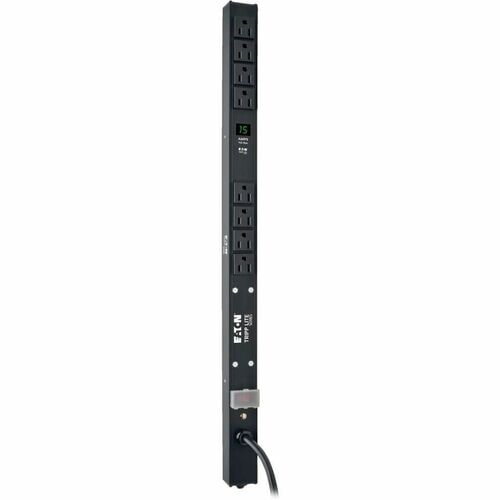

- Metered single phase 15A 120V 0U 24in / 61cm vertical rackmount PDU

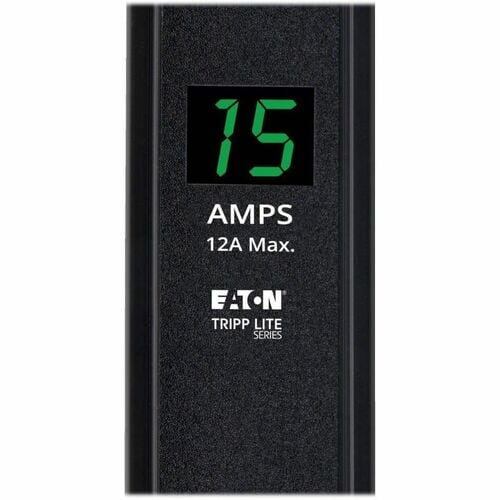

- Two-digit current meter reports output current in amps

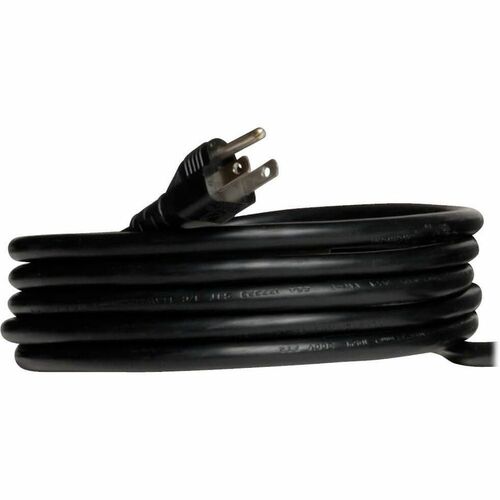

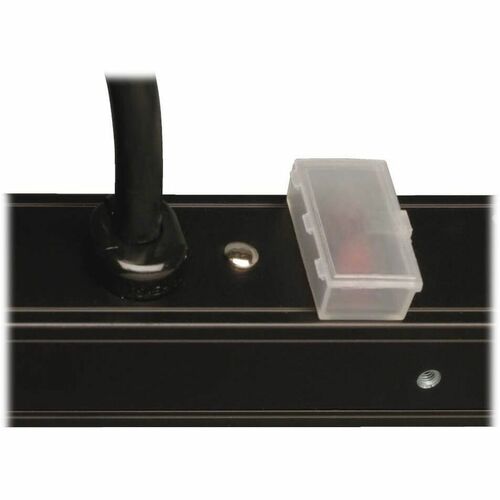

- Attached 15ft / 4.5m cord with NEMA 5-15P input plug

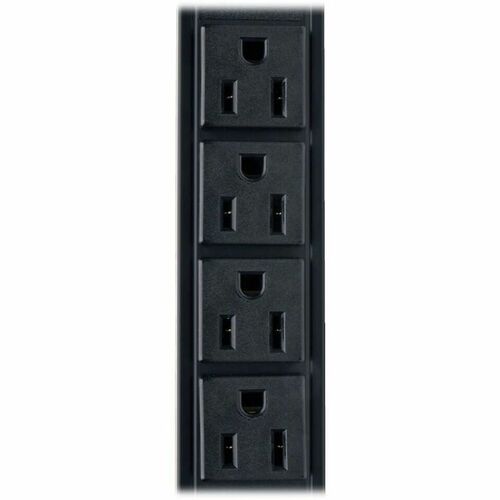

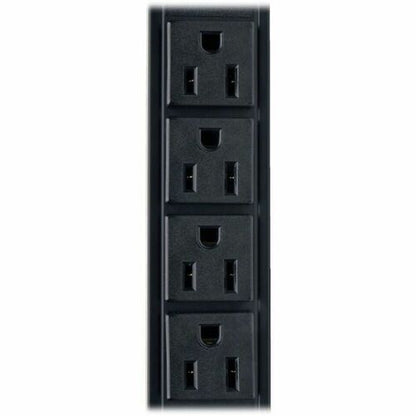

- 8 NEMA 5-15R outlets

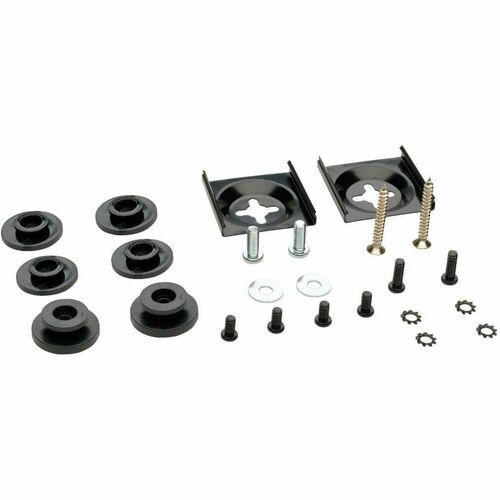

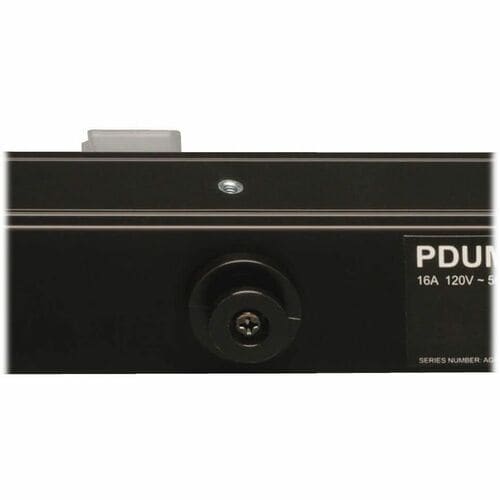

- Toolless button mount and bolt-down bracket installation hardware included
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 12 A |
| Input Voltage Range | 100 V AC - 127 V AC |
| Power Rating (Watt) | 1.52 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV15-24 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV15-24 |
| Product Name | Metered PDUMV15-24 8-Outlets PDU |
| Product Line | Metered |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 2.65 lb (1202.02 g) |
| Mount Type | Wall-mountable |
| Rack-mountable | |
| Rack Height | 0U |
| Height | 24" (609.60 mm) |
| Width | 1.75" (44.45 mm) |
| Depth | 1.25" (31.75 mm) |
| Mounting Orientation | Vertical |
