About the product

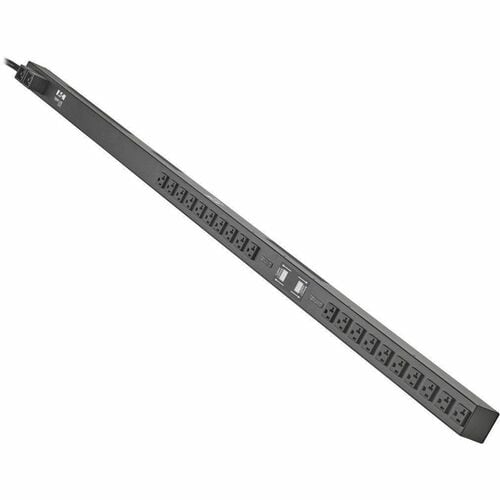

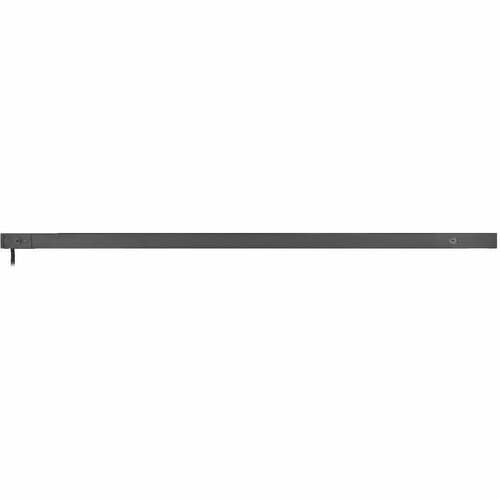

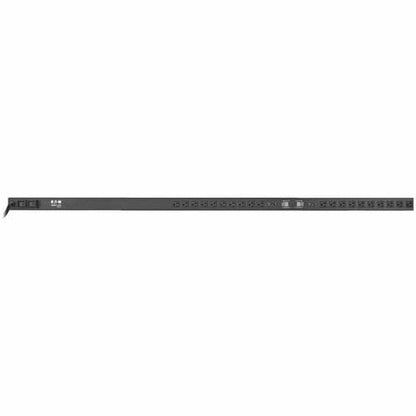

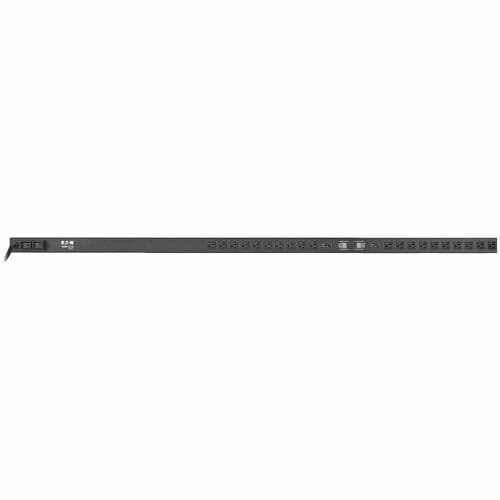

Single-Phase 120V PDU Distributes and Monitors Network-Grade Power to Multiple Loads
This local metered PDU is an ideal unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUMV30-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 10-foot (3.1-meter) cord with L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
- A device fitted with multiple outputs for the distribution of electric power
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 24 A |
| Power Rating (Watt) | 2.88 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV30-ISO |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV30-ISO |
| Product Name | PDUMV30-ISO PDU |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Protection Type | Overload Protection |
| Surge Protection | |
| Noise | |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15/20R |
| PDU Type | Metered |
| Physical Characteristics | |
| Weight (Approximate) | 13.96 lb (6332.15 g) |
| Form Factor | Rack |
| Mount Type | Wall-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.17" (55.12 mm) |
| Depth | 4.21" (106.93 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
