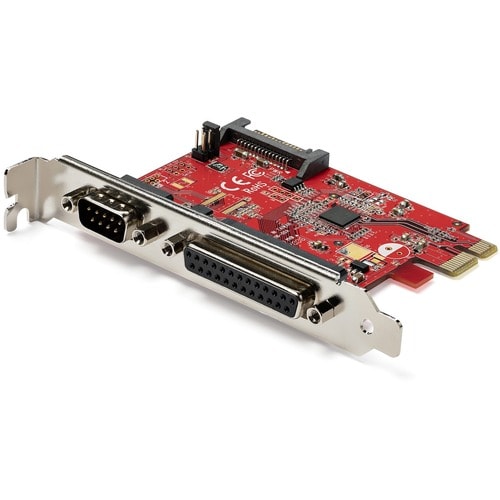

StarTech.com PCIe Card with Serial and Parallel Port, PCI

Name: StarTech.com PCIe Card with Serial and Parallel Port, PCI
Brand: Startech
SKU: 879A1XCM
Price: 69.66 CAD
Availability: InStock

$69.66 CAD

~~$80.11 CAD~~ $69.66 CAD

-13% OFF Ask for quote

Shipping calculated at checkout.

StarTech.com PCIe Card with Serial and Parallel Port, PCI Express Combo Expansion Adapter Card, 1xDB25 Parallel Port, 1x RS232 Serial Port - PCIe Card with Serial and Parallel Port - 1x DB25 parallel 1x RS232 Serial combo card - Up to 2.5Mbps (DB25)/up to 921.6Kbps (DB9) - SPP/Byte/ECP mode - Asix AX99100 - PCI-e Base 1.1/PCI Pwr Mgmt 1.2 - PCI Express 2.0 - Full-profile PCIe x1

VPN:PEX1S1P950SKU:879A1XCM UPC:65030891844

PCIe CARD WITH SERIAL & PARALLEL PORT: Using a x1 PCIe 2.0 slot, add a DB25 parallel & a DB9 RS232 port to your computer; Card installs in full/standard profile PCIe slot; Latest version of our popular PEX1S1P952
TECH SPECS: Parallel Speeds up to 2.5Mbps | Supports SPP/Byte/ECP modes | Compatible with IEEE 1284 | Asix AX99100 chip | RS232 speeds up to 921.6Kbps | 16C950 UART | 256 byte FIFO buffer
VERSATILE APPLICATIONS: PCIe expansion combo card adds LPT Printer & COM serial ports working with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

StarTech.com PCIe Card with Serial and Parallel Port, PCI

About the product

PCIe CARD WITH SERIAL & PARALLEL PORT: Using a x1 PCIe 2.0 slot, add a DB25 parallel & a DB9 RS232 port to your computer; Card installs in full/standard profile PCIe slot; Latest version of our popular PEX1S1P952

VERSATILE APPLICATIONS: PCIe expansion combo card adds LPT Printer & COM serial ports working with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope

WIDE COMPATABILITY: PCI Express RS232 serial/parallel adapter card is compliant with PCI-E Base Spec. Rev. 2 & PCI Power Mgmt 1.2; Windows (7 and up) Windows Server (2003 and up) and Linux (2.6.X and up); Auto IRQ & IO assignment; Supports IRQ Sharing

STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; These PCIe Parallel & Serial port controller card is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support

Technical Specifications

Technical Information
Host Interface	PCI Express 2.0 x1
Interfaces/Ports
Number of Serial Ports (External)	1
Number of Parallel Ports (External)	1
Physical Characteristics
Weight (Approximate)	2.15 oz (61 g)
Height	0.90" (22.86 mm)
Width	3.70" (93.98 mm)
Miscellaneous
Package Contents	1S1P Native PCI Express Serial Parallel Combo Card with 16C950 UART 1 x Full Profile Bracket 1 x Quick-Start Guide
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	Serial/Parallel Combo Adapter
Manufacturer Part Number	PEX1S1P950
Manufacturer Website Address	http://www.startech.com
Packaged Quantity	1
Manufacturer	StarTech.com
Product Name	1S1P Native PCI Express Serial Parallel Combo Card with 16C950 UART
Brand Name	StarTech.com
