StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9

Name: StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9
Brand: Startech
SKU: 776898DIS
Price: 279.99 CAD
Availability: InStock

$279.99 CAD

~~$313.99 CAD~~ $279.99 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

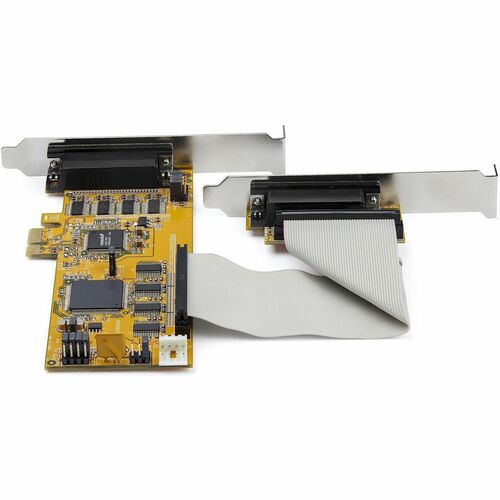

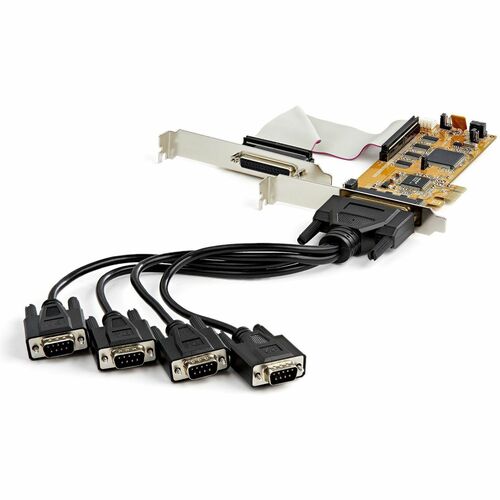

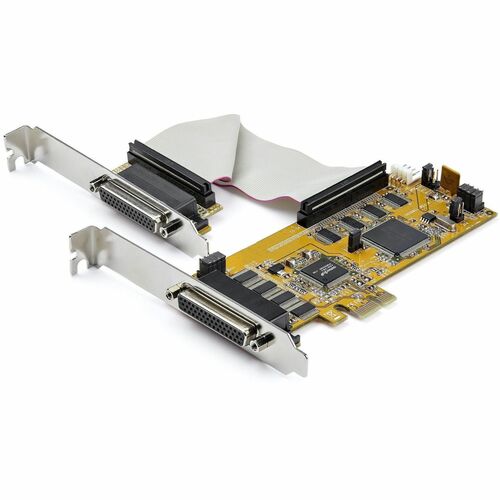

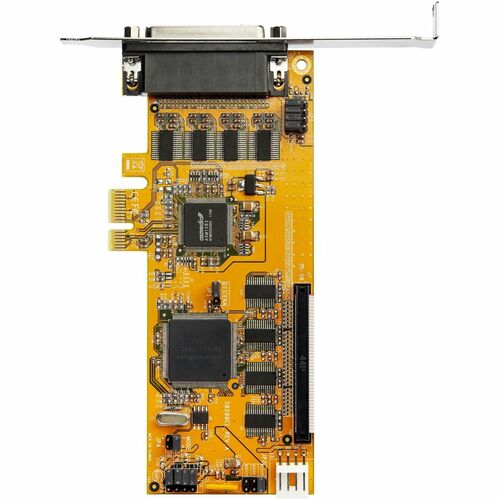

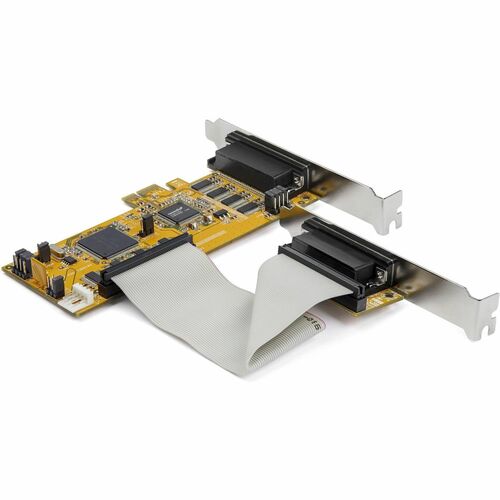

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 Controller 16C1050 UART, Low Profile, 15kV ESD, Windows Only, TAA - 8-Port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD; Low Profile - Bi-directional speed 921.6Kbps/port|256byte FIFO - Controller card; Pin 9 power 5v/12v, 3A max - 2xDB44 to DB9 cables w/Hex nuts - Windows only; Systembase SB16C1058PCI

VPNPEX8S1050LP SKU:776898DIS UPC:65030886574

8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer | An upgrade to our popular card PEX8S950LP
OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface

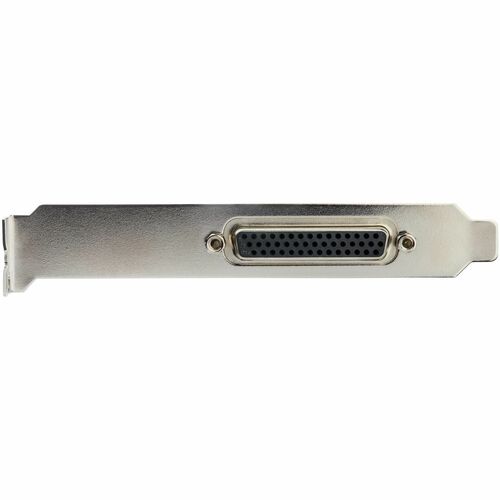

WINDOWS ONLY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For low profile desktop/servers

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9

About the product

8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer | An upgrade to our popular card PEX8S950LP

OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface

WINDOWS ONLY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For low profile desktop/servers

VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope

TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART Compat.; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; None/Even/Odd Parity Modes; 5/6/7/8 Data Bits; RS-232; 2x Low Profile Brackets installed (Full Profile Brackets incl.)

Technical Specifications

Interfaces/Ports
Ports Expandability	8 x DB-9 - Serie, vía cable
Number of Serial Ports	8
Technical Information
Host Interface	PCI Express x1
Platform Supported	PC
	Linux
Maximum Data Transfer Rate	921.40 kbit/s
Physical Characteristics
Weight (Approximate)	4.09 oz (116 g)
Form Factor	Plug-in Card
Height	2.40" (60.96 mm)
Width	0.90" (22.86 mm)
Product Color	Yellow
Color Family	Yellow
General Information
Product Type	Multiport Serial Adapter
Manufacturer Part Number	PEX8S1050LP
Manufacturer Website Address	http://www.startech.com
Packaged Quantity	1 Each
Manufacturer	StarTech.com
Product Name	8-Port PCI Express Serial Card with 16C1050 UART
Brand Name	StarTech.com
Miscellaneous

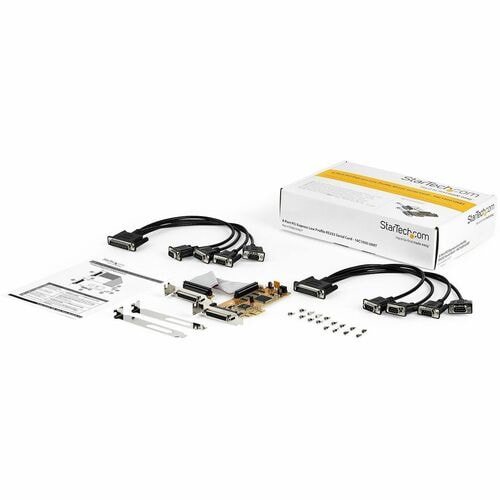

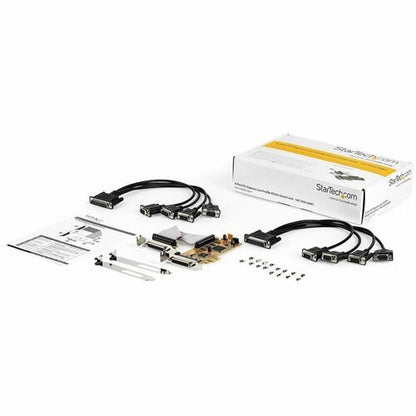

Package Contents	8-Port PCI Express Serial Card with 16C1050 UART 2 x DB44 to 4-Port SB9 Breakout Cables 2 x Full Profile Brackets 1 x Quick-Start Guide
Country of Origin	Taiwan
Environmentally Friendly	Yes
TAA Compliant	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
	Restriction of Hazardous Substances (RoHS)
	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
